Key Takeaways
- Kitchen cabinet toe kick dimensions affect standing comfort, finished counter height, appliance fit, and the visual quality of base cabinets.
- A standard starting point is useful, but the final plinth must be coordinated with the finished floor, cabinet box, countertop, appliances, and the people using the kitchen.
- Before production, buyers should approve toe kick height, recess depth, plinth material, leg adjustment range, and the service access shown on the shop drawing.
A cabinet can look correct in a rendering and still feel wrong after installation. The usual cause is hidden at floor level: the plinth is too shallow for comfortable standing, the finished floor was not included in the measurement, or the dishwasher opening no longer works after the countertop is fitted. These are not minor installation details. They affect how the kitchen performs every day.
Well-planned kitchen cabinet toe kick dimensions create room for a person’s feet while keeping base cabinets level, stable, and visually consistent. For export projects, the same detail also has to work with local flooring build-ups, appliance cut sheets, site tolerances, and the intended cabinet construction. The best decision is made on the technical drawing, not after the cabinets arrive.

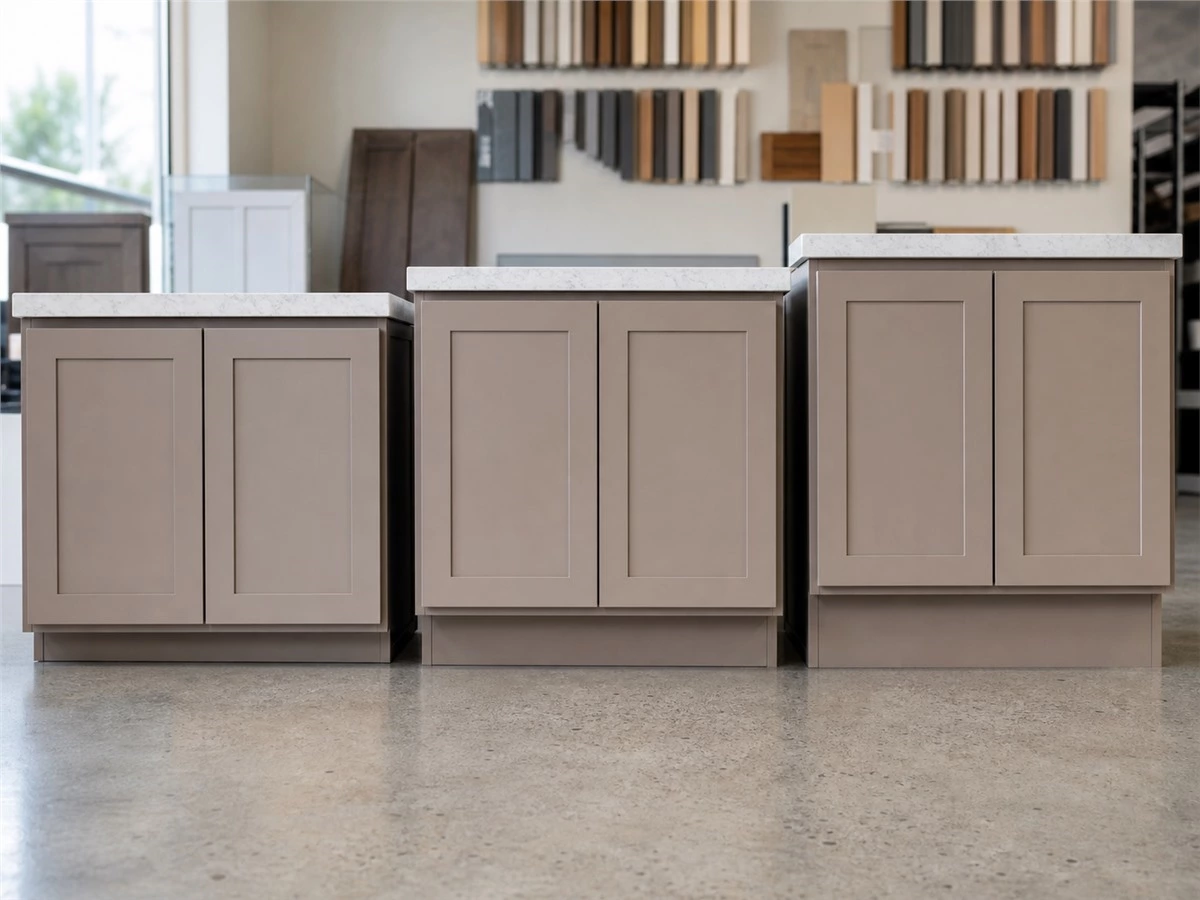

Start With a Standard Toe Kick Height, Then Check the Finished Kitchen Height
Many base cabinet systems start with a toe kick around 4 inches or 100 mm high. It is a familiar planning reference because it gives useful foot clearance while leaving room for the cabinet box and adjustable legs. It is not, however, a universal rule. A higher finished floor, a thicker stone top, a tall user, or a specific appliance opening can change the correct result.
The important calculation is the complete stack-up: finished floor level, toe kick, cabinet box, countertop thickness, and any under-counter support. A cabinet box can be manufactured accurately and still create an uncomfortable worktop if the floor or top was assumed incorrectly. This is especially common in renovation projects where tile, levelling compound, or timber flooring is added after the first site measurement.
Best for: Standard family kitchens and projects using conventional base cabinet construction.
Check: Finished floor level, countertop thickness, final worktop height, and appliance specification.
Risk: Raising or lowering the plinth after production can affect appliance openings, door alignment, and the countertop installation.

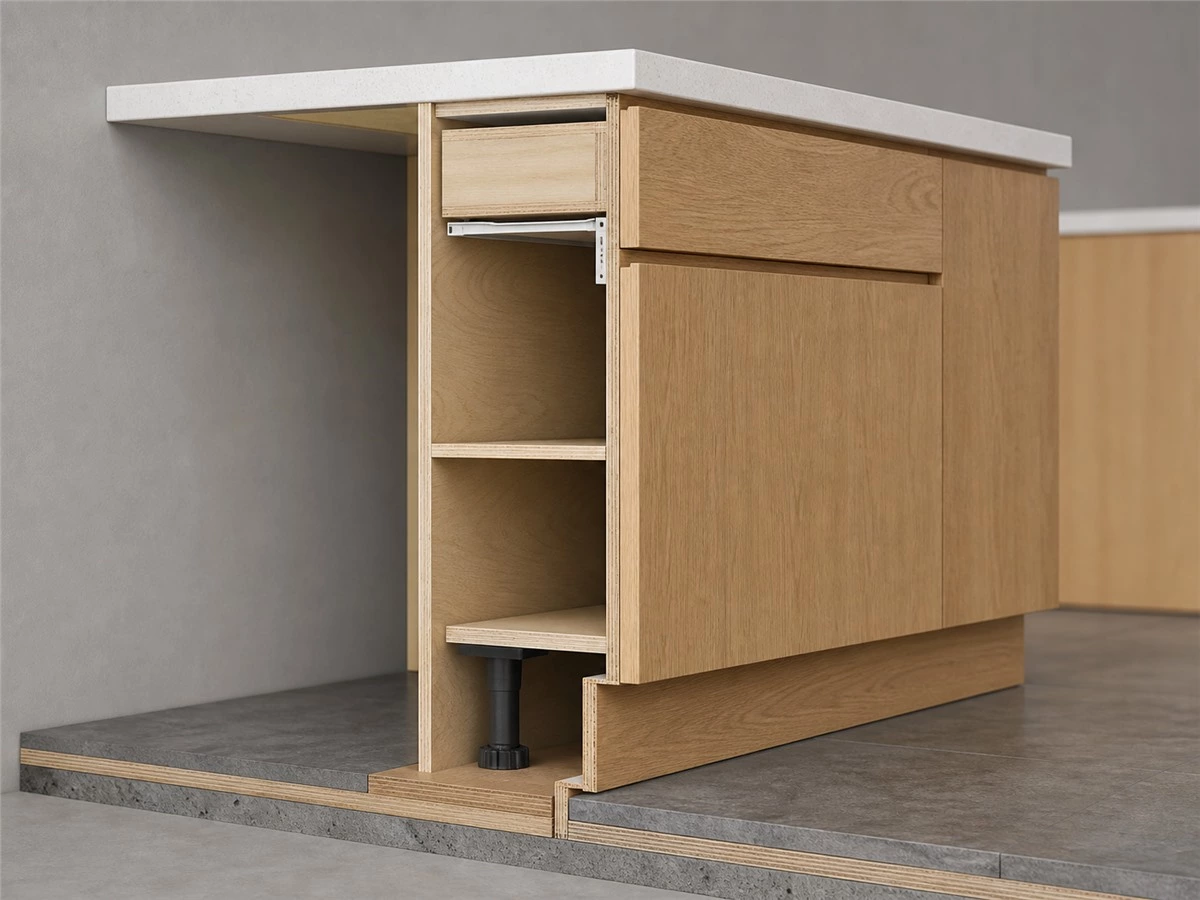

Set the Recess Depth for Real Standing Comfort
The depth of the recess determines whether a person can stand close to the worktop without repeatedly hitting the cabinet front with their toes. A typical custom kitchen starts with roughly 2–3 inches, or 50–75 mm, of setback. The final depth should be checked with the actual cabinet depth, countertop overhang, drawer fronts, and the intended user.
A shallow recess can appear neat on a drawing and save a little internal cabinet volume, but it often feels restrictive at a sink or preparation counter. A deeper recess gives more foot room and can make heavy base cabinets appear visually lighter. It must still leave enough support for the cabinet legs, plinth clips, and any side return panels.
When reviewing kitchen cabinet toe kick dimensions, do not look only at the front elevation. Ask for a side section showing the floor, cabinet leg, box depth, door front, countertop edge, and toe-space recess in one drawing. That view exposes conflicts that a 3D kitchen image can hide.
Best for: Long preparation counters, sink runs, and kitchens used frequently for cooking.
Check: Recess depth, countertop overhang, toe clearance, and cabinet-leg support position.
Risk: A plinth that is too shallow can make an otherwise premium kitchen uncomfortable to use every day.
Coordinate Toe Kick Length With the Full Cabinet Run
A toe kick is rarely a single short panel. In an L-shaped kitchen, island, or long wall run, it needs to continue cleanly across multiple base cabinets and return correctly at exposed ends. A continuous plinth line usually gives the kitchen a calmer, more built-in appearance, especially with wood grain, dark recessed finishes, or linear LED lighting.
The installer still needs access behind the plinth. Adjustable legs, plumbing connections, electrical routes, and floor-level corrections are easier to service when the plinth can be removed in practical sections. The best division points normally align with cabinet joints or end panels so they do not look accidental once installed.
Corner cabinets require extra coordination. The plinth return must follow the cabinet geometry without exposing raw board edges, creating an awkward seam, or blocking a pull-out mechanism. Review the corner elevation together with the internal hardware drawing rather than treating them as separate decisions.
Best for: L-shaped layouts, kitchen islands, and long runs of custom base cabinets.
Check: Joint positions, corner returns, end panels, plinth grain direction, and removable service sections.
Risk: Random plinth joints or fixed panels can create a poor visual finish and make later servicing difficult.

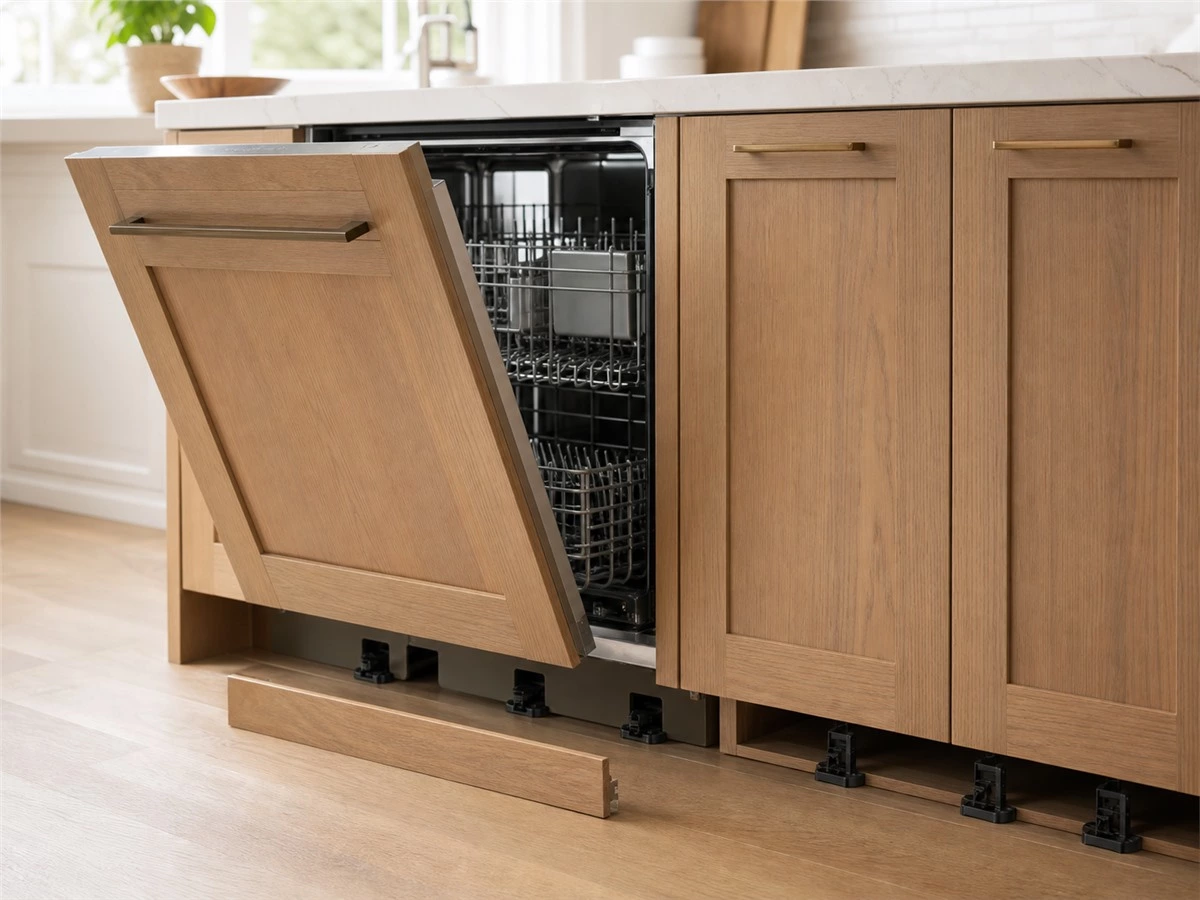

Protect Appliance Openings and Service Access
Dishwashers, under-counter refrigerators, built-in ovens, and pull-out waste systems all depend on accurate finished openings. The appliance manufacturer’s cut sheet must be checked against the finished floor and countertop level, not just the cabinet box height. A dishwasher that fits before flooring is installed may be trapped after the floor level rises.
Toe kicks also influence appliance service access. Decorative panels should not prevent removal of a dishwasher, obstruct ventilation, or make it impossible to reach an outlet and water connection. The same principle applies to a sink cabinet: a moisture-resistant plinth is helpful, but it is not a substitute for a plumbing route that can be inspected and repaired.
Use the kitchen cabinet installation guide together with appliance cut sheets before approving base cabinet modules. Installation is smoother when appliance dimensions, finished floor levels, and the removable plinth strategy are confirmed before production.
Best for: Kitchens with integrated appliances, dishwashers, or a detailed renovation scope.
Check: Appliance cut sheets, floor build-up, ventilation, door swing, and plinth removal method.
Risk: A small height mismatch can prevent appliance installation or make replacement unnecessarily expensive.

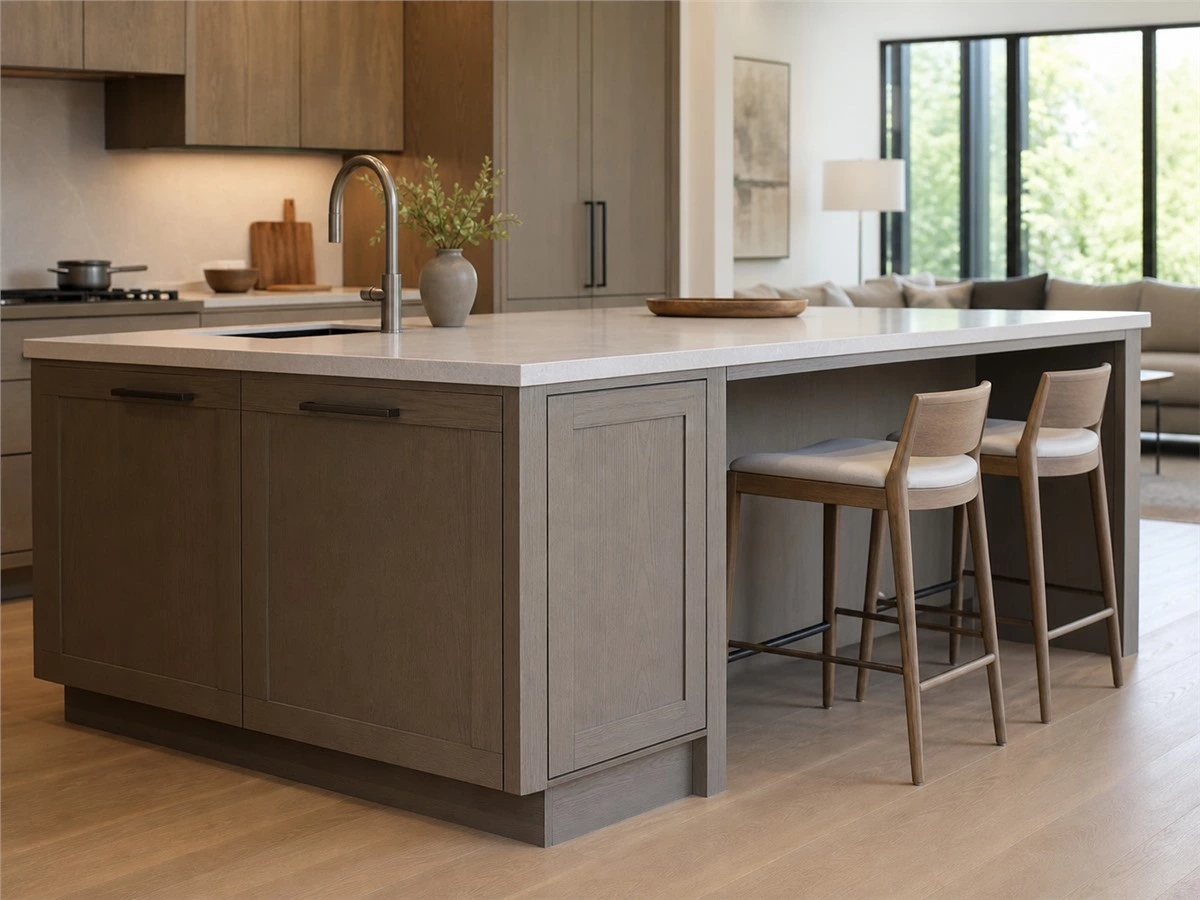

Treat Island Toe Kicks and Seating Clearance as Different Details
An island often has two distinct lower-edge requirements. The working side benefits from a standard toe space so the cook can stand close to drawers, the sink, or the prep surface. The seating side needs knee clearance under the countertop overhang, which is a different measurement and should not be confused with a normal toe kick.
When an island combines storage, seating, and a cooktop, the cabinet base, support panels, electrical routing, and stool positions should be coordinated together. A deeper seating overhang may need concealed steel support; a recessed plinth may need to stop or return before the seating zone. These details are easier to solve in the shop drawing than on site.
For broader island planning, compare the intended aisle and seating clearances with the kitchen island sizes, clearance, and seating guide. The toe space should improve movement, not compete with appliance doors or traffic routes.
Best for: Islands that combine meal preparation, storage, and dining.
Check: Working-side foot space, seating overhang, stool height, support panels, and aisle clearance.
Risk: Treating knee clearance like a standard plinth can make the island uncomfortable for both cooking and seating.
Select Materials and Lighting That Can Be Maintained
A plinth may match the door finish, contrast with the cabinet colour, use a dark recessed surface, or return the countertop material down to the floor. The visual choice should still reflect the conditions at floor level. Near a sink or dishwasher, sealed edges and moisture-resistant components matter more than a decorative finish alone.
Toe-kick lighting can add a floating effect and useful low-level night guidance. Plan the LED channel, cable route, driver location, and future access before cabinets are installed. A light strip without a service path can turn a simple replacement into unnecessary cabinet work. For a related lighting strategy, see our kitchen cabinet lighting ideas.
Best for: Modern kitchens, islands, and projects using ambient cabinet lighting.
Check: Moisture resistance, edge sealing, LED driver access, cable routes, and finish consistency.
Risk: Decorative lighting without maintenance access can be difficult to repair after installation.
Plan for Uneven Floors, Moisture Zones, and Regional Requirements
Adjustable cabinet legs make it possible to level base cabinets on floors that are not perfectly flat. The visible plinth should be measured and cut only after the cabinets are levelled, and the final floor condition is known. This is one reason why factory drawings should show both the nominal plinth size and the available adjustment range.
For United States projects using composite wood, buyers should request relevant panel documentation for EPA TSCA Title VI requirements and, where applicable, the California CARB composite wood products program. In Australia and New Zealand, HMR board can be appropriate for selected moisture-prone components, but it does not make an unsealed cabinet waterproof. In the Middle East, finish samples should be reviewed for actual heat and solar exposure. In Europe, confirm the project-required emission class and the test basis rather than relying only on an E0 marketing label.
The base cabinet sizes guide is useful for checking the relationship between cabinet height, depth, and the plinth. Buyers should also coordinate the toe space with the kitchen work triangle so appliance doors and standing positions remain practical.
Best for: Renovations, export projects, villas, and kitchens with uncertain floor conditions.
Check: Site levels, leg adjustment range, plumbing routes, flooring thickness, and material documentation.
Risk: Fixed plinth panels made from unverified site dimensions can leave visible gaps or require on-site rework.
Technical Checklist Before You Approve the Drawing
| Inspection Item | Acceptance Check | Buyer Evidence |
|---|---|---|
| Toe kick height | Matches the finished worktop height and floor level. | Approved section drawing. |
| Recess depth | Provides comfortable standing clearance without weakening base support. | Cabinet side section. |
| Appliance opening | Matches appliance cut sheet after flooring and countertop installation. | Appliance schedule. |
| Plinth service access | Removable sections allow adjustment and service where needed. | Elevation and installation plan. |
| Wet-zone protection | Cut edges and plinth materials are suitable for sink and dishwasher zones. | Material specification and sample. |

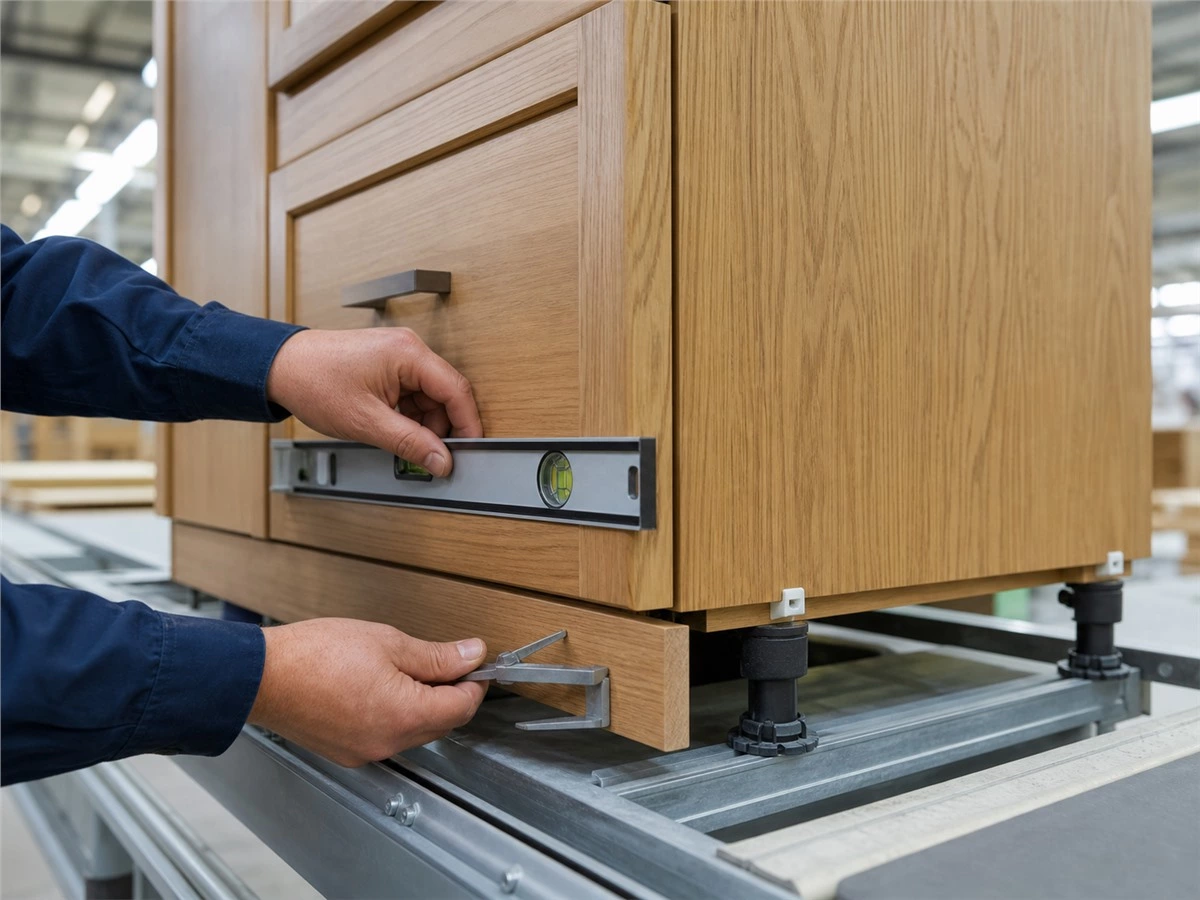

Factory sample evidence: Before final approval, request a photo or video showing the cabinet legs, plinth clips, removable panel, finished edge treatment, and level check on a completed base cabinet sample.
FAQ About Kitchen Cabinet Toe Kick Dimensions
What is the standard toe kick height for kitchen cabinets?
Many base cabinets use a toe kick around 4 inches or 100 mm high as a practical starting point. The correct height should still be confirmed against the finished floor, cabinet box, countertop thickness, and target worktop height. A custom project may need a different dimension when the users are taller, the floor build-up is thicker, or an appliance requires a precise opening.
How deep should a kitchen cabinet toe kick be?
A common setback is roughly 2–3 inches, or 50–75 mm, but the best recess is the one that lets a user stand comfortably at the counter while leaving reliable support for the cabinet base. Check the detail in the section, including countertop overhang and door fronts. A shallow recess can feel restrictive even when it looks neat on an elevation drawing.
Can a toe kick be higher than 4 inches?
Yes. A higher toe kick can be appropriate when a project needs a higher finished counter, has a thicker flooring build-up, or requires more leg adjustment for an uneven site. The trade-off is reduced vertical cabinet-box space. Buyers should decide as part of the full height calculation, rather than increasing the plinth alone after cabinet production has started.
Does a deeper toe kick reduce cabinet storage?
It can reduce some internal depth or alter the support position, but the effect is usually less important than daily comfort at a worktop. In a well-engineered cabinet, the toe space, leg location, drawer box, and plinth system are designed together. Avoid trying to gain a small amount of storage by making the recess so shallow that users cannot stand close to the cabinet.
Should a kitchen island have toe kicks on every side?
Not necessarily. The working side of an island usually benefits from toe clearance, while a seating side may need knee space under a countertop overhang instead. Decorative ends can use a recessed return, a flush panel, or a plinth depending on the design. The right solution depends on whether that side is used for cooking, storage, dining, or circulation.
Can toe-kick lighting be added after cabinet installation?
It is possible in some kitchens, but planning the lighting before installation is more reliable. The installer needs a cable route, a suitable LED channel, a protected connection, and access to the driver for future replacement. Retrofitting may require drilling or removing plinth panels. For a clean result, specify the lighting detail on the electrical and cabinet drawings together.
Final Recommendation
The right kitchen cabinet toe kick dimensions are not simply the most common measurements. They are the dimensions that match the finished floor, countertop height, appliance openings, cabinet construction, and the people who will use the kitchen. Approve the side section and installation checks before production, then keep the plinth removable where adjustment or service access is required.
Reviewed and Approved by ALLURE Technical Department.
