TV wall cabinet ventilation should be planned around the actual equipment, not added after the cabinet is installed. A television, soundbar, amplifier, router, game console, and streaming device can each create heat, need cable space, or require future access. Before custom media cabinetry moves into production, confirm the equipment list, manufacturer ventilation guidance, outlet positions, cable routes, cabinet openings, and the practical method for replacing or servicing devices. This guide helps homeowners, designers, and builders create a TV wall that looks integrated while remaining usable, ventilated, and maintainable.

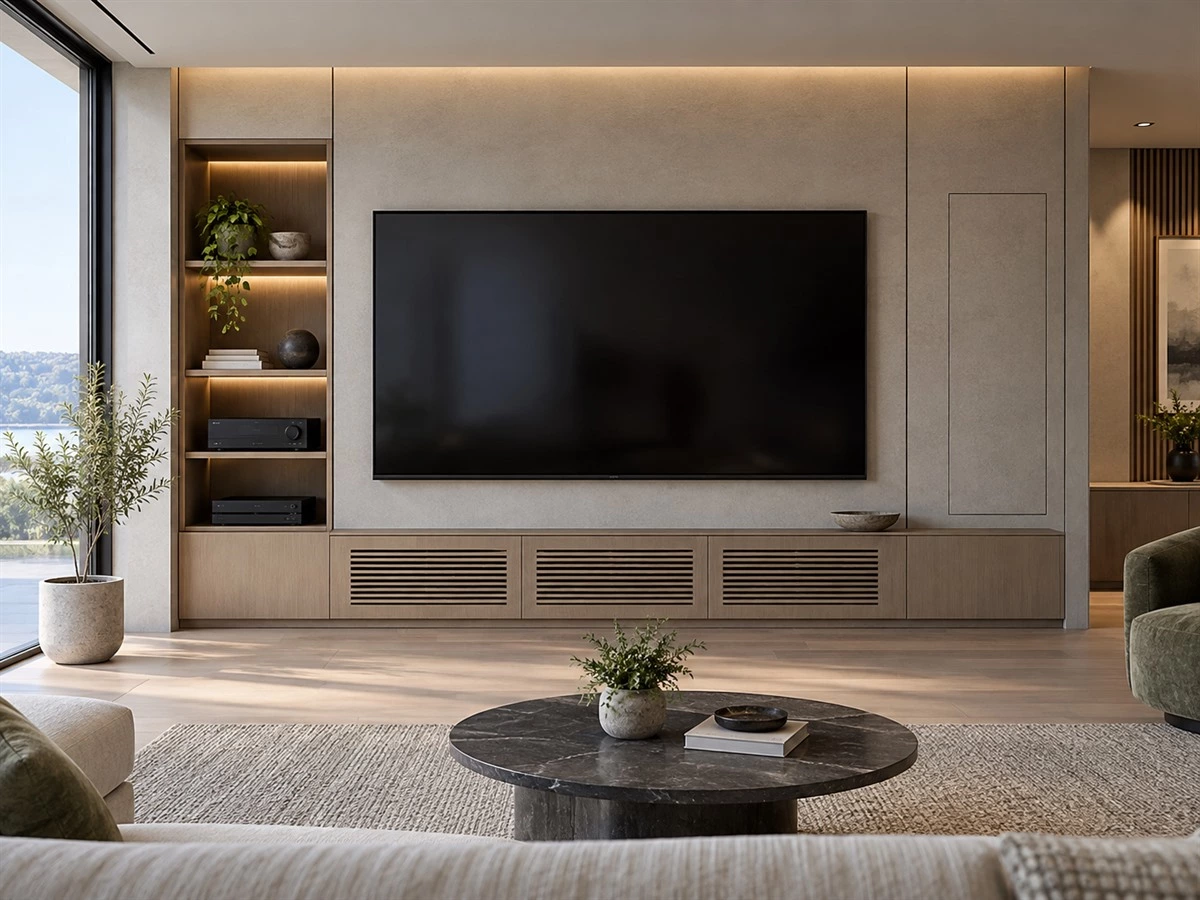

Why TV Wall Cabinet Ventilation Matters
A custom TV wall is often designed as a clean architectural feature: a screen appears to float against timber, stone, glass, or wall panels, while devices and cables disappear into cabinetry. That visual simplicity is valuable, but it can create practical problems when the equipment compartment is treated like ordinary storage.
Media equipment needs more than a place to sit. It needs enough room for its dimensions, cables, normal operation, and future maintenance. A cabinet can look complete on installation day, but become difficult to use if devices run inside a tightly closed compartment, cables cannot be traced, or a simple replacement requires removing fixed panels.

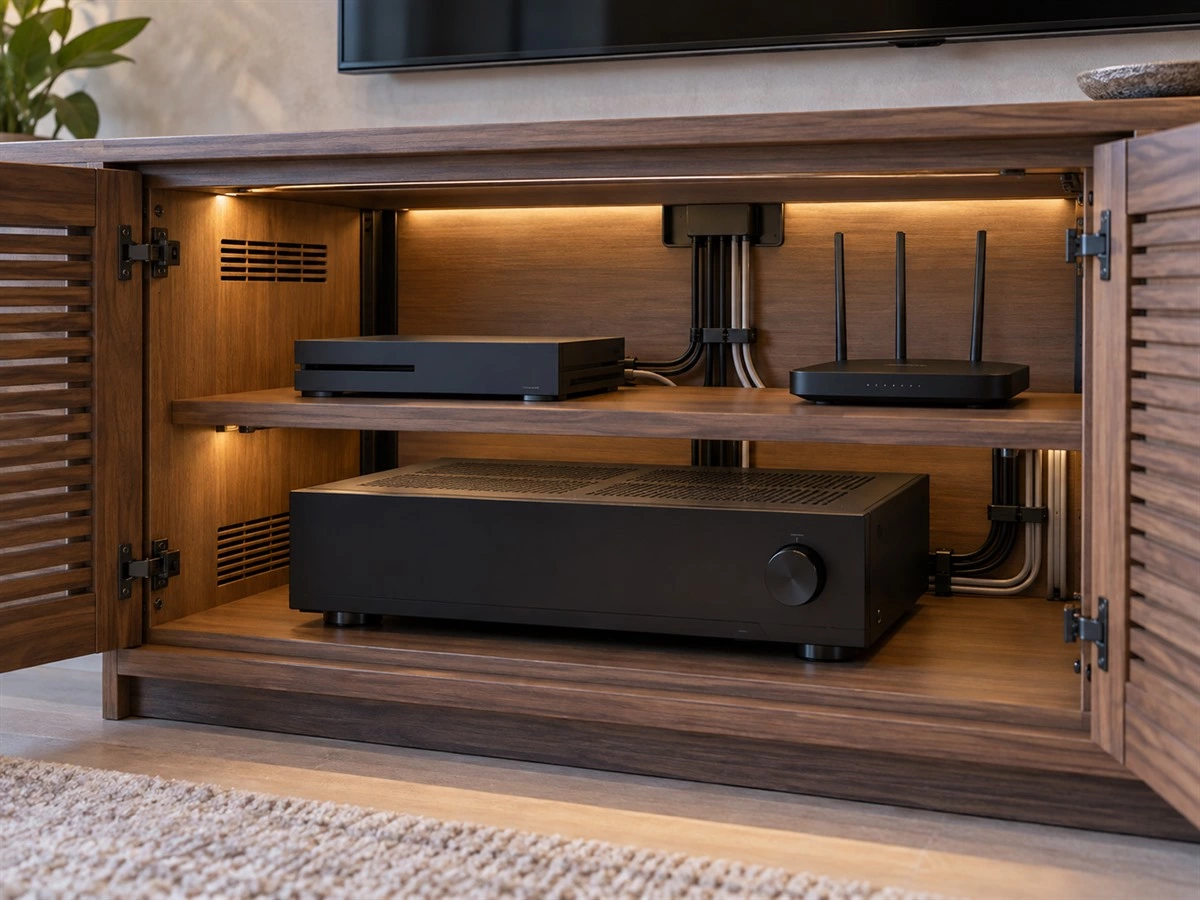

Heat can build up inside enclosed media cabinetry
Heat-producing devices may include amplifiers, AV receivers, gaming consoles, power supplies, routers, and network hubs. The exact amount of heat, required clearance, and ventilation method depend on the individual product. For this reason, final cabinet details should follow the relevant equipment manufacturer guidance rather than relying on one generic clearance rule.
Cabinet design can make the situation worse when equipment is enclosed by solid doors, packed tightly between shelves, or placed against a fixed back panel with no practical airflow route. Decorative panels do not remove the need to plan how air reaches and leaves the equipment zone.
Cable congestion can make a cabinet difficult to maintain
Power, HDMI, audio, network, and control cables can quickly become tangled when they are added after a cabinet is completed. Congested cable bundles can restrict access, complicate troubleshooting, and make it harder to remove a device safely. They can also leave insufficient space behind equipment for connections and sensible cable routing.
Service access is part of the design
A television wall should anticipate ordinary change. Devices may need resetting, upgrading, reconnecting, or replacing during the life of the home. Good joinery allows reasonable access to key connections, power points, and equipment compartments without requiring a technician to dismantle the feature wall.
List Every Device Before Planning the TV Wall
The TV wall drawing should be based on the actual equipment list, not an assumed standard arrangement. A cabinet that only allows for a television and one small streaming device will need a different layout from one supporting a soundbar, receiver, game console, router, smart-home hub, and multiple connected sources.
Collect the equipment information before approving cabinet dimensions, shelf locations, and back-panel details. This reduces late changes and gives the cabinetmaker, electrician, AV installer, and client a shared reference.
| Equipment | Information to Confirm Before Drawings | Cabinet Design Impact |
|---|---|---|
| Television | Screen size, mounting method, port location, and manufacturer guidance | TV recess size, mounting support, cable route, and access behind the screen |
| Soundbar | Width, depth, mounting method, and cable entry position | Open shelf, recess, or mounting detail below or near the television |
| AV receiver or amplifier | Dimensions, ventilation guidance, and rear connection locations | Equipment shelf size, airflow route, and service-access requirement |
| Game console | Operating orientation, ports, cable positions, and manufacturer guidance | Compartment size, cable path, and practical front or rear access |
| Router or network hub | Cable count, reset access, and network planning requirements | Ventilated compartment and network cable route |
| Power strip or protection device | Location, number of plugs, and service accessibility | Reachable power zone rather than an inaccessible concealed void |
Confirm the equipment model before production
Where possible, confirm actual device models before the final shop drawing is approved. Device depth, cable location, and ventilation requirements can vary widely. If an item has not yet been selected, a flexible and accessible cabinet zone is usually more practical than a recess designed around assumptions.
Separate the display from heat-producing equipment
The television may be wall-mounted while higher-heat equipment sits in a lower cabinet, side cabinet, or open shelf. This separation can simplify ventilation, cable organization, and servicing. It also helps the visible screen wall stay clean without forcing every device into a narrow cavity directly behind the television.

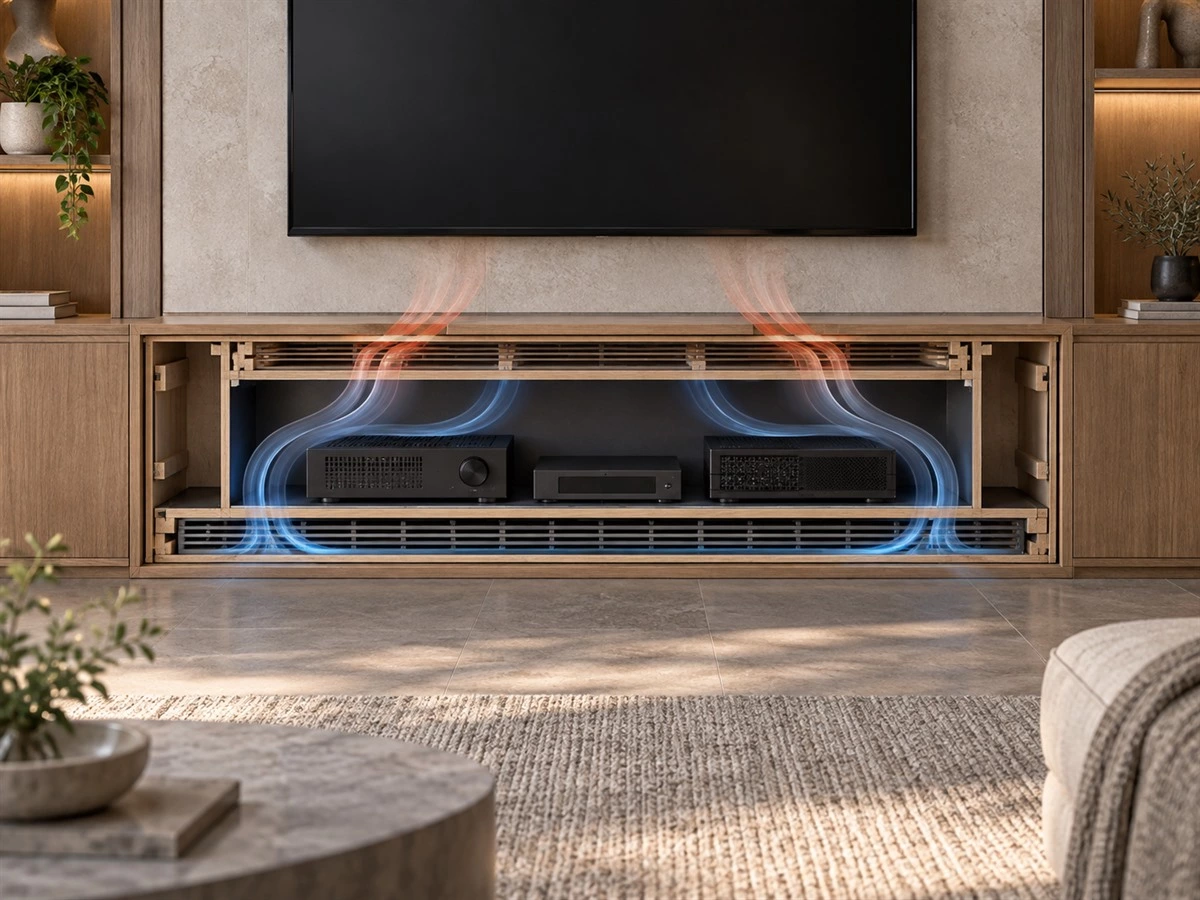

TV Wall Cabinet Ventilation: Plan the Whole Equipment Zone
Ventilation should be reviewed as a system. It is not simply one small hole in the cabinet. The final arrangement should consider the device location, surrounding cabinet surfaces, intended airflow route, stored items, rear-panel design, and access method.
Allow air to enter and leave the equipment zone
Air movement needs a practical path through the cabinet. Depending on the equipment and selected joinery design, this may involve open shelving, vented panels, perforated sections, carefully located openings, or another suitable approach. The purpose is to avoid trapping operating equipment inside a sealed decorative box.
The most suitable method depends on the actual device arrangement and manufacturer guidance. Cabinet details should therefore be confirmed after the equipment list is known, rather than copied from a visually similar TV wall project.
Avoid sealing devices inside a decorative recess
Solid back panels, tightly fitted doors, dense shelves, and decorative cladding can reduce access and airflow if they are not coordinated. The issue is not whether a wall looks minimal; it is whether the equipment can operate and be maintained within the space created.
Passive and active ventilation are different decisions
A lower-heat arrangement in an open or naturally ventilated compartment may be planned differently from an enclosed cabinet containing multiple heat-producing devices. Where equipment load, cabinet enclosure, or manufacturer guidance indicates that more airflow is required, active ventilation may need to be considered with the relevant specialists. This decision should not be made only from a cabinet elevation drawing.
Project note: Do not publish a fixed clearance figure as though it applies to every television, receiver, or game console. Confirm the actual device documentation, cabinet construction, and site conditions before finalizing the ventilation detail.

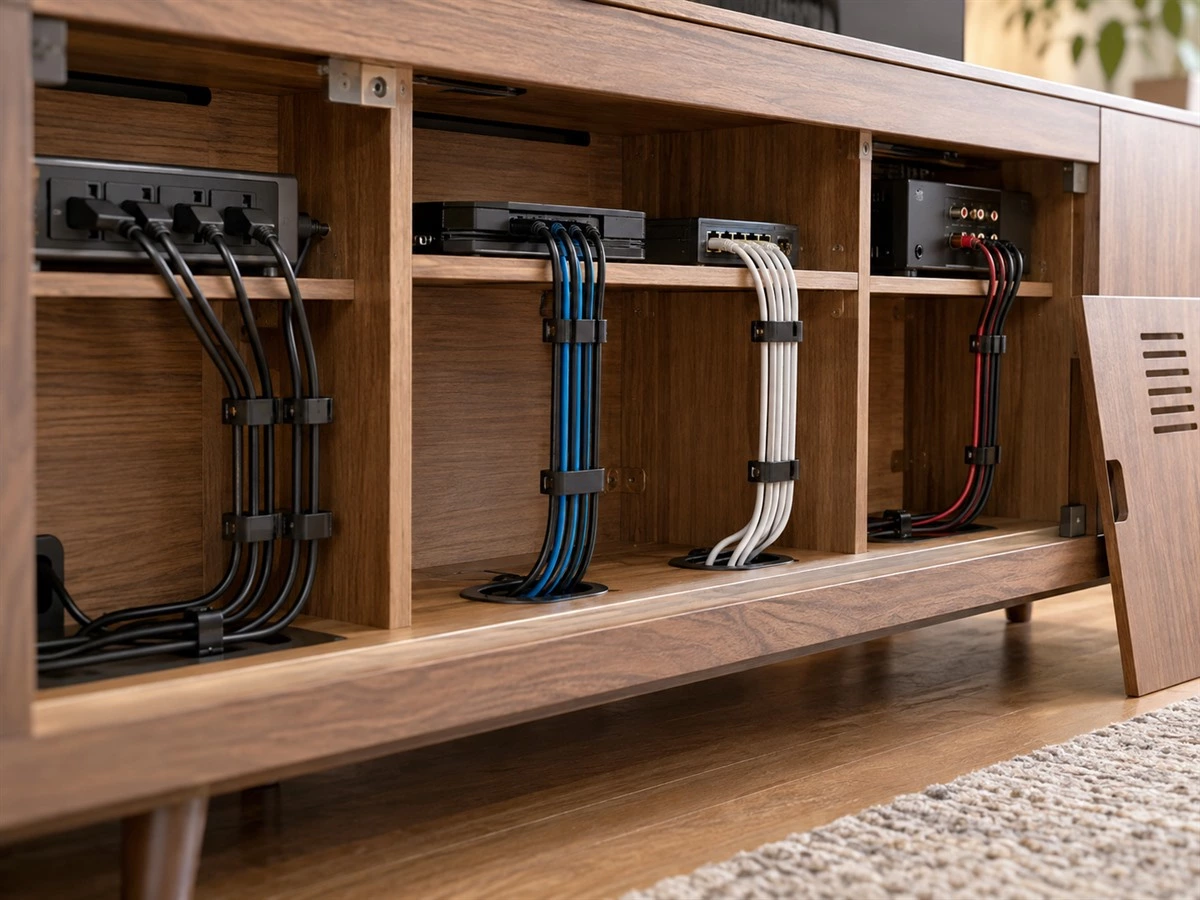

Cable Routing: Keep Power, Signal, and Network Cables Serviceable
Concealed cables should still be serviceable cables. The goal is not to make every connection impossible to see or reach; it is to organize cable paths so the finished TV wall looks calm while allowing practical future changes.
Plan cable routes before the back panel is fixed
Cable paths should appear on the shop drawings before production. Identify where cables enter the cabinet, where they pass between compartments, where they rise to the television, and where they connect to equipment. This helps avoid last-minute drilling through visible panels or overcrowding one small opening with every cable type.
Separate cable functions logically
A TV wall may need power cables, HDMI connections, network cables, audio cables, smart-home controls, and integrated cabinet-lighting cables. The final electrical and AV installation must follow applicable local requirements and should be completed by appropriately qualified professionals. From a cabinetry perspective, the key task is to provide enough planned space, access, and routing points for those services.
Avoid sharp bends and inaccessible bundles
Cables should not be forced into tight bends behind devices or trapped inside a narrow cavity. Allow enough room for connectors, cable direction changes, and the possibility of adding or replacing a cable later. A small amount of planned space can prevent a major maintenance problem after the wall is finished.
Use removable or serviceable panels where needed
A removable back panel, accessible side panel, or purpose-planned cable opening can make future servicing much easier. The choice depends on cabinet construction and device placement, but the access method should be agreed before production—not improvised during installation.

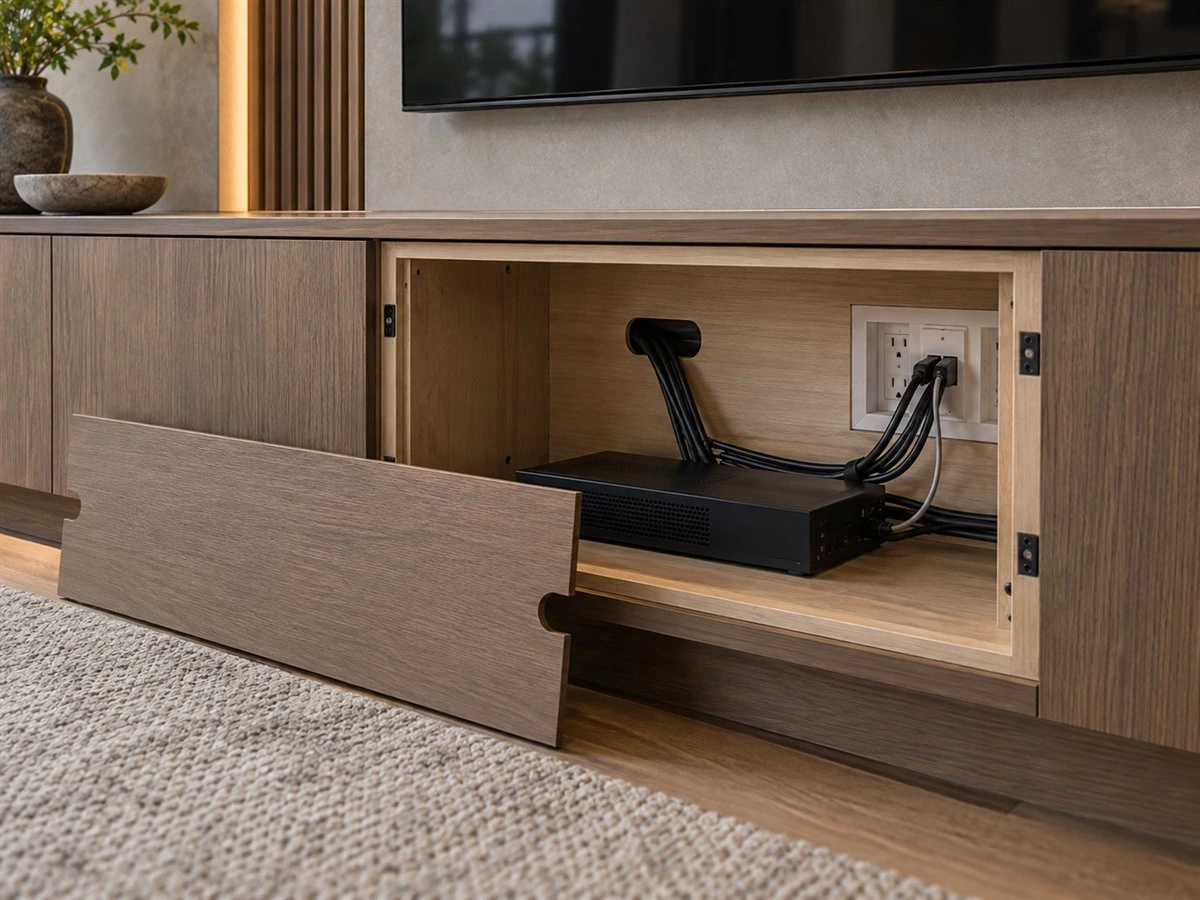

Back Panels, Cable Openings, and Service Access
The back panel is often treated as a minor construction detail, but in a media cabinet, it can determine whether the client can access power, cables, and devices after installation. A well-considered access strategy is one of the clearest differences between a decorative TV wall and a practical media wall.
Choose the access method during the drawing stage
Depending on the project, access may be provided through removable back panels, removable side panels, ventilated rear sections, purpose-designed cable openings, open shelves, or accessible lower cabinets. The best solution depends on the wall condition, device location, cabinet material, and the maintenance needs of the client.
Keep outlets and reset points reachable
Power outlets, network reset points, and key cable connections should not become permanently unreachable after cabinet installation. Consider how a person will reach the relevant area, whether a panel needs to be removed, and whether the equipment can be disconnected safely if necessary.
Do not conceal building services behind fixed cabinetry
Electrical panels, switches, utility access points, and existing inspection panels must be identified during the site survey. Cabinetry should be coordinated around any access requirements rather than covering them with fixed decorative panels.

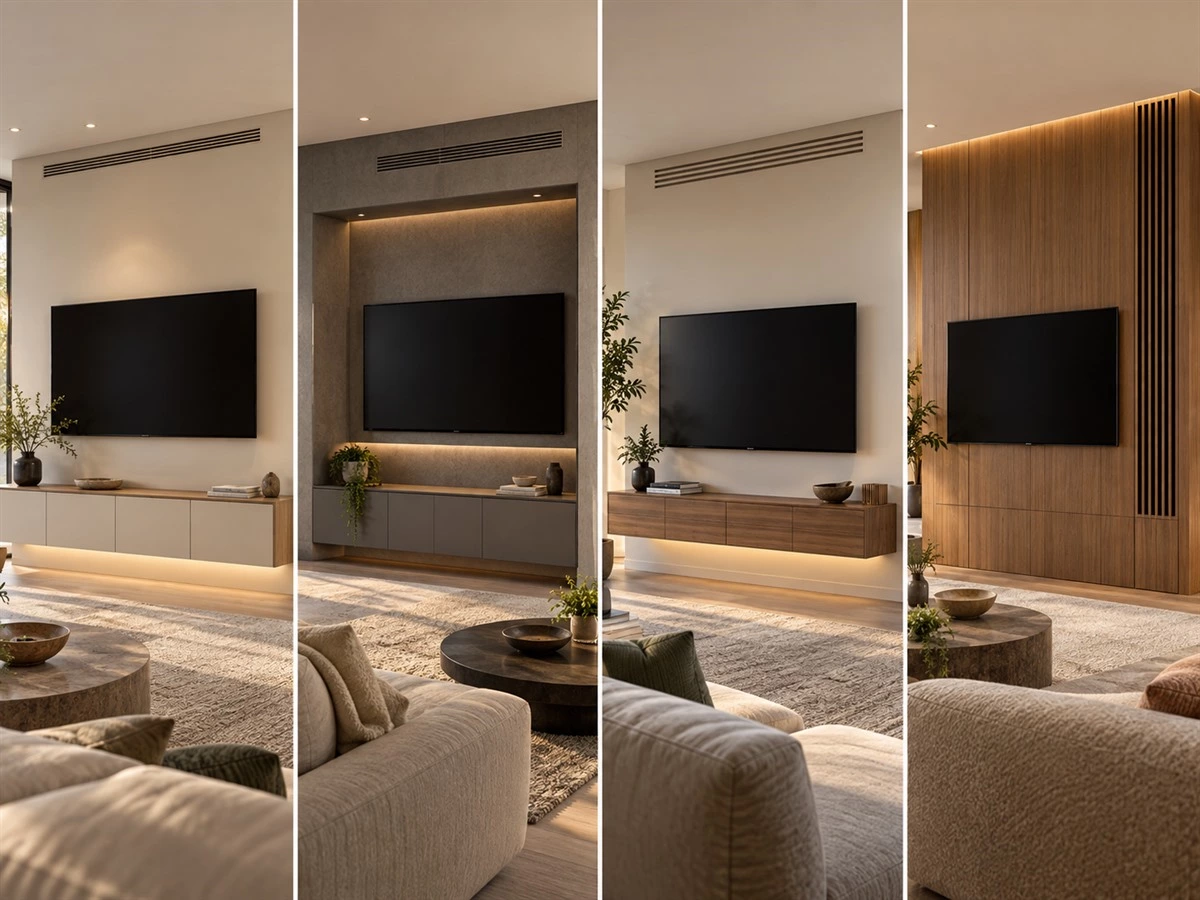

TV Wall Types and Their Ventilation Considerations
Flat wall-mounted television with lower media cabinetry
This layout keeps the television visually simple while placing receivers, consoles, and routers in a lower cabinet. It can work well when the lower equipment zone includes an appropriate ventilation path, organized cable entry, and practical access to devices.
Recessed television wall
A recessed television can create a more integrated appearance, but it requires closer coordination. The recess needs to account for mounting depth, cable space, screen access, and the relevant equipment guidance. The screen should not be treated as a decorative panel that can simply be boxed in from every side.
Floating TV cabinet
A floating cabinet can create visual lightness and leave more visible floor area. However, cable entry, wall fixing, device ventilation, and service access still need to be resolved. The cabinet’s appearance does not eliminate the need for a complete technical plan.
Full-height feature wall with cladding or paneling
Timber panels, stone, glass, and metal trims can create a strong feature wall, but they need to be coordinated with panel joints, vents, access panels, and cable routes. A finish should remain visually continuous where possible without preventing maintenance or equipment replacement.
For the broader spatial plan, see the related guide to TV wall cabinet dimensions. That article addresses screen clearance, storage depth, and cable-planning dimensions, while this guide focuses on ventilation and future access.
Coordinate Materials and Finishes With Ventilation Details
Ventilation openings, access panels, and cable routes should look intentional. When these details are considered early, they can be aligned with cabinet reveals, slatted panels, wall-panel joints, metal trims, and the overall material palette.
Timber finishes and slatted details
Slatted timber can provide visual texture and may be part of a broader TV wall design, but it should not be treated as a substitute for a complete airflow and access plan. Confirm what sits behind the finish, how the panel is fixed, and how servicing will be carried out if required.
Stone, glass, and metal details
Stone, glass, and metal trims can affect panel weight, joints, access-panel design, and future removal. These materials need to be coordinated with technical openings before the final shop drawing is approved, especially when the TV wall includes large-format panels or heavy decorative surfaces.
Maintain a consistent visual rhythm
Cabinet reveals, vent locations, panel joints, handles, and access points should be planned together. This allows the finished wall to look resolved rather than appearing to have technical openings added after the design was completed.

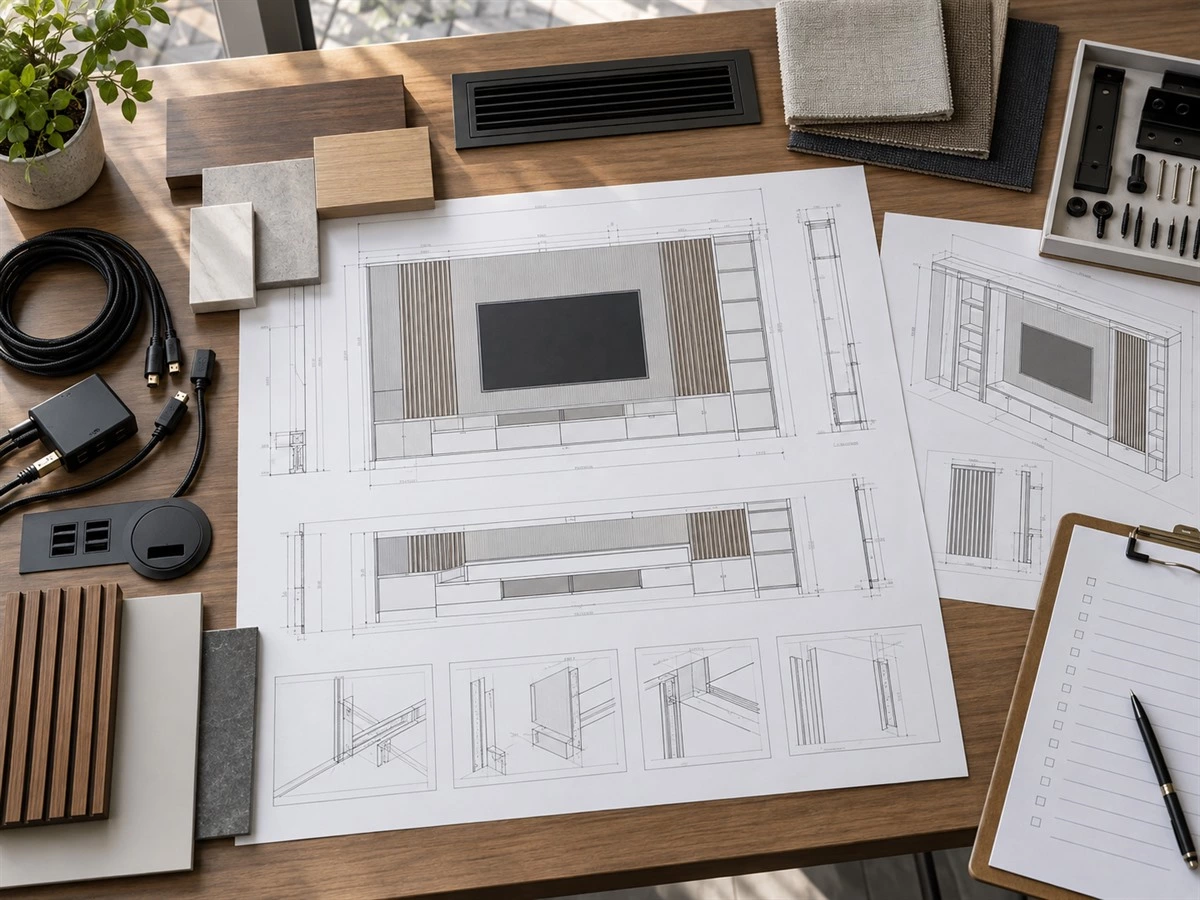

Production Checklist Before a TV Wall Cabinet Is Released
Before production begins, the client and project team should work from one confirmed set of information. This is particularly important when cabinetry, electrical work, AV equipment, lighting, and decorative wall finishes are being coordinated by different parties.
| Check Before Production | What to Confirm |
|---|---|
| Equipment list | Actual television, soundbar, amplifier, game console, router, and accessories |
| Device guidance | Manufacturer requirements for mounting, ventilation, and operating clearance |
| TV position | Screen size, mounting system, viewing height, and cable-entry location |
| Cabinet layout | Equipment shelf size, door style, opening direction, and service zones |
| Ventilation plan | Airflow route, vented sections, and any specialist coordination required |
| Cable route | Power, HDMI, network, audio, control, and lighting cable paths |
| Electrical points | Outlet locations, switch positions, and accessible power areas |
| Service access | Rear panels, side panels, device removal method, and reset access |
| Materials | Cabinet finish, wall panel, stone, glass, metal, and joint coordination |
| Final drawing set | One approved version shared with the relevant project parties |
Cabinet lighting should be planned with equal care. If the TV wall includes LED strips, concealed lighting or drivers, coordinate them with the cabinet design through the related guide to cabinet lighting wiring, driver locations, and service access.

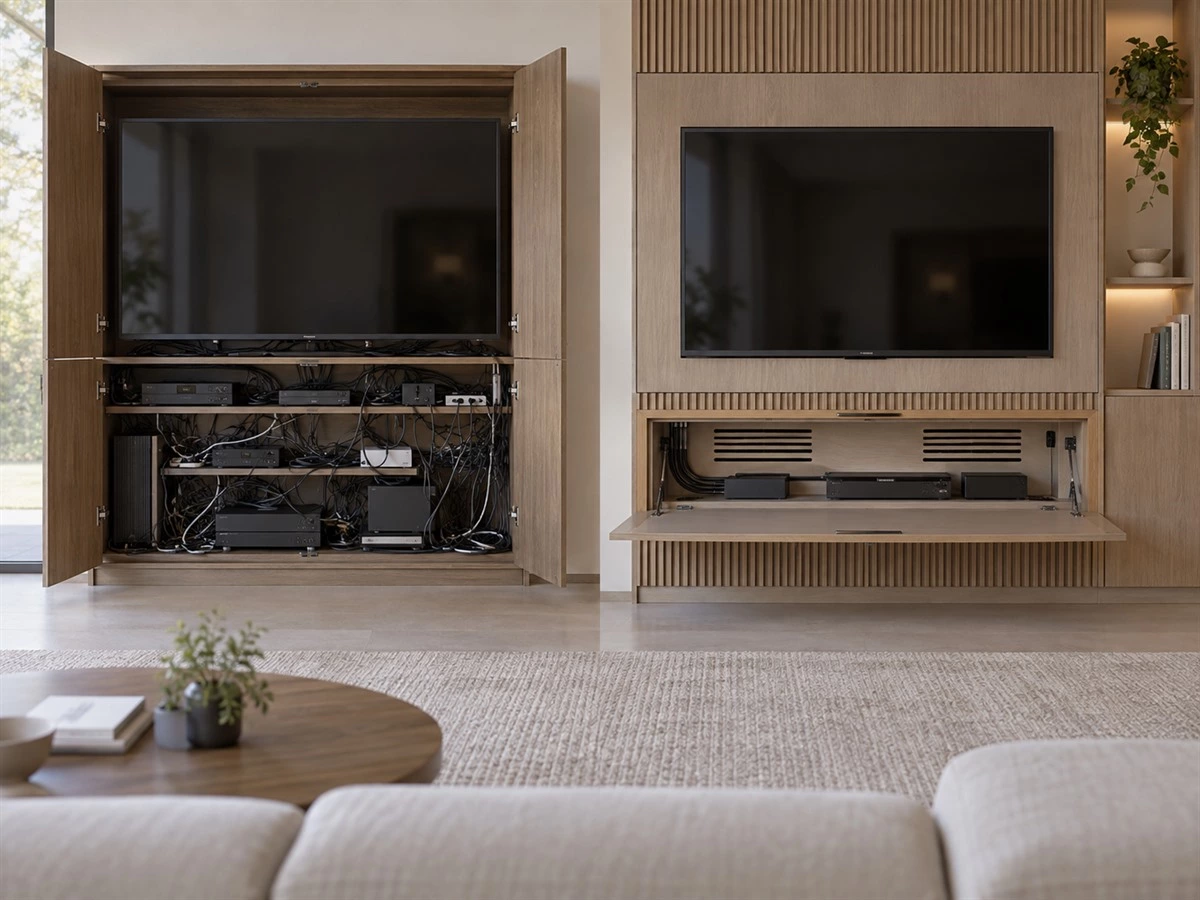

Common TV Wall Cabinet Ventilation Mistakes
Designing the cabinet before choosing the equipment
A cabinet layout based on assumed device dimensions may need changes when the actual receiver, console, or router is selected. Confirm the equipment early or keep the relevant compartment flexible and accessible.
Treating ventilation as one decorative opening
A single opening does not automatically create a useful airflow path. Review the whole equipment compartment: device position, door style, rear panel, adjacent shelves, stored items, and access points all affect how the space performs.
Hiding every cable behind a fixed panel
Concealment should not mean permanent inaccessibility. A clean TV wall still needs a practical way to trace, replace, or reconnect cables when the equipment changes.
Forgetting the replacement path
A device may eventually need to be removed. Confirm how the television, soundbar, receiver, or game console can be accessed and replaced before the cabinetry and wall finishes are finalized.
Mixing lighting drivers and media equipment without an access plan
Lighting components and media devices have different cables, heat, and servicing needs. Avoid placing everything in one tightly closed compartment without a clear layout, access route, and coordinated installation plan.
Frequently Asked Questions
Does a TV wall cabinet need ventilation?
A TV wall cabinet may need ventilation when it contains heat-producing equipment such as an amplifier, game console, router, or streaming device. The appropriate detail depends on the actual equipment, cabinet configuration, and manufacturer guidance.
How do you hide TV cables while keeping them accessible?
Plan dedicated cable routes, suitable cable openings, and a removable or serviceable panel before the cabinet is made. This keeps cables visually concealed while allowing replacement or troubleshooting later.
Can an amplifier go inside a closed TV cabinet?
The answer depends on the equipment manufacturer's guidance, the cabinet’s ventilation path, available space, cable arrangement, and access method. Do not place an amplifier inside a tightly enclosed cabinet without confirming those conditions.
Where should a router go in a TV wall cabinet?
A router should be located where it can receive appropriate ventilation, remain accessible for reset or replacement, and fit the home’s network-cable plan. Confirm the final location with the relevant network and installation professionals.
What should be shown on the TV wall shop drawings?
Include television dimensions and mounting position, equipment compartments, cable routes, power locations, ventilation details, back-panel openings, service-access method, finishes, and the final approved equipment list.
Conclusion
A well-designed TV wall cabinet does more than conceal a screen and media equipment. It gives each device enough planned space, a workable ventilation path, organized cable routing, and a practical way to be serviced or replaced. Confirm the equipment list, manufacturer requirements, electrical coordination, and final cabinet drawings before production. This process helps the finished TV wall remain visually integrated without becoming difficult to maintain.
For a wider project handover sequence, see the whole-house cabinet installation sequence. It helps align site readiness, room order, and final checks before cabinetry is installed.
