A cabinet run can be accurate on a drawing and still fail on site. A wall may bow, a refrigerator door may need more swing room, or a corner drawer may stop short of full extension. Kitchen cabinet filler strips are planned allowances that protect clearance, absorb site variation, and make a custom kitchen look intentional rather than patched together.
For builders, dealers, and homeowners ordering custom cabinets, the approved shop drawing should show each filler, its finish, and whether it will be trimmed on site. Otherwise, cabinets can arrive at the exact wall width while doors still cannot open comfortably.
Key Takeaways
- Kitchen cabinet filler strips create the operating clearance needed beside walls, corners, appliances, and tall cabinets.
- The correct width depends on door swing, drawer travel, handle projection, appliance specifications, and real site conditions.
- Filler strips, end panels, and scribe strips should be identified separately in the drawing, quotation, and packing list.
- A filler that is too narrow for site scribing can turn a simple wall variation into visible gaps, damaged finishes, or cabinet rework.

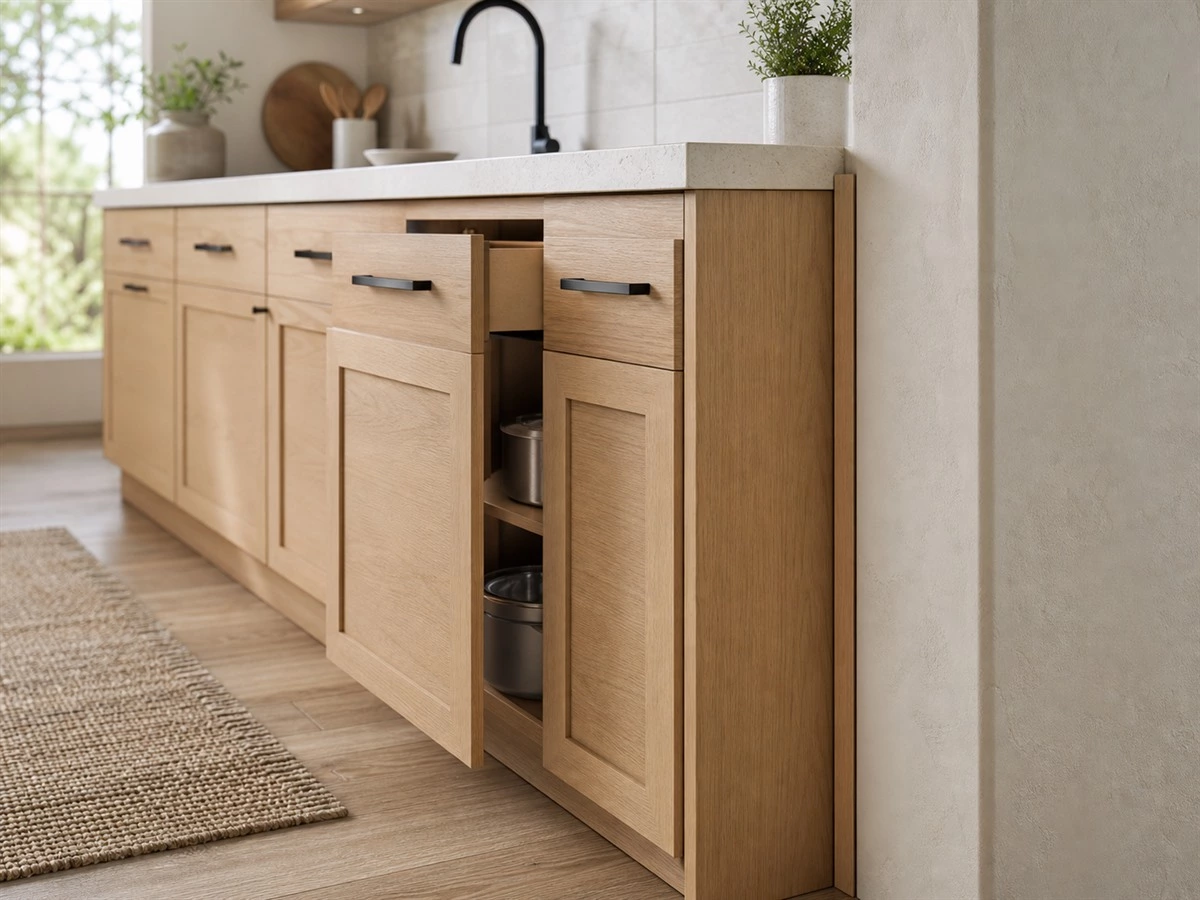

What Are Kitchen Cabinet Filler Strips?
Kitchen cabinet filler strips are narrow, finish-matched pieces installed between a cabinet and a wall, appliance, tall unit, or adjacent run. They give doors, drawers, pull-outs, and handles room to move while closing a controlled gap cleanly.
An end panel covers an exposed cabinet side; a scribe strip is trimmed to follow an uneven wall. A filler strip can be visible, structural, or both. In a production-ready package, each part needs its own item number, location, dimensions, finish code, and installation note.
| Component | Primary Function | Buyer Check |
|---|---|---|
| Filler strip | Creates clearance and closes a planned gap | Finished width, wall allowance, finish match |
| End panel | Covers an exposed cabinet side | Thickness, decorative face, edge treatment |
| Scribe strip | Follows an uneven wall after trimming | Extra trimming allowance and site responsibility |
Buyer decision: This planning is most important for renovation work, high-end handleless kitchens, appliance walls, and long cabinet runs. Before approving the drawing, check that the component name reflects its real purpose. The risk of vague wording is simple: the factory may supply a decorative panel when the installer actually needs functional clearance.
Start With Clearance, Not With a Standard Filler Width
There is no universal filler width. A finger-pull cabinet, long bar handle, corner pull-out, refrigerator, and dishwasher all create different clearance requirements.
Before selecting kitchen cabinet filler strips, review the total wall run, the operating zone for doors and drawers, and the likely wall tolerance. Standard modules are useful, but the last cabinet should never be forced hard against a wall simply to remove a narrow gap. For a starting point on modules, see this kitchen cabinet sizes guide.
7 Rules for Planning Kitchen Cabinet Filler Strips

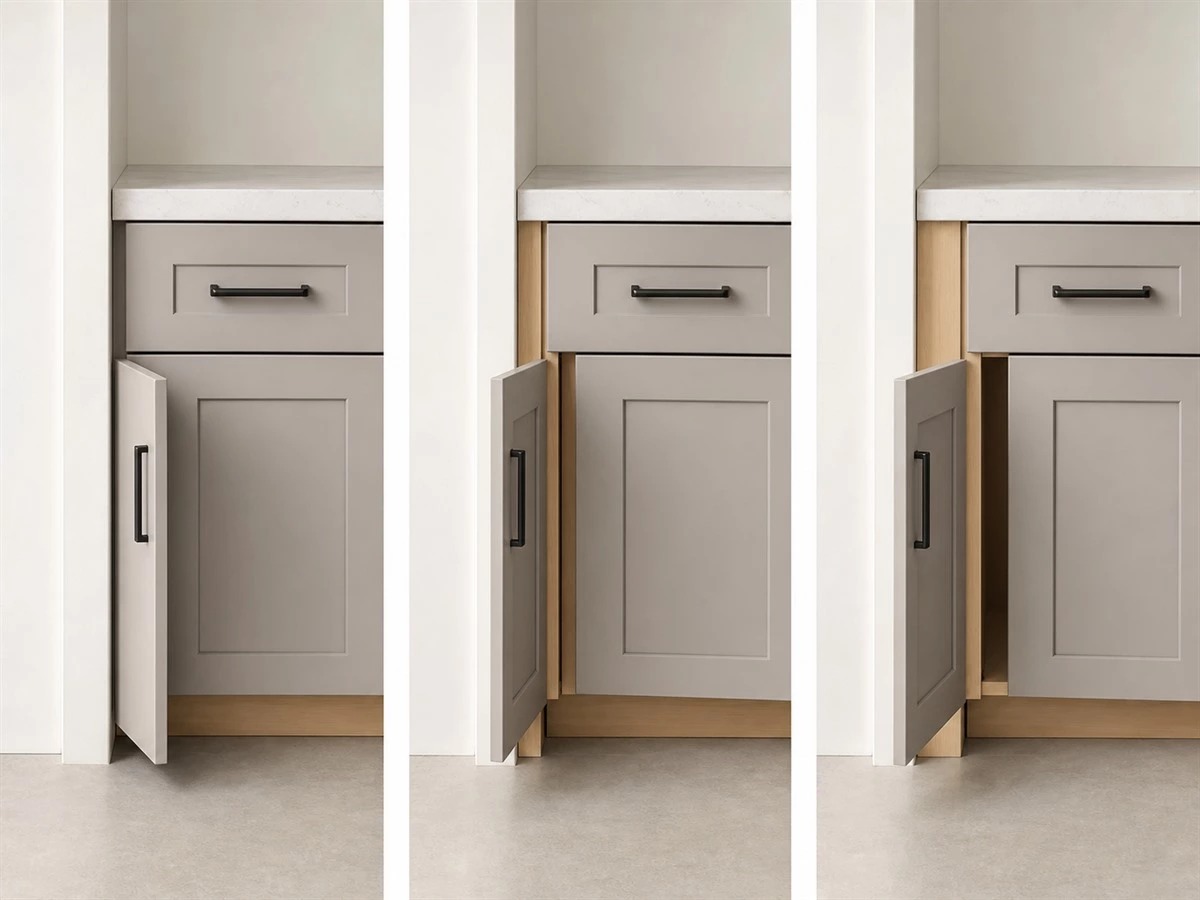

Keep clearance at every wall-end cabinet
A cabinet ending at a wall needs more than a neat junction. Its door, drawer front, pull-out tray, and handle must operate without touching plaster, tile, or a return wall. Handleless fronts reduce projection but do not remove the need for clearance.
Buyer decision: Check opening angle, handle projection, and wall straightness. Risk: chipped edges, scraping handles, or incomplete drawer travel.

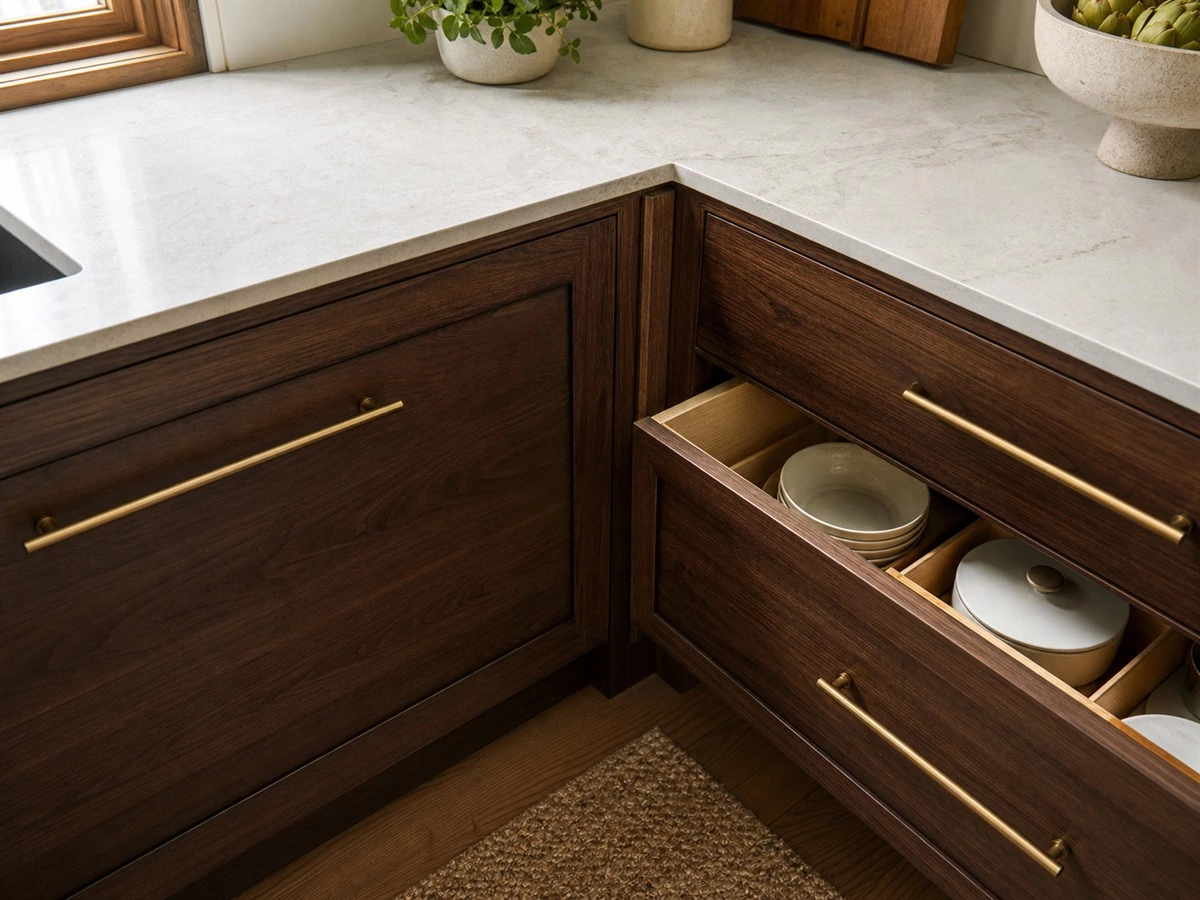

Protect movement around corner cabinets
Corner conditions are where a missing filler becomes expensive. A blind-corner pull-out needs an adjacent opening for its mechanism, while a diagonal cabinet needs door-swing room. In an L-shaped layout, a drawer can hit a perpendicular door or handle even when both boxes fit the plan. Show the filler in plan view, not as an afterthought in elevation.
Use the same review method described in our kitchen corner cabinet ideas guide: identify the corner type first, then confirm hardware movement and neighboring door positions. Buyer decision: Check opening arcs, pull-out travel, and handle collision. Risk: an accessory that cannot be used correctly.
Plan refrigerator and tall-cabinet transitions as one zone
Refrigerator panels, pantry cabinets, and oven towers can look continuous but behave differently. Appliance doors may project past cabinet fronts, and manufacturers may require ventilation or service clearance. A filler creates room for the door while a finished side panel keeps the elevation clean.
Buyer decision: Check the appliance manual, hinge side, handle depth, ventilation space, and filler finish. Risk: restricted door opening, blocked airflow, or site cutting.

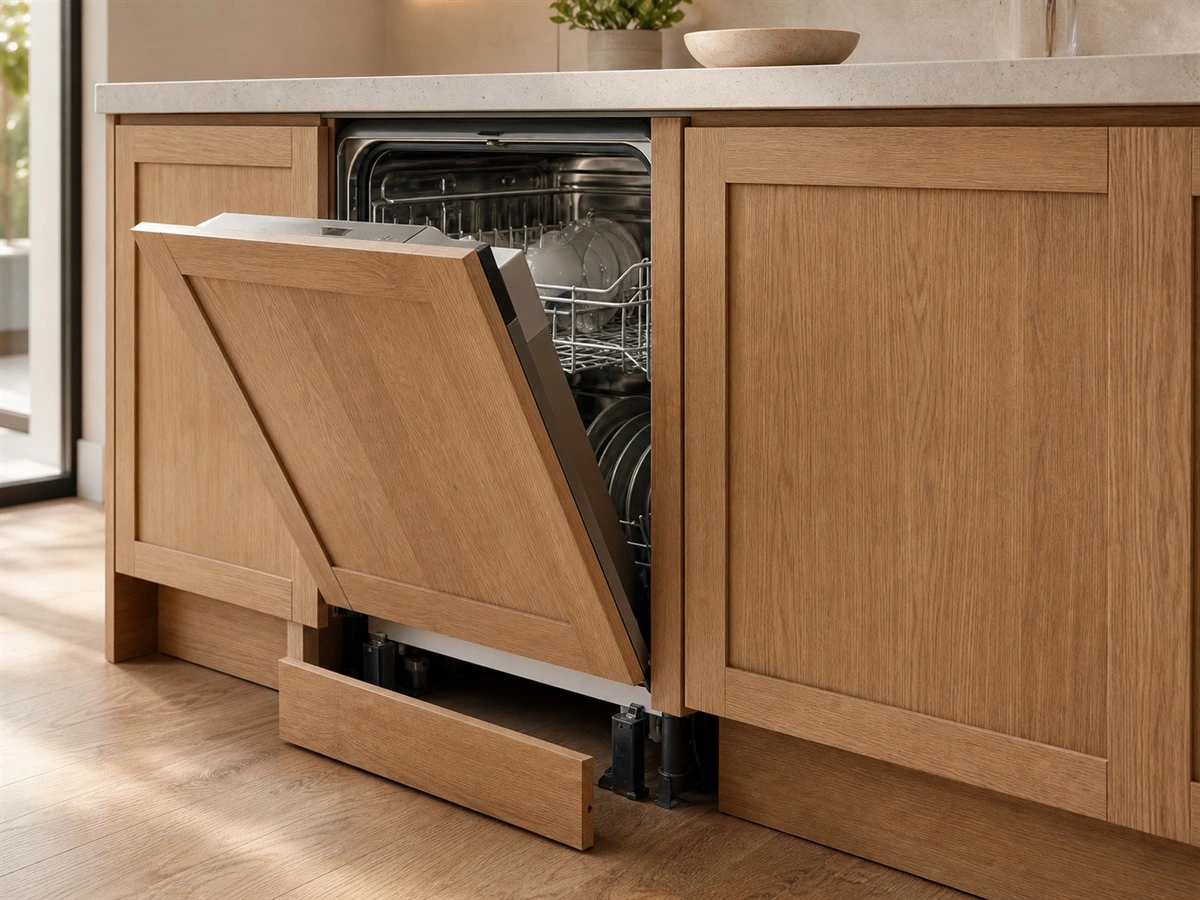

Confirm appliance openings before the filler is manufactured
Dishwashers, ovens, wine coolers, and pull-out bins need more than a nominal opening width. Nearby kitchen cabinet filler strips may provide a fixing point, prevent rubbing, or allow a plinth section to be removed for servicing. Review appliance specifications before shop-drawing approval.
A useful related check is the base-cabinet plinth dimension. Our kitchen cabinet toe kick dimensions guide explains why plinth height and access space should be coordinated before installation. Who it suits: kitchens with integrated appliances. What to check: appliance cutout dimensions, required access, and removable plinth details. Potential risk: cabinet rework, damaged appliance panels, or poor access for future maintenance.
Match the filler to the visible cabinet finish
A technically correct filler can still weaken a premium kitchen if the finish is wrong. Wood grain needs a confirmed direction; matte lacquer, PET, and paint need matching color and sheen. Dark finishes need careful edge treatment because a light substrate line is easy to see. Treat any visible filler as part of the face design.
Who it suits: projects using wood grain, high-gloss, dark matte, or handleless cabinet fronts. What to check: material code, grain direction, exposed edge banding, and the position of the finished face. Potential risk: a visual mismatch that is not noticed until the cabinet run is installed.
List every filler separately in the quote and packing list
“Panels included” is not enough for a multi-cabinet order. Each filler needs an item number, location, finished size, thickness, finish code, and carton label. If site trimming is intended, say so in the drawing. This also helps the installer find the correct part without opening every panel carton.

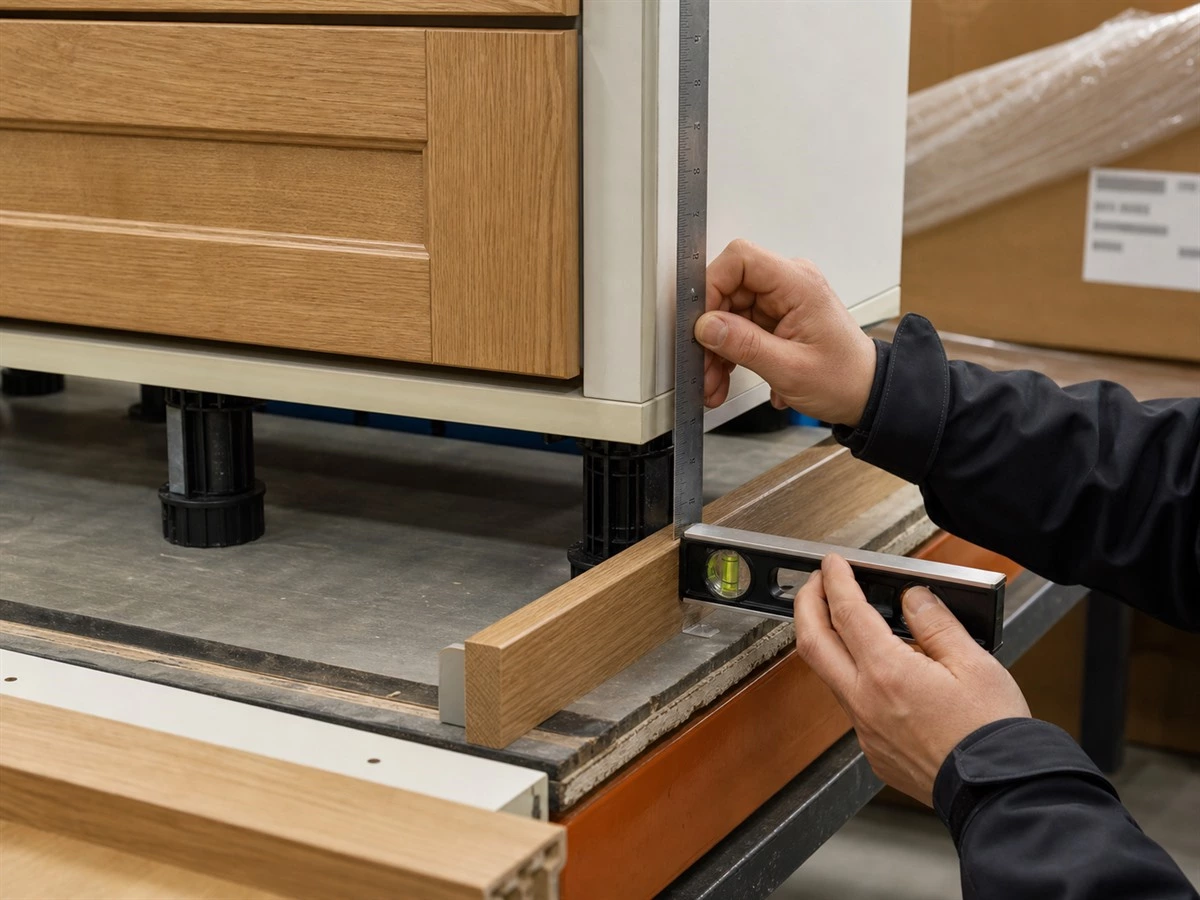

The same discipline is useful when reviewing cabinet quality before shipment. See this custom kitchen cabinet quality standards checklist for a wider set of drawing, finish, hardware, and packing checks. Who it suits: builders, dealers, and import projects. What to check: bill of materials, label schedule, and approved elevation. Potential risk: missing parts, wrong finishes, or site delays caused by unidentified panels.
Leave enough material for site scribing
Custom manufacturing does not make every wall square. In renovation work, a final filler often follows an imperfect wall line. The installer measures the gap at the top, middle, and bottom, then trims the wall side to suit. This controlled scribing is not a manufacturing defect.
Who it suits: older homes, masonry walls, remodels, and sites without a final laser measurement. What to check: whether the filler is wide enough to be scribed and who performs that work. Potential risk: a panel cut too narrow at the factory leaves an uneven caulk line or forces the installer to alter a visible cabinet component.

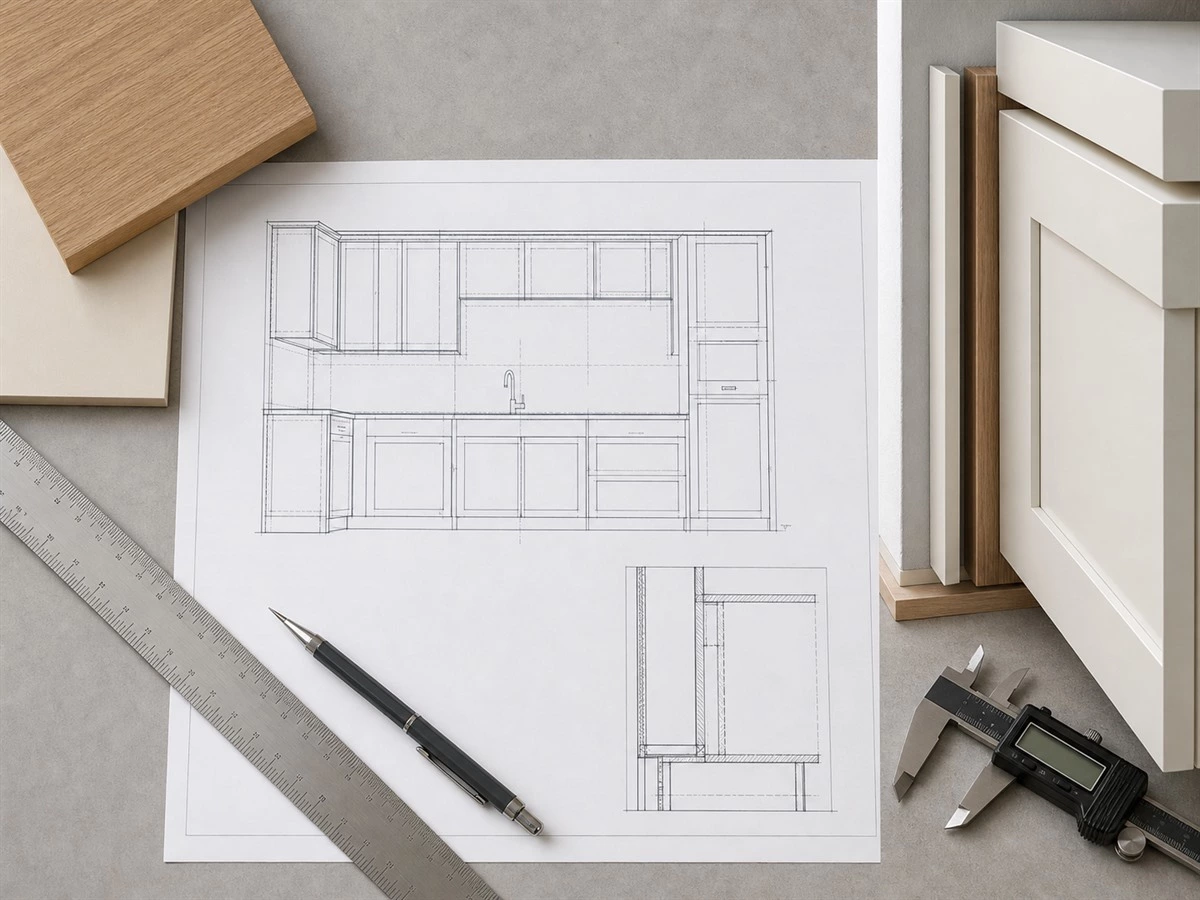

How Kitchen Cabinet Filler Strips Appear on a Production-Ready Drawing
Renderings help buyers visualize a kitchen; production-ready drawings prevent errors. Kitchen cabinet filler strips should appear in plan view, elevation, and difficult-area sections. Show wall dimensions, cabinet modules, opening directions, appliance openings, finished filler height, grain direction where relevant, and the clearance zone.
Before production release, confirm whether the listed measurement is the finished width or a blank that will be trimmed on site. For a reliable field sequence, use the preparation and leveling steps in this kitchen cabinet installation guide. The cabinet run should be leveled and secured before the final filler is fitted.
Factory Technical Review Placeholder
Insert an approved plan, elevation, or section detail here. The image should identify the filler strip item number, finished face, wall-side scribe allowance, and nearby door or appliance clearance.
Regional Material and Site Considerations
In the United States and Canada, coordinate fillers with appliance specifications, construction style, and selected composite-wood documentation. Where applicable, the EPA composite wood standard and the California Air Resources Board program are useful material references. They do not replace project-specific requirements.
For Australia and New Zealand, review moisture exposure, substrate choice, and site measurement together. In Europe and the United Kingdom, confirm required emission class, metric dimensions, and appliance specifications. In the Middle East, heat, air-conditioning, and wall straightness matter, particularly with dark or high-gloss finishes. In every region, ask whether the filler is designed for the actual site or only for an ideal drawing.
Installing Kitchen Cabinet Filler Strips: Sequence and Buyer Acceptance Checklist
First, confirm the finished floor level and level the main cabinet run. Test doors, drawers, and appliance openings before fixing the final filler. Measure the wall gap at several points, scribe if required, fasten from the cabinet interior where practical, and complete the edge finish. Forcing cabinets against an uneven wall can put the run out of level and affect countertop fitting.
| Checkpoint | Acceptance Standard | Evidence to Request |
|---|---|---|
| Location | Shown in the approved plan and elevation | Dimensioned shop drawing |
| Clearance | Door, drawer, and appliance movement remains unobstructed | Plan view with opening directions |
| Finish | Matches the visible cabinet specification | Finish code and sample approval |
| Scribe allowance | Adequate material remains for wall adjustment | Section note or installation note |
| Packing | Part can be identified before installation | Item number and carton label |
Evidence Placeholder
Add a factory sample photo, a technical-review note, and one real installation case image before publication. These items make the drawing-to-installation process easier for buyers to verify.
Frequently Asked Questions About Kitchen Cabinet Filler Strips
Do kitchen cabinets need filler strips next to every wall?
No. Kitchen cabinet filler strips are needed where doors, drawers, pull-outs, handles, or appliances need clearance from a wall or adjacent run. An open shelf does not need the same allowance as a door cabinet. The decision should come from the approved layout, wall condition, and movement of the neighboring component. Without this review, a cabinet can look acceptable in elevation but become difficult to use after installation.
How wide should kitchen cabinet filler strips be?
There is no one correct width for kitchen cabinet filler strips. It depends on cabinet type, door swing, drawer travel, handle projection, wall condition, and site scribing. A wall-end filler may need modest clearance, while a corner pull-out or refrigerator side may require more. Approve a dimensioned drawing rather than choosing a width only because it is a common catalog size.
Can a cabinet door open without a filler strip?
Sometimes, but that does not make the design correct. A door may clear a wall slightly yet strike it at a wider angle, catch a handle, or block a nearby drawer. Kitchen cabinet filler strips create a controlled buffer for normal daily use. Before placing a cabinet against a wall, the drawing should show door-opening direction and hardware projection.
What is the difference between a filler strip and an end panel?
A filler strip creates or closes a functional gap, while an end panel covers an exposed cabinet side. One part can contribute to both functions, but they are not automatically interchangeable. An end panel may not provide enough door or drawer clearance, and a narrow filler may not have the thickness or decorative finish required for a visible side. Identify both clearly in the quote and drawing.
Do frameless cabinets need filler strips?
Yes. Frameless construction can offer a clean appearance and good interior access, but door and drawer fronts still need clearance near walls, corners, and appliances. Handleless designs reduce hardware projection, yet they do not remove the thickness of the front or the effect of wall irregularities. Review clearance from the finished face, not only from the cabinet box, on the finished elevation.
Final Planning Principle
Kitchen cabinet filler strips have a large effect on installation quality. They protect movement clearance, create a clean finish, and let installers respond to real walls rather than ideal drawings. Identify each one early, verify it in the shop drawing, match its finish to visible cabinetry, and confirm its label before shipment. This keeps a custom cabinet run usable, aligned, and deliberate through final installation.
