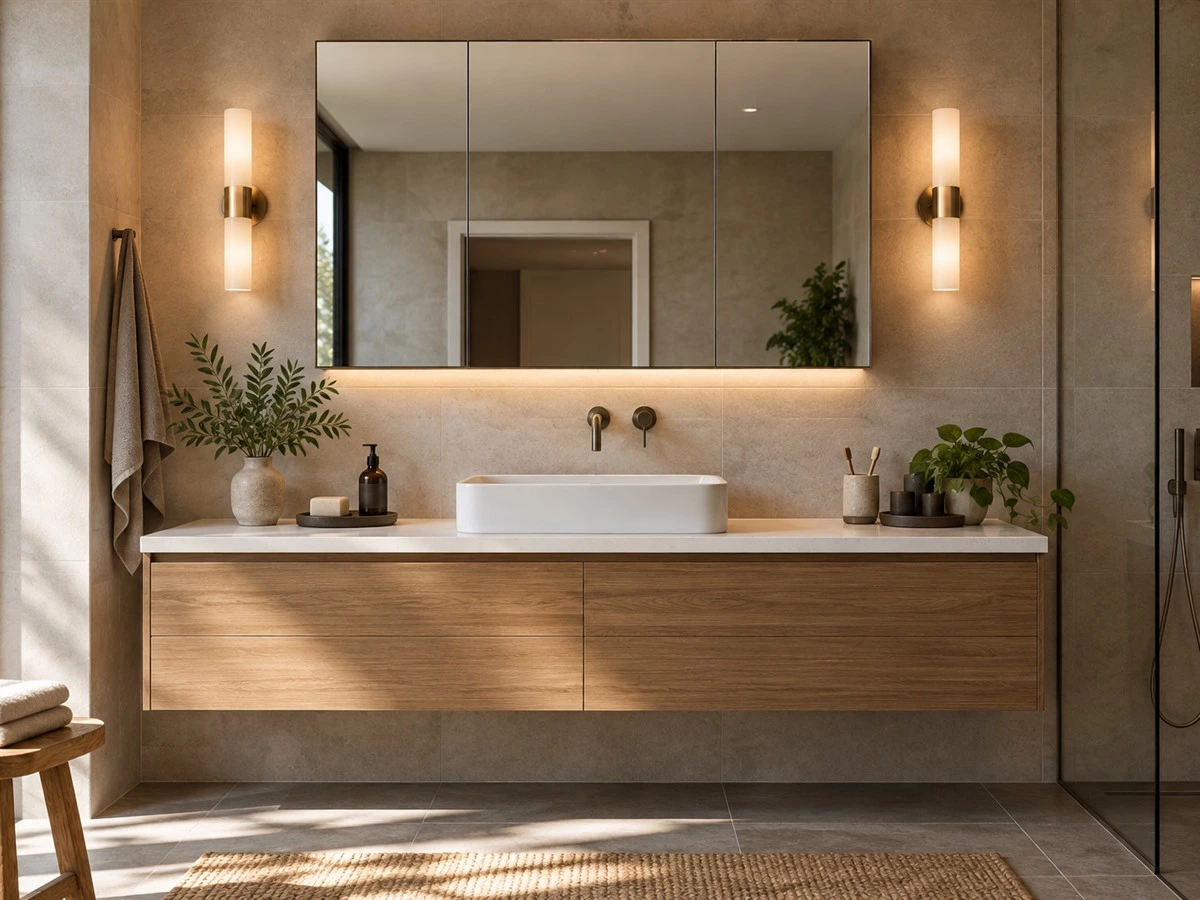

Bathroom mirror cabinet dimensions should be planned with the vanity, basin, faucet, wall construction and electrical points—not selected as an isolated mirror size. The right depth protects usable basin space, the right mounting height supports daily viewing and the right installation method avoids conflicts with tile, wall cavities, lighting, outlets and concealed services. This guide is for designers, builders, project buyers and homeowners planning a custom bathroom. It explains how to review mirror cabinet depth, height, recessed installation, material details and electrical planning before drawings and production are approved.
What Bathroom Mirror Cabinet Dimensions Need to Solve
A bathroom mirror cabinet is both a storage unit and a wall interface. It needs to provide practical space for daily items while working with the vanity, basin, faucet, wall finish, lighting and electrical connections. A cabinet that looks correct in a product image may still feel too deep above a basin, sit too high for users, block a wall light or require a wall cavity that the project cannot provide.
Before choosing a mirror cabinet, answer three practical questions:
- What needs to be stored inside the cabinet?
- How much cabinet depth can the vanity wall accept without reducing daily comfort?
- Which wall, lighting and electrical conditions must be confirmed before production or wall finishing begins?

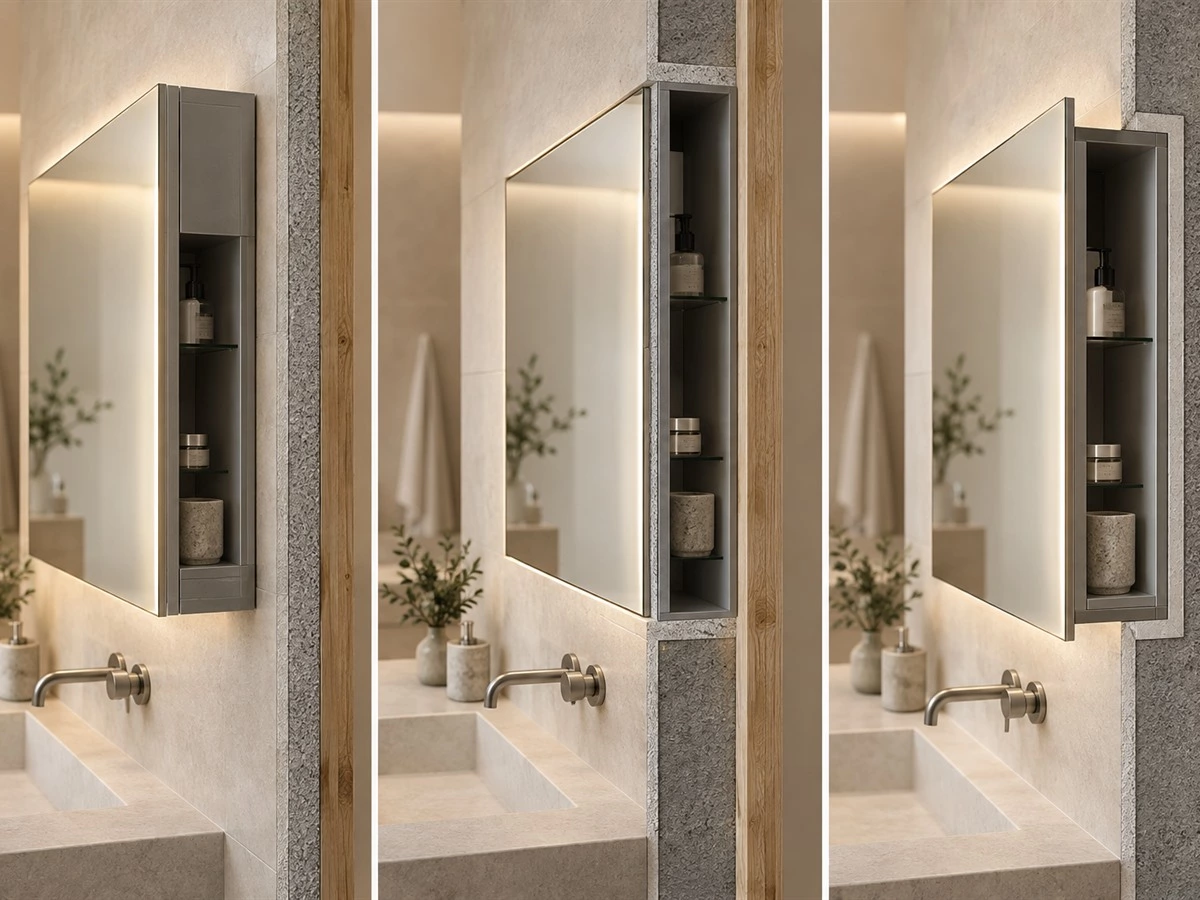

| Installation Type | Planning Benefit | Main Coordination Question |
|---|---|---|
| Surface-mounted | Uses the finished wall without requiring a cabinet cavity. | How much depth can project into the room without affecting basin use or circulation? |
| Recessed | Can reduce visible cabinet projection from the wall. | Is the wall cavity suitable and clear of structure, waterproofing and services? |
| Semi-recessed | Balances internal storage with reduced wall projection. | How will the cabinet face meet tile, stone, wall panels or painted surfaces? |
Planning note: Final mirror cabinet dimensions, electrical arrangements, wall-cavity work and installation details should follow the selected product information, approved project drawings, local requirements and actual site conditions.

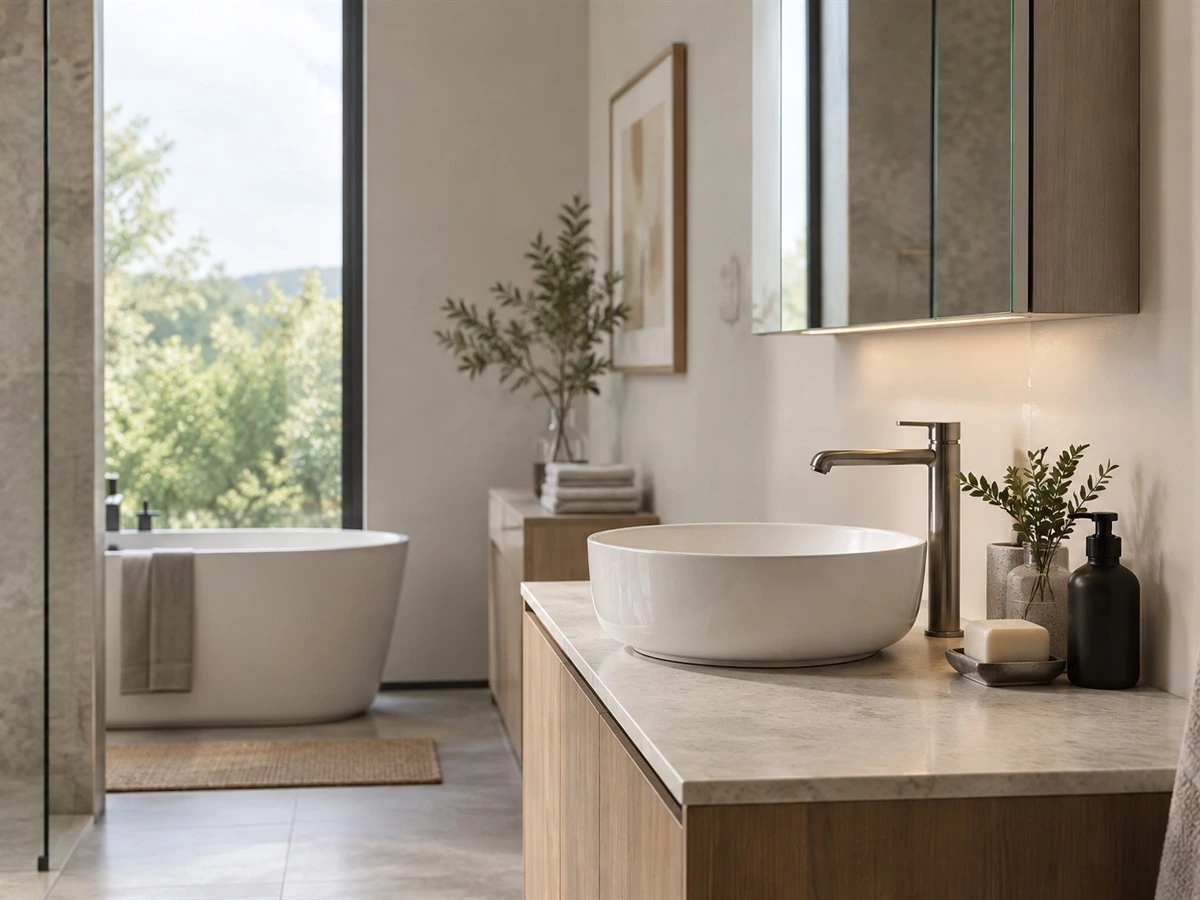

Mirror Cabinet Depth: Protect Vanity Space and Daily Movement
Mirror cabinet depth changes how the vanity wall works. A deeper cabinet can provide more storage, but it can also project farther over the basin, reduce comfortable face space and make doors more difficult to use. The best decision is not simply the deepest cabinet that will physically fit. It is the depth that supports both storage and normal bathroom movement.
Check the Basin and Faucet Relationship
Review the mirror cabinet with the selected basin and faucet position. A countertop basin, wall-mounted faucet, high deck-mounted faucet or integrated basin can each create different clearance conditions. Check where the cabinet starts above the vanity, how far doors project when opened and whether users can reach the basin comfortably.
For small bathrooms, depth should be reviewed together with the route into the room, nearby doors, shower screens and the user’s approach to the vanity. A shallow cabinet with useful internal organisation may serve the room better than a deep cabinet that makes the vanity feel crowded.
Use Internal Organisation Before Increasing External Depth
- Use adjustable shelves to suit different toiletry heights.
- Separate daily-use items from less-used supplies.
- Plan shallow door storage where appropriate.
- Consider internal mirrors, dividers or discreet charging storage if they fit the project scope.
- Keep door hinges, shelves and any internal outlet clear of stored items.

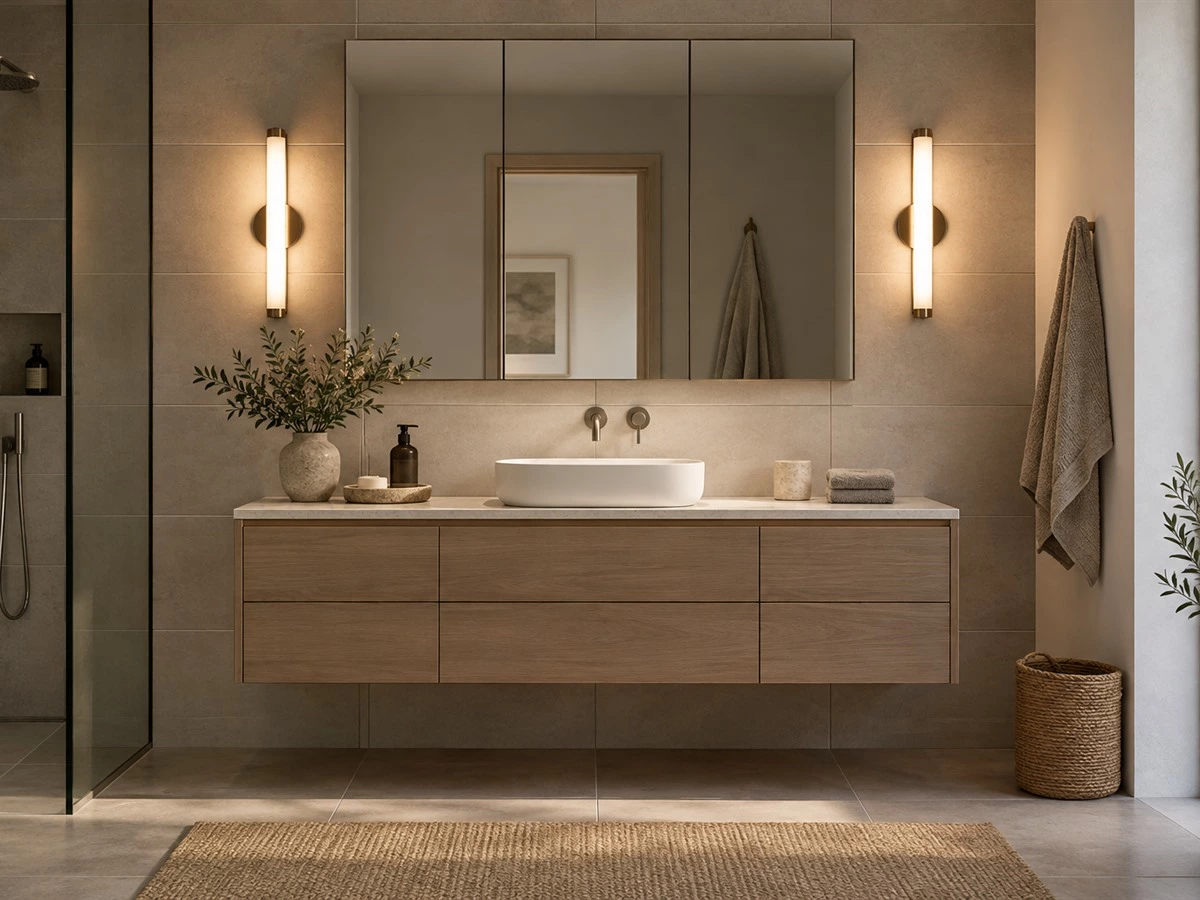

Mirror Cabinet Height: Coordinate Users, Basin and Visual Alignment
Mirror cabinet height should begin with the finished vanity condition. The finished floor, vanity height, countertop thickness, basin type, faucet position and wall finish can all affect where the cabinet should sit. A mirror cabinet that is visually centred on a bare wall may not be centred once the basin, tile lines and wall lights are installed.
Review the Bottom Edge, Top Edge and Viewing Zone
The lower edge should work with the basin, countertop and faucet without making daily cleaning or use awkward. The upper edge should be reviewed against the ceiling, bulkhead, wall lights, ventilation grilles, windows and tile layout. The useful mirror area should suit the intended users, rather than being positioned only for a drawing symmetry.
Align the Cabinet With Major Bathroom Lines
Mirror cabinets often sit at the visual centre of a bathroom. Align them thoughtfully with vanity edges, basin centres, wall lights, tile joints, tall storage and nearby wall panels. If the design uses two mirror cabinets above a double vanity, the spacing between them should be intentional and coordinated with the two user zones.
For vanity height planning, link readers to the Floating Bathroom Vanity Height guide. That article addresses the vanity installation level; this article focuses on the mirror cabinet relationship above it.

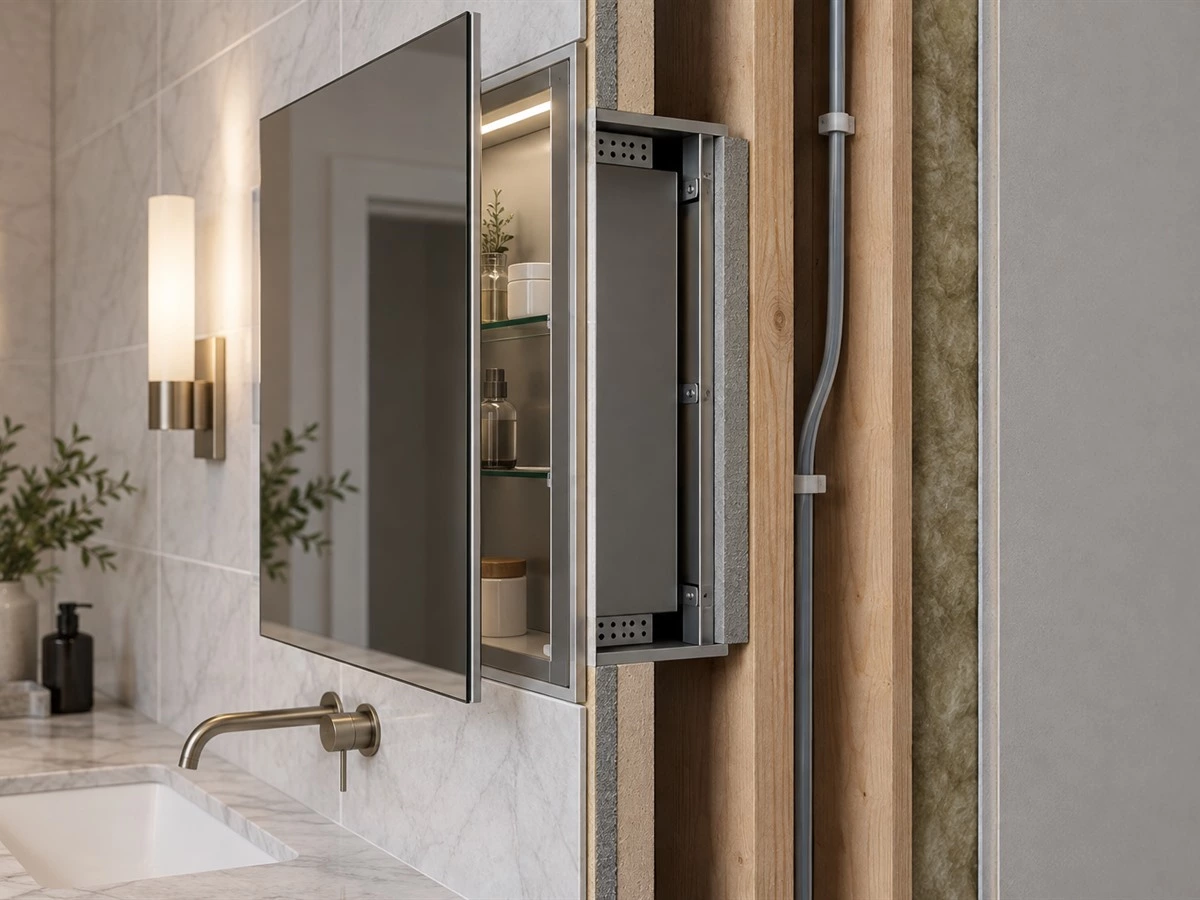

Recessed Mirror Cabinet Planning Before Wall Construction
A recessed mirror cabinet can create a clean visual result, but it is not a late decoration choice. The wall cavity, concealed services, waterproofing, finish thickness and cabinet face detail need to be understood before wall construction and final tiling are complete.
Confirm the Wall Cavity First
Not every bathroom wall is suitable for a recessed cabinet. The proposed location may contain structural elements, plumbing, electrical services, ventilation routes, insulation, waterproofing layers or access requirements. The project team should confirm the wall condition before creating an opening or approving a recessed cabinet depth.
Keep Services Out of the Cabinet Cavity
Electrical cables, switches, pipework, drainage, ventilation and other hidden services need to be coordinated before the cabinet location is finalised. A recessed cabinet should not require the site team to improvise around services after tile or stone surfaces are complete.
Plan the Finished Wall Edge
The cabinet face must meet the finished wall cleanly. Tile, stone, microcement, wall panels and painted walls all create different visible edge conditions. The drawings should show whether the cabinet sits flush, uses a shadow gap, has a trim detail or includes another planned transition.

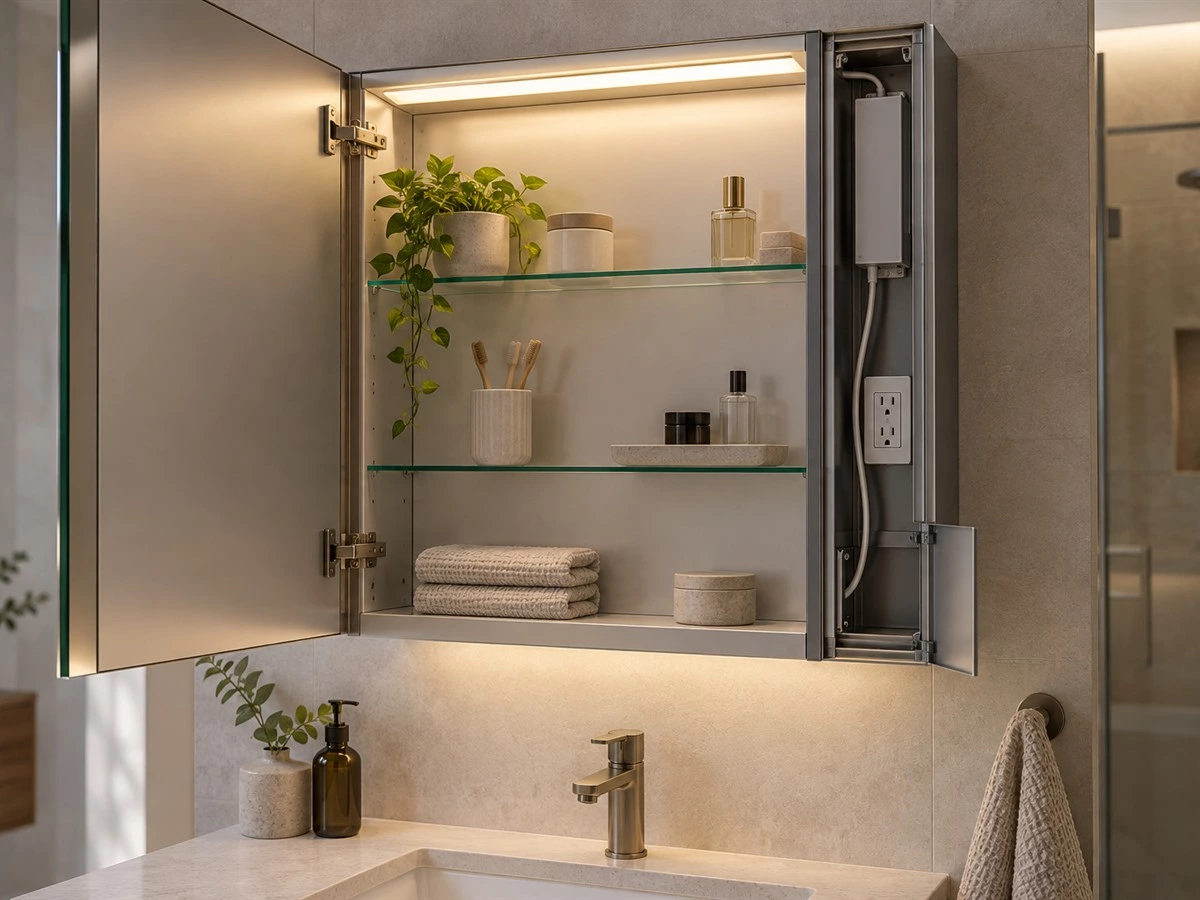

Electrical Planning: Lighting, Outlets and Service Access
Lighting and electrical decisions should be made before the mirror cabinet is fabricated. Integrated lights, side lights, interior outlets, sensors, demister functions, drivers and cable exits can affect cabinet construction, drilling, back-panel details and future service access.
Identify Every Electrical Requirement
List every electrical element that will connect with the mirror cabinet. This may include mirror lighting, cabinet lighting, wall lights, outlets, switches, sensors, demister pads, charging storage or other selected features. The cabinet drawings should identify cabinet-related positions and access methods, while final electrical work should be coordinated with the appropriate qualified project professionals.
Plan Lighting for Daily Use
Mirror lighting should support activities such as washing, grooming, shaving or applying makeup. Top lighting, side lighting and integrated cabinet lighting each create different visual effects. Instead of treating lighting only as decoration, review how it reaches the face, how it relates to the mirror door and how it coordinates with the wider bathroom lighting plan.
Keep Drivers, Connectors and Outlets Accessible
Drivers, connectors and outlets should not be permanently sealed behind fixed cabinetry or inaccessible wall finishes. Confirm that the project has a practical method to reach serviceable components when needed. Also check that cables and outlet locations do not conflict with hinges, adjustable shelves, door movement or stored items.

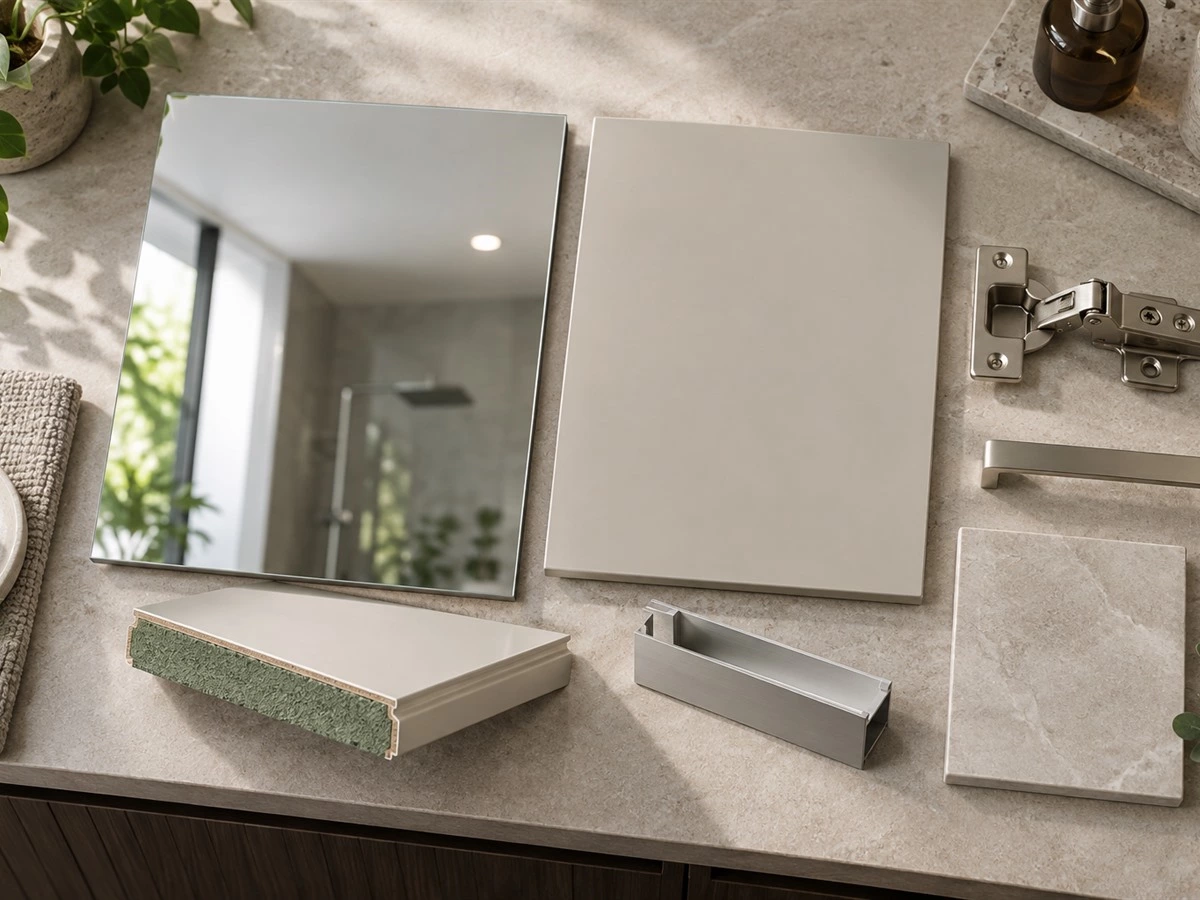

Select Materials and Hardware for Bathroom Conditions
Bathroom mirror cabinets need both a visual finish direction and an appropriate application plan. Door surface, cabinet board, exposed edges, mirror construction, hinges, handles and ventilation conditions should be reviewed as separate but connected decisions.
Separate Appearance From Application Conditions
A finish may look suitable beside the vanity but still need to be reviewed against the actual bathroom condition, cleaning routine, ventilation arrangement and installation location. Avoid treating a broad phrase such as “moisture resistant” as a complete material specification. The project should confirm the actual selected materials and their intended application.
Review Edges, Doors and Hinges
Edges, door gaps, hinges and hardware are exposed to frequent use. Check whether the opening method suits the basin, wall lights and surrounding cabinets. For mirrored doors, aluminium frames, handleless profiles or push-open systems, confirm both the intended appearance and the practical way users will open, clean and maintain the cabinet.
Coordinate Ventilation With Storage Habits
A mirror cabinet should not be treated as a sealed location for wet towels or permanently damp items. Plan storage around daily toiletries, medicine, skincare, grooming supplies and selected small appliances. If bathroom ventilation conditions are not final, keep that point visible in the project coordination record.

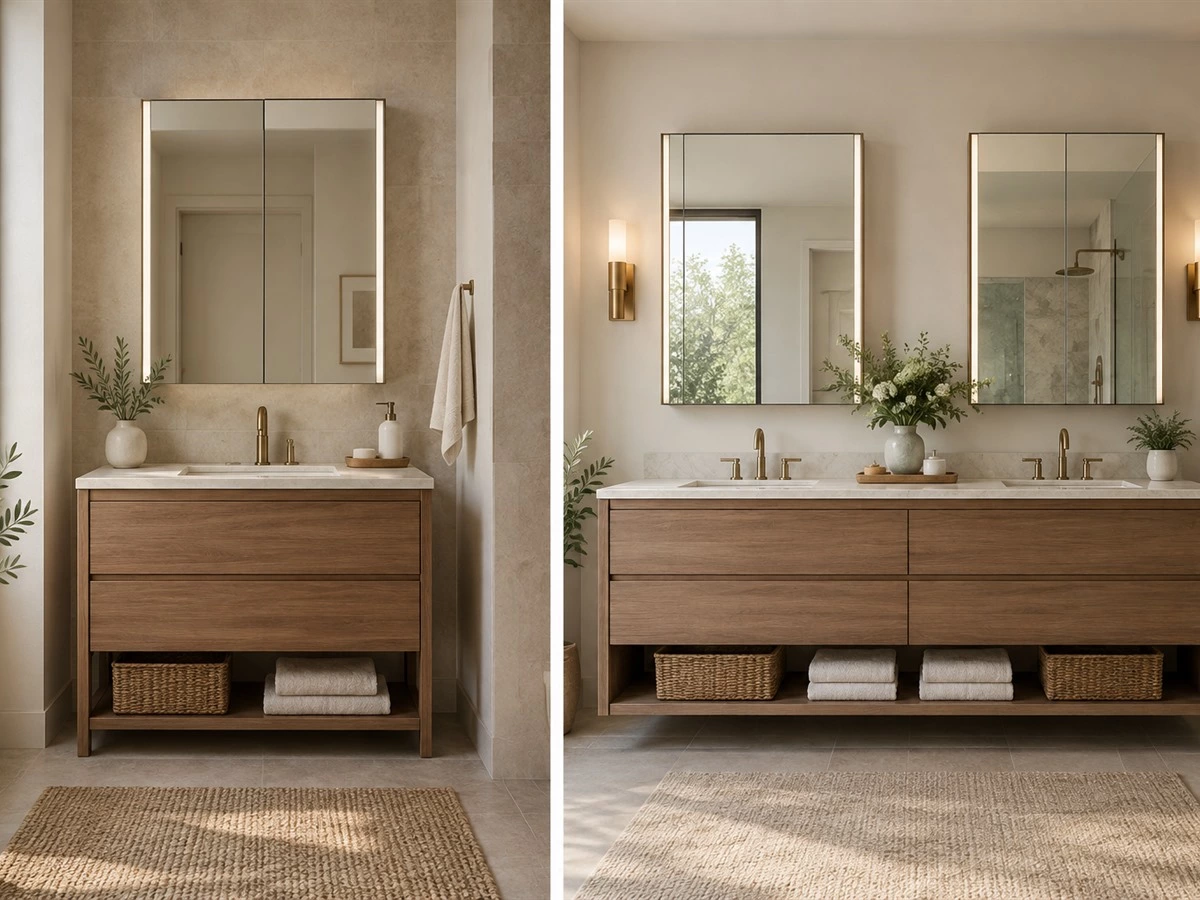

Plan Mirror Cabinets for Single and Double Vanities
Single-Vanity Mirror Cabinet Planning
For a single vanity, confirm the relationship between cabinet width, basin centre, faucet position and available wall area. A narrow mirror cabinet can be effective if it preserves practical basin space and offers well-organised storage. The layout may use one cabinet, a cabinet with adjacent open shelving or a composition with a separate mirror and storage section.
Double-Vanity Mirror Cabinet Planning
Double vanities can use one long mirror cabinet, two separate cabinets or a combined layout with a central open zone. Review whether each user has adequate mirror space, storage access, lighting and outlet access. Do not force a symmetrical layout if a window, service point, tall cabinet or wall condition makes another composition more practical.
For wider vanity planning, see the Double Vanity Dimensions guide. It addresses double-vanity proportions and room planning; this article adds the mirror cabinet, wall cavity and electrical considerations.

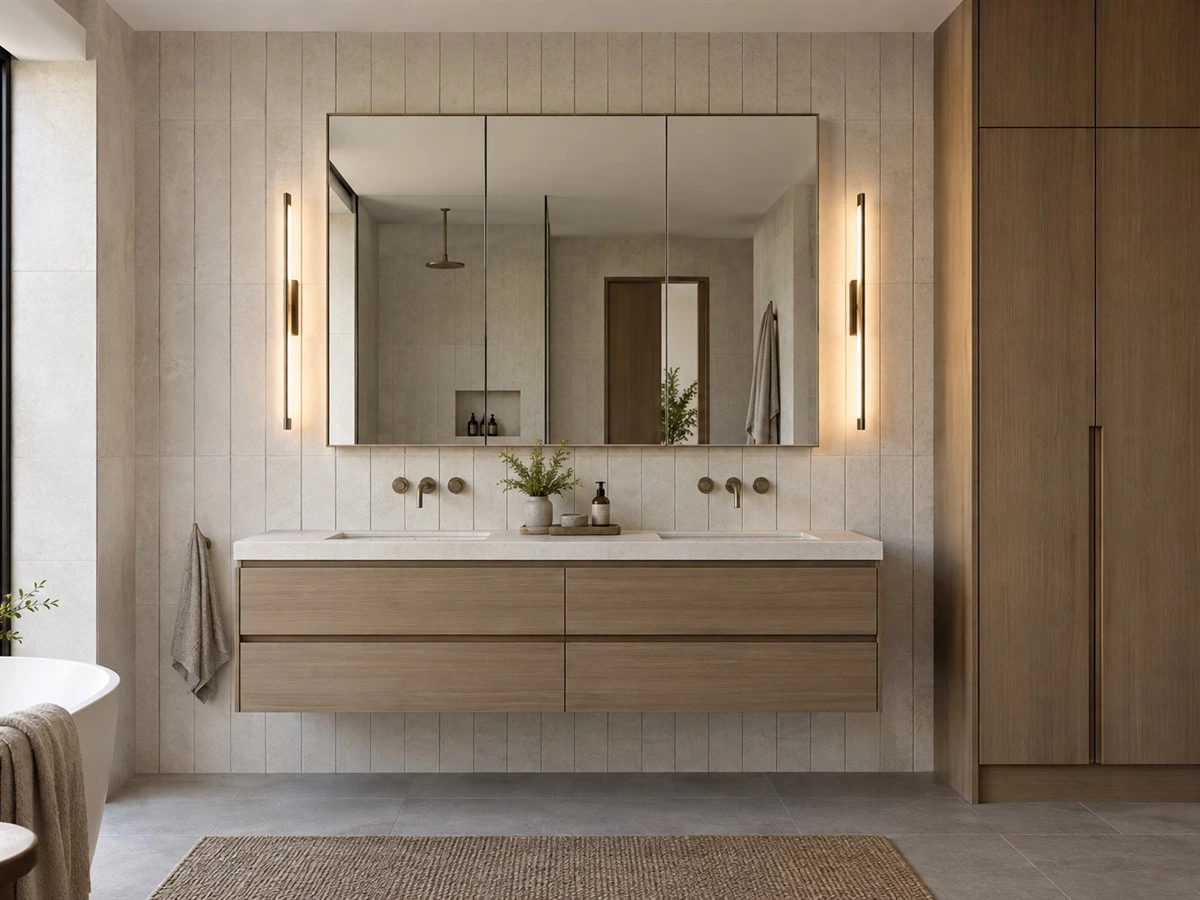

Coordinate Mirror Cabinets With Tile, Wall Panels and Tall Storage
A mirror cabinet should be reviewed as part of the full vanity-wall elevation. The cabinet may need to align with tile joints, stone patterns, wall lights, tall storage, a window opening, a wall niche or a ceiling detail. These relationships are often more visible in the completed bathroom than they appear on a small product drawing.
Use the Wall Elevation for Final Review
Review the finished wall composition rather than only the mirror cabinet product size. Confirm where the cabinet begins and ends relative to the vanity, basin, tile field, lighting and adjacent cabinets. If the bathroom includes a tall linen cabinet, open shelving or wall panel, the elevation should show the intended visual alignment.
Avoid Small Misalignments
Mirror cabinets sit in a highly visible position. A small offset from the vanity, tile layout or wall light can become noticeable every day. Where the wall is irregular, define the intended visual solution before production, such as a planned gap, filler, trim or other finish detail.
For wider bathroom layout, finishes and pre-construction coordination, readers can also review the Bathroom Design Guide Before Construction.

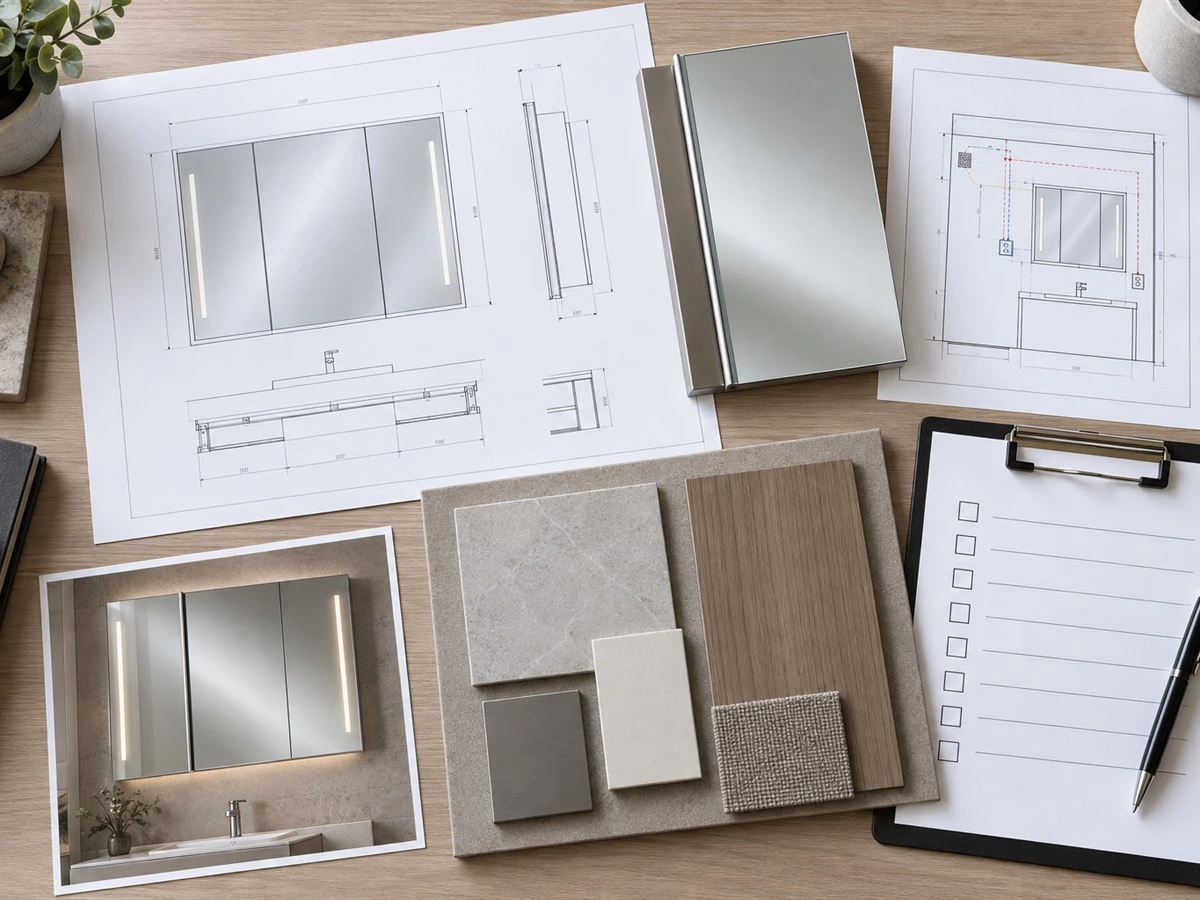

Confirm Dimensions and Electrical Interfaces Before Production
The mirror cabinet should appear in the relevant shop drawing package before it enters production. The drawing information should connect cabinet dimensions, installation type, door opening, material reference, lighting positions, outlet locations and required wall conditions.
- Mirror cabinet width, height and depth are confirmed.
- Finished vanity, basin and faucet positions are final or clearly marked as pending.
- Surface-mounted, recessed or semi-recessed installation is defined.
- Wall cavity and concealed services are checked before wall construction.
- Lighting, outlets, cables, drivers and service access are coordinated.
- Door style, hinges, edges, handles and visible finishes match approved references.
- Tile, wall panel, tall storage and wall-light interfaces are shown in elevation.
- Cabinet code, material reference and drawing revision are recorded.
Link this stage to the Cabinet Shop Drawings guide for broader production-drawing coordination. For whole-home material consistency, connect the cabinet to the Cabinet Finish Schedule guide.
Common Bathroom Mirror Cabinet Planning Mistakes
Choosing Depth Before Checking Basin Space
Extra cabinet depth can improve storage, but it may reduce comfortable room at the basin. Review depth with faucet position, cabinet-door movement and the user’s approach to the vanity.
Treating a Recessed Cabinet as a Late Decoration Choice
A recessed cabinet requires wall and service coordination. Deciding after waterproofing, tile or stone work is complete can create unnecessary construction and finish risks.
Adding Electrical Features After Cabinet Production
Lighting, drivers, outlets, sensors and internal electrical features can affect drilling, cabinet backs and access. Confirm them before the relevant cabinet details are released.
Matching Only the Door Finish
The finished result depends on more than the main door. Review the cabinet board, visible edges, mirror, glass, hinges, handles, wall finish and nearby lighting as one composition.
Ignoring Tile and Tall-Cabinet Alignment
A mirror cabinet sits at eye level, so small visual offsets can be amplified. Use the complete wall elevation to coordinate the cabinet before production and installation.
Frequently Asked Questions
How deep should a bathroom mirror cabinet be?
The suitable depth depends on bathroom circulation, vanity depth, basin position, faucet type, storage needs and whether the cabinet is surface-mounted or recessed. Confirm the selected cabinet and actual wall condition before finalising dimensions.
What height should a bathroom mirror cabinet be installed?
Installation height should be coordinated with finished vanity height, basin type, user viewing range, faucet position, lighting and nearby tile or ceiling details. There is no single height that fits every bathroom.
Can a mirror cabinet be recessed into any bathroom wall?
No. A recessed installation depends on wall-cavity depth, structure, waterproofing, hidden electrical or plumbing services and the proposed cabinet construction.
Should a bathroom mirror cabinet include an outlet?
An internal or nearby outlet can be useful in some projects, but its location, access, safety requirements and final electrical connection should be planned with the relevant qualified project professionals.
How should a mirror cabinet coordinate with a double vanity?
Confirm the two basin centres, user mirror zones, door opening, lighting, electrical points and available wall width. The project may use one long cabinet, two separate cabinets or a combined composition depending on the wall and storage requirements.
Plan the Mirror Cabinet Before the Bathroom Wall Is Finished
The best bathroom mirror cabinet dimensions are established before cabinetry production and before wall conditions become difficult to change. By coordinating depth, height, basin use, wall construction, lighting, electrical points, materials and tile alignment in one review process, the project can turn a mirror cabinet from a late product choice into a useful and well-integrated part of the bathroom.
