Cabinet Shop Drawings: 9 Checks Before Production Approval

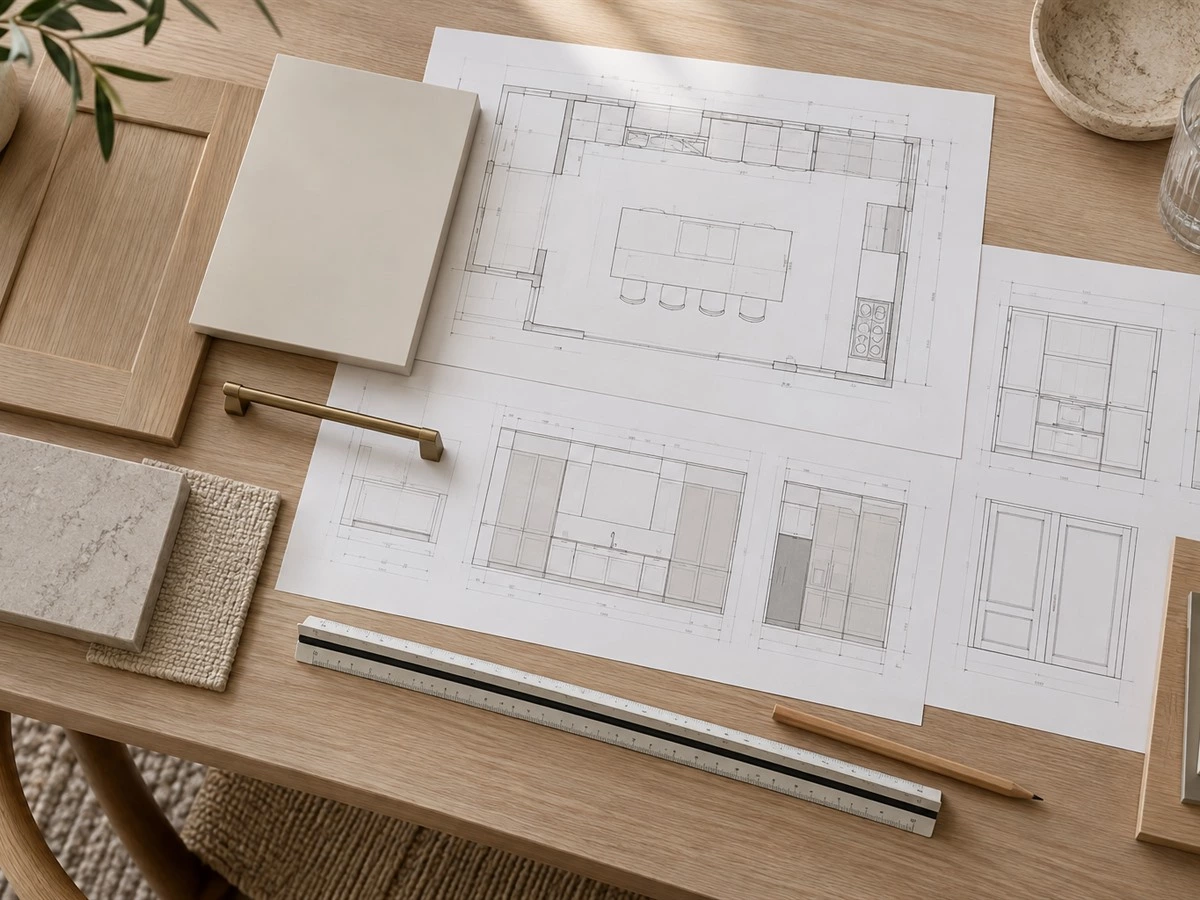

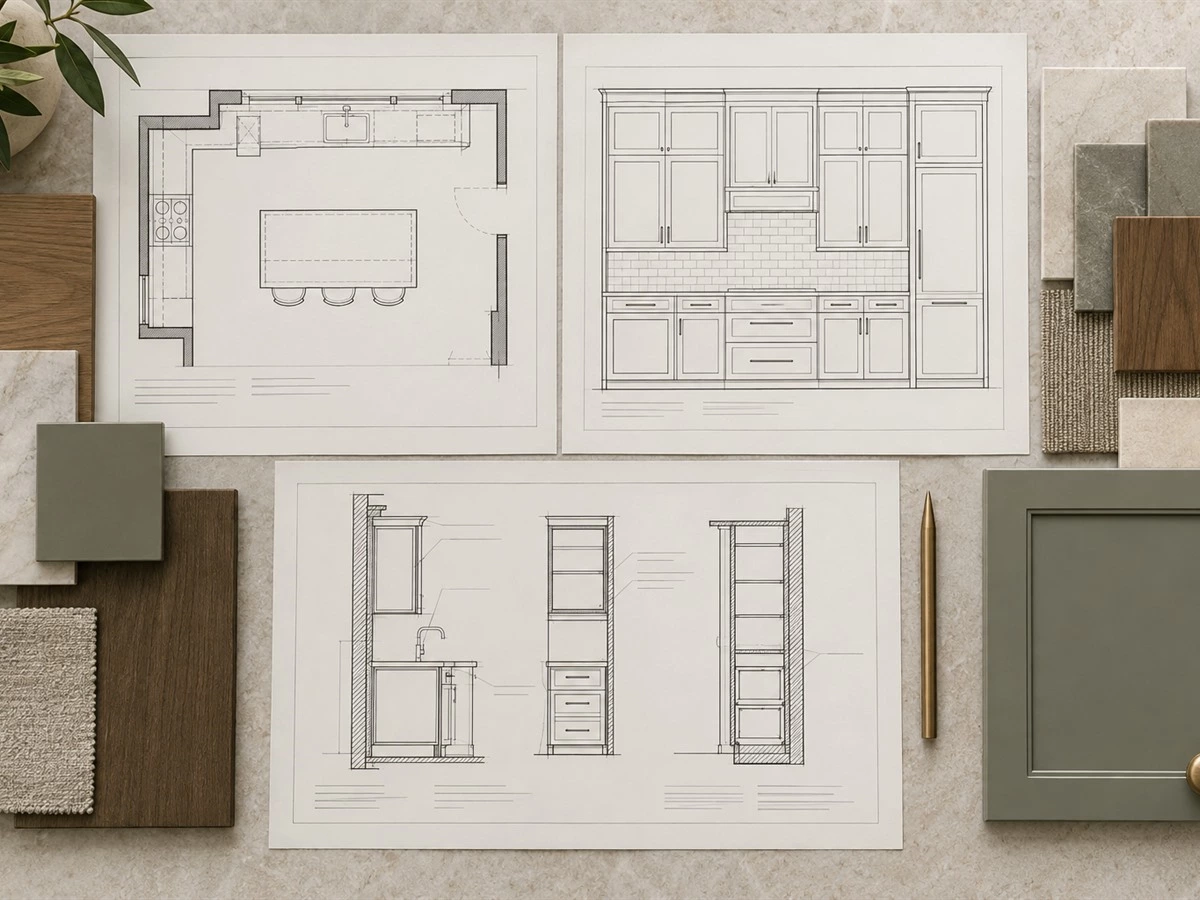

What Cabinet Shop Drawings Should Do Before Fabrication

Cabinet shop drawings are the project-specific documents used to turn an approved design direction into a cabinet package that can be manufactured, packed,d and installed. They are more detailed than a mood board, a quotation, or a rendered image. A useful drawing package connects cabinet codes, dimensions, elevations, sections, materials, hardware and site interfaces so that the factory and project team work from the same information.

The objective is not to make every drawing look complicated. It is to make the decisions that affect production clear enough to verify. If a cabinet depth, appliance opening, lighting route, panel finish, or wall condition is still unknown, that item should remain visible as an open decision rather than being assumed during fabrication.

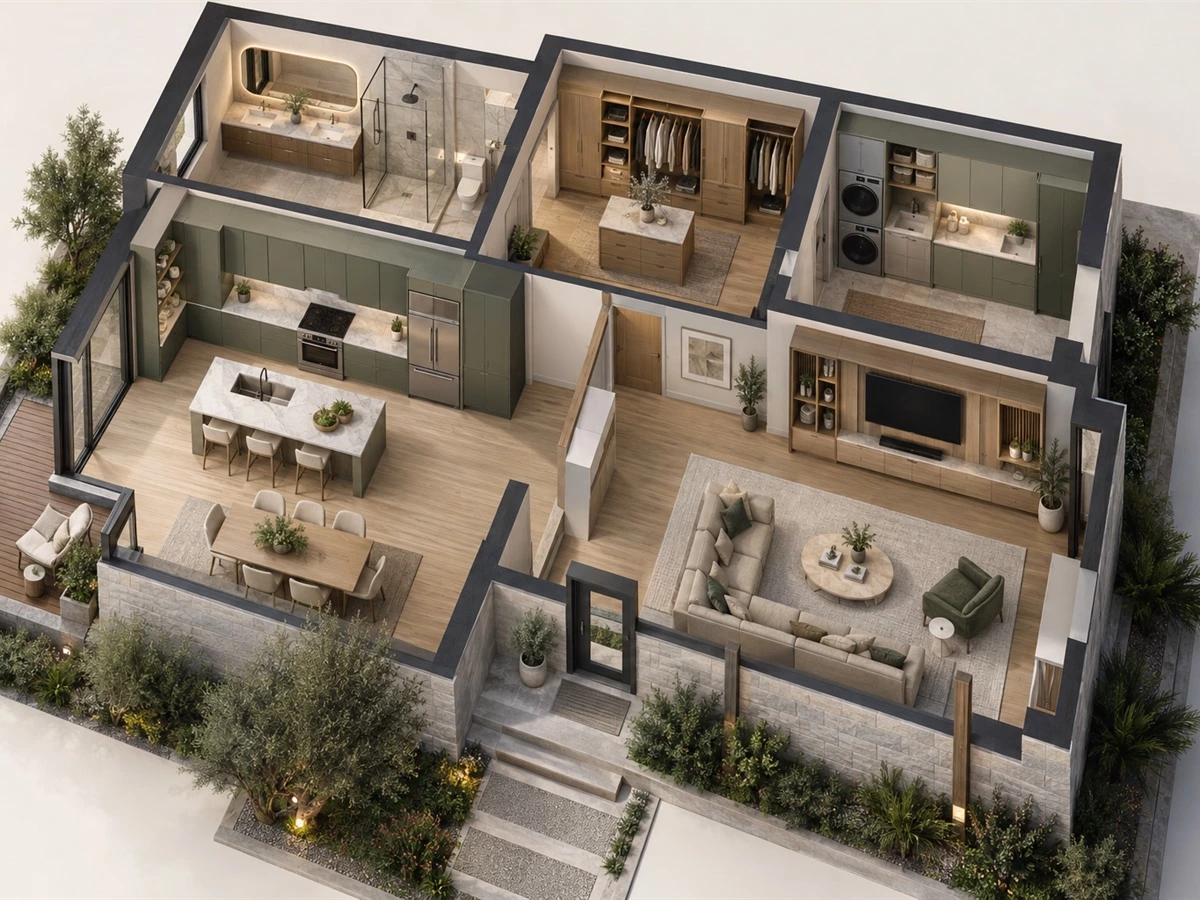

Check 1: Confirm Room Names, Cabinet Codes and Supply Scope

Every cabinet should have a traceable identity. The room name, cabinet code,e and relevant drawing reference should match across plans, elevations, schedules, packing information, and installation documents. This is especially important on whole-house projects where kitchens, wardrobes, bathroom vanities, laundry cabinets, TV walls and sideboards may share similar colours or door styles.

Start by checking whether the scope is complete. The drawing package should distinguish cabinet carcasses, doors, drawers, visible end panels, fillers, toe kicks, handles, open shelves, internal accessories, glass, lighting channels and decorative panels. It should also make clear which elements are not supplied with the cabinetry, such as appliances, countertops, stone splashbacks, final electrical connections or site-installed wall finishes.

• Confirm every room name follows the same wording throughout the drawing set.
• Check that every cabinet code appears in the relevant plan, elevation and schedule.
• Identify special cabinets, such as appliance towers, corner units, glass display cabinets or integrated laundry systems.
• Separate factory-supplied items from site-provided or trade-provided items.
• Do not rely on informal descriptions such as “the white cabinet beside the window.”

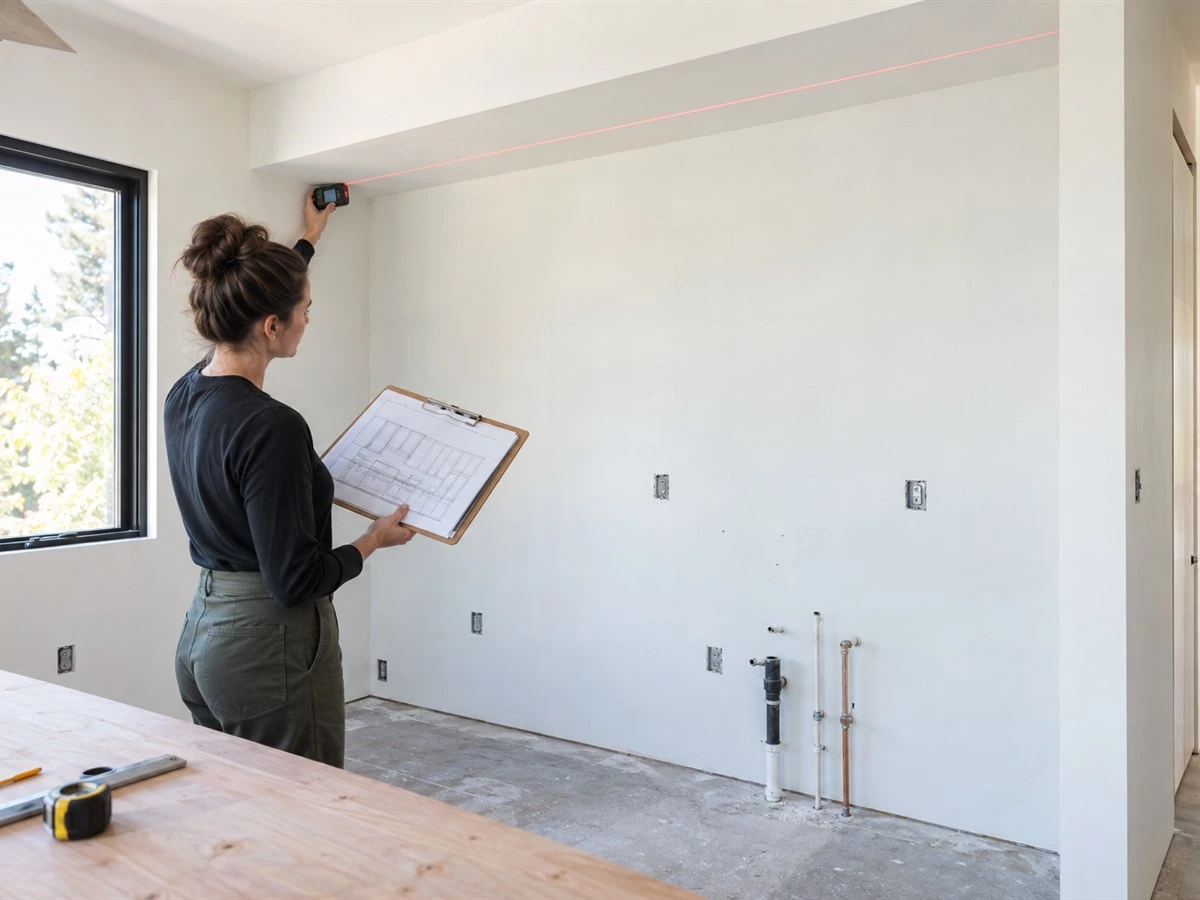

Check 2: Verify Site Measurement and Finished Dimensions

A cabinet can fit the dimensions on a drawing and still fail to fit the finished room. Before approval, confirm where the dimensions came from: a site measurement, architectural drawing, design drawing, or provisional layout. The drawing should not create false certainty when final wall finishes, ceiling conditions,s or appliance selections are still pending.

Review the Finished Condition, Not Only the Raw Opening

Cabinet dimensions need to work with the completed room. Check finished floor level, wall tile thickness, wall panels, skirting, ceiling bulkheads, beams, columns, window trims and door architraves. In older buildings or renovation projects, walls may not be straight, corners may not be square,re and ceilings may vary across one cabinet run.

Identify Fillers, Scribes and Adjustment Areas

Where a cabinet meets an irregular wall or ceiling, the drawing should show whether a filler, scribe, adjustable panel, or other finishing allowance is planned. “Site adjustment” is not a complete drawing instruction unless the affected location, design intention, and responsible party are understood.

Coordinate Appliances and Fixed Building Elements

Appliance openings should be reviewed against the selected appliance documentation, not a generic assumption. Confirm refrigerator, oven, dishwasher, cooktop, wine cooler, washing machine or dryer requirements together with nearby windows, door swings, radiators, vents, switches and access panels.

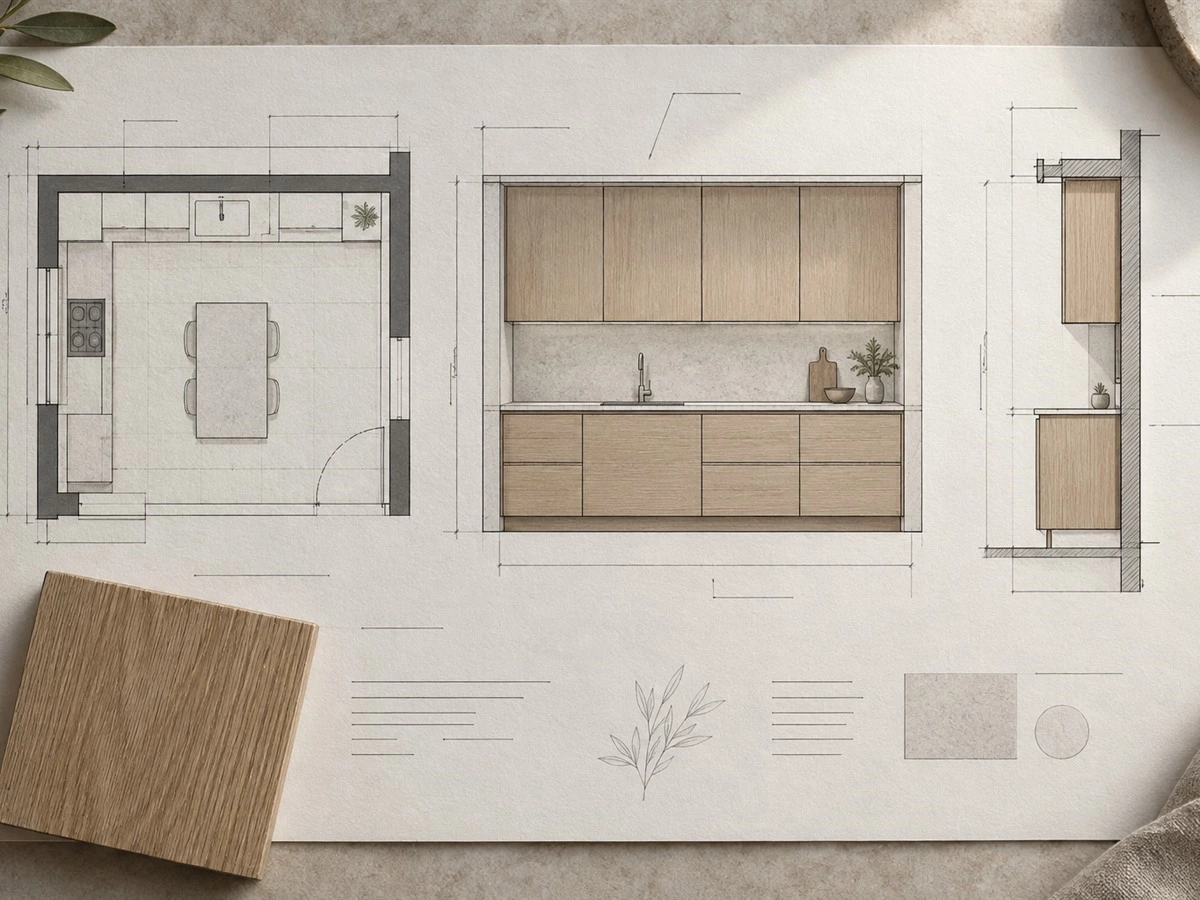

Check 3: Compare Plans, Elevations and Sections for Consistency

One of the most useful cabinet shop drawing checks is also one of the simplest: choose a cabinet code and compare it in every relevant view. A pantry, vanity, wardrobe tower or TV wall unit should show the same width, height, depth, door count, drawer arrangement and visible-panel relationship wherever it appears.

Start with cabinets that are difficult to change after production: tall units, corner cabinetry, island panels, appliance housings, full-height wardrobes, bathroom mirror cabinets and wall-panel systems. These components often connect with ceilings, appliances, walls, or other trades, so a missing detail can become a costly site decision later.

• Does the cabinet depth shown in the floor plan match the depth implied by the section?
• Does the elevation show the same number of doors and drawers as the cabinet schedule?
• Are visible end panels, fillers, and toe kicks shown consistently?
• Does the ceiling height in the elevation match the section and site information?
• Are the appliance openings and service spaces coordinated in all relevant views?

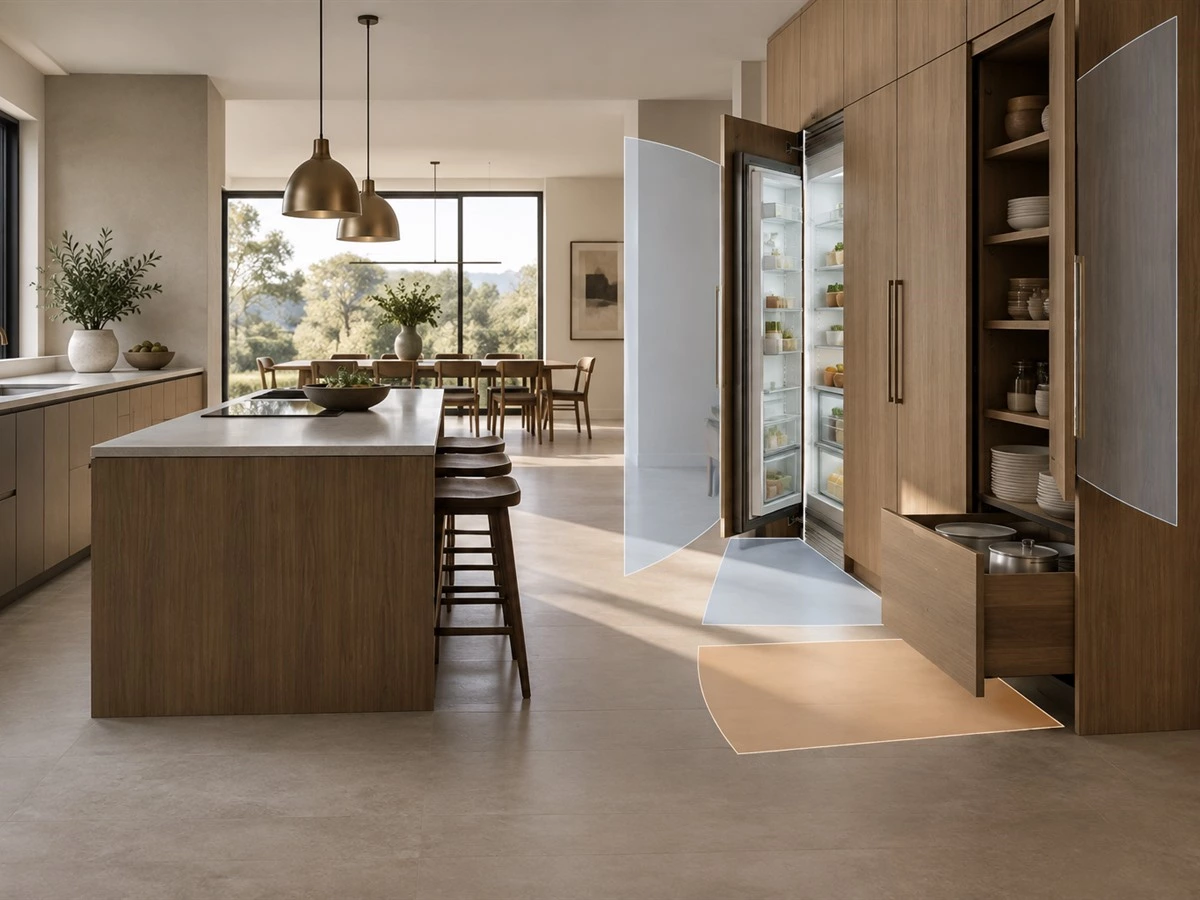

Check 4: Review Doors, Drawers and Appliance Clearances

Cabinet doors and drawers need room to operate in the finished space, not only in a front elevation. Review opening directions, drawer pull-out, handle projection, appliance doors, and user circulation together. This check is particularly important around corners, narrow kitchens, islands, hallways, laundry rooms,s and bedroom wardrobes.

A drawing should make it possible to ask practical questions: Can the refrigerator door open fully? Can a dishwasher or oven be used without blocking a route? Will two cabinet doors collide? Is there enough space to access a drawer beside an open internal door? Does a wardrobe drawer pull out cleanly past the door system?

If an appliance is selected, use its actual installation information. If it remains unselected, state this as an open item. A cabinet opening should not be released as “approved” merely because a placeholder appliance symbol appears in a drawing.

Check 5: Coordinate Electrical, Plumbing, Lighting and Ventilation Interfaces

Cabinetry often sits around services that are designed by other trades. Shop drawings do not replace electrical or plumbing documentation, but they should show enough coordination for cabinet fabrication and installation. Review outlet locations, water points, drainage, ventilation grilles, cable routes, switches, appliance connections,ns and service access where they affect cabinet panels, drawers, backs, or internal fittings.

Mark Service Points in Relation to Cabinet Components

A power point behind a drawer, a plumbing point inside a cabinet without access, or a vent blocked by a panel can create avoidable site rework. Where relevant, the drawing should show the relationship between the service point and the cabinetry—not simply a generic note that services exist somewhere nearby.

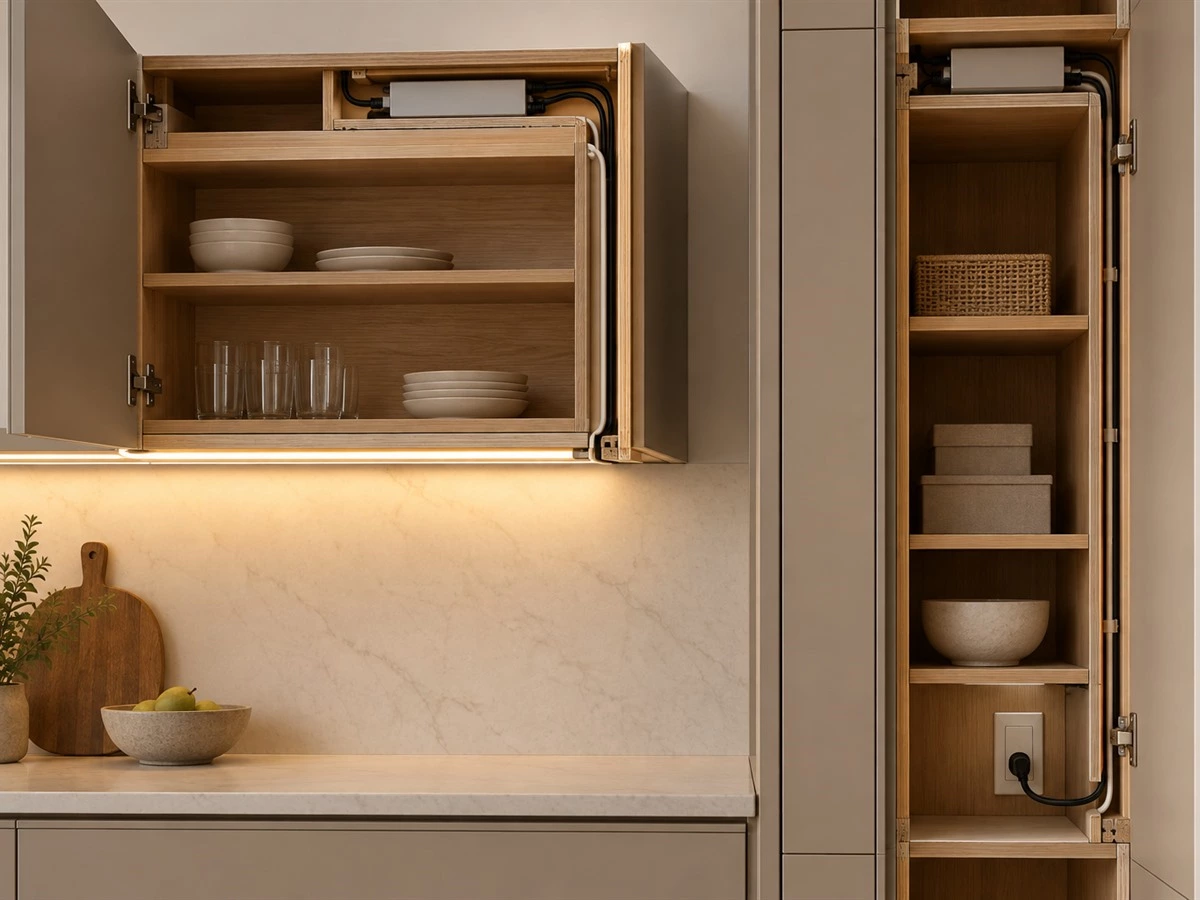

Keep Lighting Components Accessible

For integrated cabinet lighting, confirm fixture positions, cable exit points, driver locations, and a practical service method before drilling and fabrication. Lighting drivers should not be concealed behind permanently inaccessible panels. For a deeper review of lighting coordination, link to the Cabinet Lighting Wiring guide.

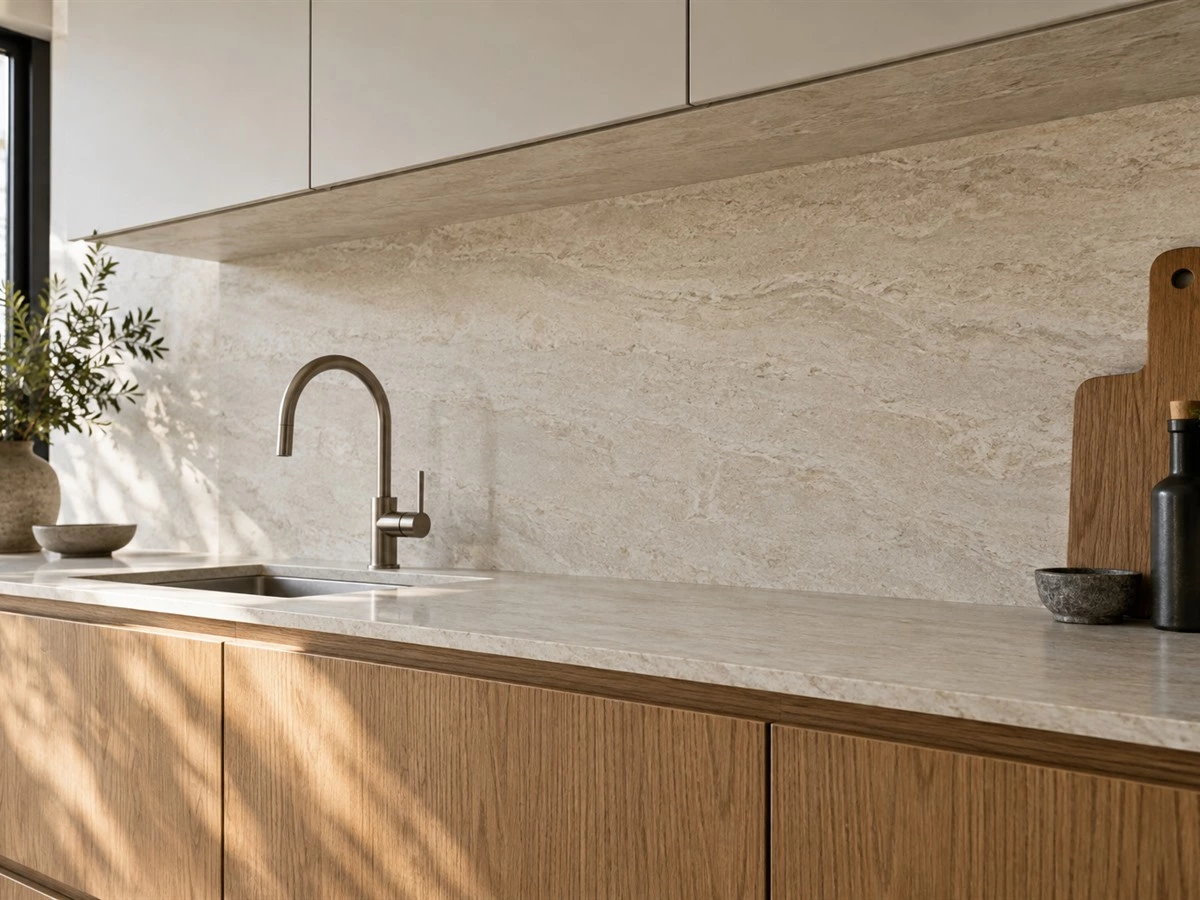

Check 6: Review Countertops, Splashbacks and Wall-Panel Interfaces

Cabinet shop drawings should show where cabinetry stops and another trade begins. Kitchens may connect with stone countertops, splashbacks, wall panels, glass, metal trims or appliance surrounds. Bathrooms may connect with tile, vanity tops, mirrors and wall-mounted fixtures. Living-room cabinetry can meet decorative wall panels, skirting, ceiling details and recessed lighting.

Review cabinet height against finished floor level, countertop thickness, support requirements and planned upstands. Confirm whether wall panels sit behind, beside or above the cabinetry. Where different materials meet, make sure the intended gap, shadow line, trim or overlap is clear enough for the project team to coordinate.

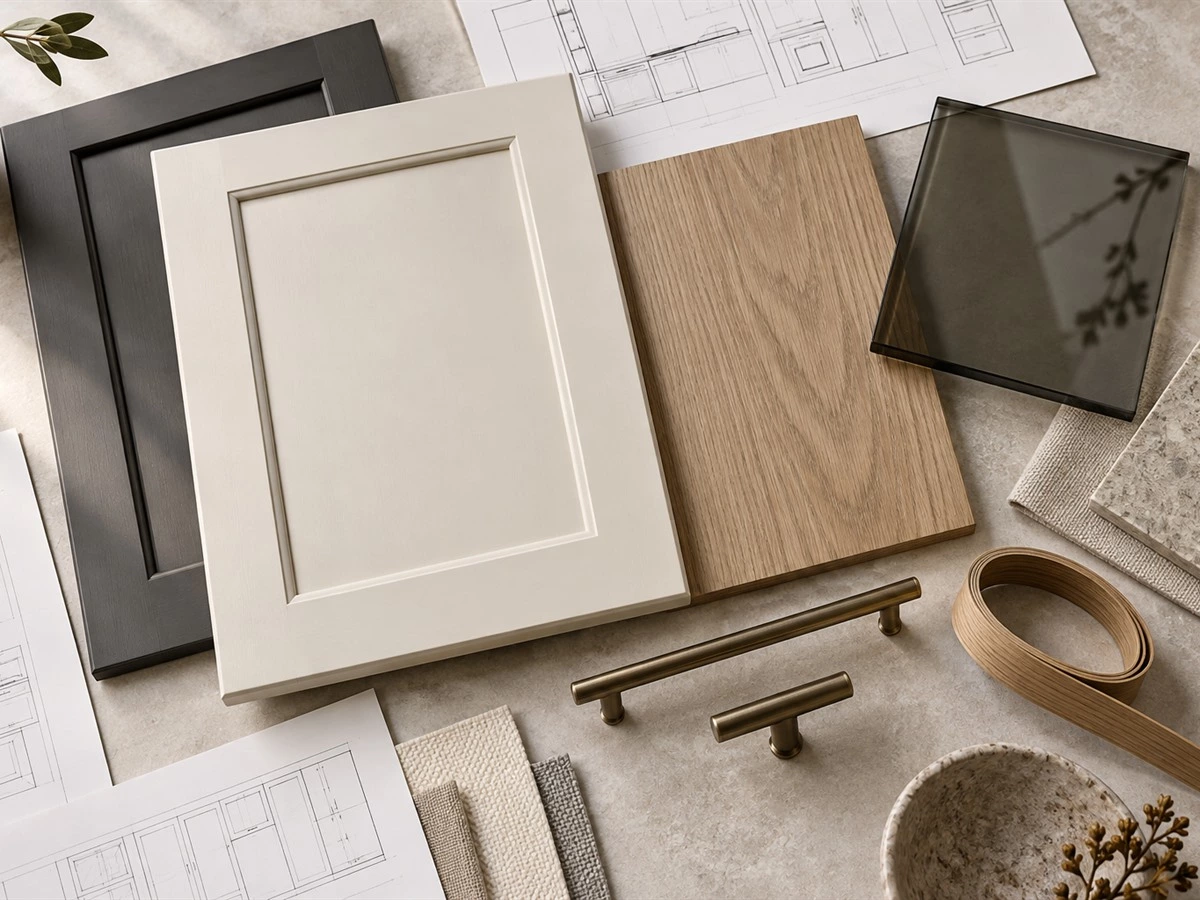

Check 7: Match Materials, Finishes and Hardware to the Drawing Codes

Shop drawings should connect the visual specification to the actual cabinet codes. This means checking not only the main door finish, but also visible end panels, fillers, open shelves, toe kicks, internal cabinet colours, handles, glass frames, metal details and grain direction where relevant.

Material approval and drawing approval are related but different stages. The approved physical sample confirms the intended appearance and finish direction; the drawing package confirms where that material will be used. Readers who need to review finish chips, door samples, sheen, grain, edge details,s and hardware before release can also consult the Cabinet Sample Approval guide.

• Match each material or finish code to the correct room and cabinet code.
• Confirm whether end panels and fillers use the same face finish as doors.
• Check wood-grain or textured-panel direction on tall doors, base units,ts and visible side panels.
• Confirm handle style, finish and placement for each cabinet type.
• Identify glass, metal, lighting channels and special internal accessories separately.

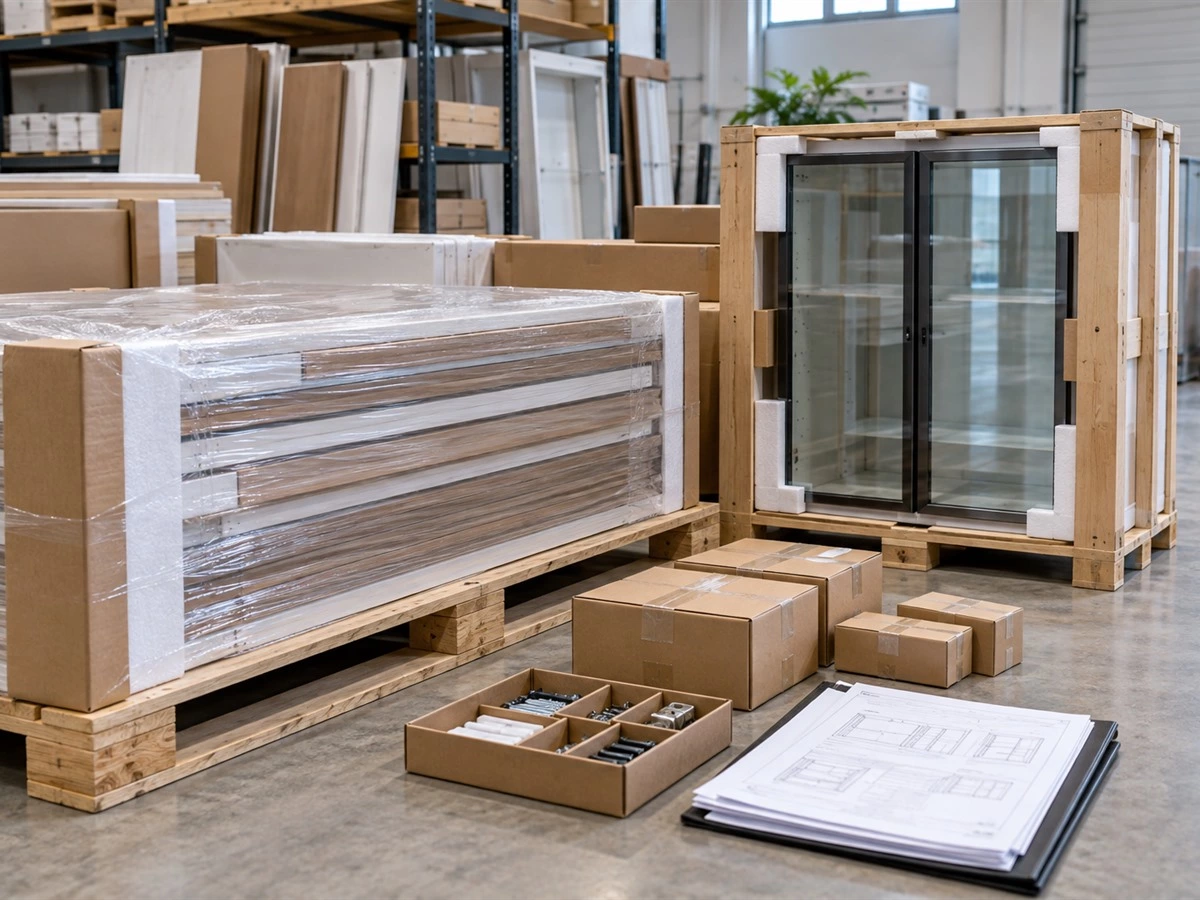

Check 8: Review Packing, Labelling and Installation Readiness

Approved cabinet shop drawings should support the project after manufacturing, not only during design review. Cabinet codes can help the factory organise production, packing and installation information. For larger projects, room-by-room identification is useful when cabinets are delivered in stages or when many similar components arrive on site.

Before production release, consider how the site team will identify tall panels, glass doors, special hardware, lighting components, drawer inserts and other items that cannot be guessed from appearance alone. The drawing package should also help clarify which components require careful handling, separate installation sequencing, or coordination with another trade.

For buyers comparing a standard cabinet program with a documented custom process, the Stock Kitchen Cabinets vs Custom guide explains why drawings, approvals, packing and installation planning should be considered as one connected procurement path.

Check 9: Confirm Revisions, Comments and Final Approval

The final check is document control. A project does not approve a general cabinet concept; it approves a defined drawing revision and a defined scope. The production team needs to know which revision is current, which comments were resolved, and which items remain open.

Use a simple approval record to capture the final decision. The purpose is not bureaucracy. It is to prevent a late appliance selection, finish adjustment, wall change, or lighting revision from being confused with an earlier approval.

Re-approval may be necessary if site dimensions, appliance models, material selections, hardware, countertop details, service locations,s or cabinet layouts change. A later change is not automatically a problem, but it should be visible, reviewed, and connected to the correct drawing revision.

Cabinet Shop Drawing Checklist Before Production Approval

Common Cabinet Shop Drawing Approval Mistakes

Approving a Rendering Instead of Fabrication Information

A rendered image can explain style and colour direction, but it rarely answers cabinet depths, panel interfaces, appliance requirements, service locations, or cabinet identification. Use the rendering as a design reference, not as the sole production document.

Checking Only the Main Kitchen Elevation

Many issues appear outside the front elevation: cabinet depth in plan, ceiling conditions in section, appliance clearance, drawer pull-out, service routes,es and site tolerances. Review the drawing package as one connected system.

Treating “Site Adjustment” as a Complete Solution

Where a site adjustment is genuinely necessary, identify the exact location, intended finish, and responsibility. A vague note cannot replace a coordinated detail.

Allowing a Material Change Without Updating the Drawing

A changed door finish, handle, panel thickness, or appliance model may affect more than appearance. Update the relevant schedule, drawing revision,n and approval record before the affected cabinets move forward.

Releasing Production While Critical Questions Remain Open

Do not hide unresolved items inside informal messages. If a question affects fabrication, installation, or visible quality, list it clearly and close it before the affected scope is released.

Frequently Asked Questions

What are cabinet shop drawings?

Cabinet shop drawings are project-specific fabrication documents that show cabinet layout, dimensions, elevations, materials, hardware, and coordination details before custom cabinetry is produced.

Who should approve cabinet shop drawings?

The approval process depends on the project. It commonly involves the buyer, designer, builder,er or project manager, with relevant input from appliance, electrical, plumbing, countertop, and installation teams.

Are cabinet shop drawings the same as architectural drawings?

No. Architectural drawings define the wider building design. Cabinet shop drawings develop the cabinetry scope and its interfaces, so they need to be coordinated with the relevant project documents and final site conditions.

What should be checked before approving cabinet fabrication drawings?

Check scope, final dimensions, cabinet codes, plans and elevations, opening clearances, appliances, service points, materials, interfaces, revision status, and installation readiness.

What happens if site dimensions change after drawing approval?

The affected cabinetry should be reviewed against the changed condition. The project team should document whether revised cabinet shop drawings and a new approval are needed before production or installation continues.

Release Production Only When the Drawing Package Is Coordinated

The best cabinet shop drawings are not the ones with the most pages. They are the ones that allow the buyer, designer, factory, and installation team to understand the same cabinet package without relying on assumptions. When cabinet codes, dimensions, openings, service points, materials, interfaces,s and revisions are coordinated before production, the project has a clearer basis for manufacturing, packing, and installation.
