Linen closet dimensions should follow the size of your folded linens and storage baskets. For early planning, 12–16 inches of usable shelf depth is a practical range to test for many towels and sheet sets; bulky bedding may need 18–24 inches and a different access strategy. Shelf spacing should equal the stored item height plus room to lift it out. For homeowners, designers and project buyers, this guide explains how to distinguish exterior cabinet dimensions from usable storage, choose practical shelf openings and check door access before approving a built-in linen cabinet.
How to use the dimensions in this guide
The dimensions below are preliminary planning suggestions, not universal cabinet standards or building-code requirements. Test them against your actual folded items, storage containers, selected hardware, and finished site measurements. Metric equivalents are rounded for readability; production drawings should use one agreed primary unit.
Linen Closet Dimensions at a Glance

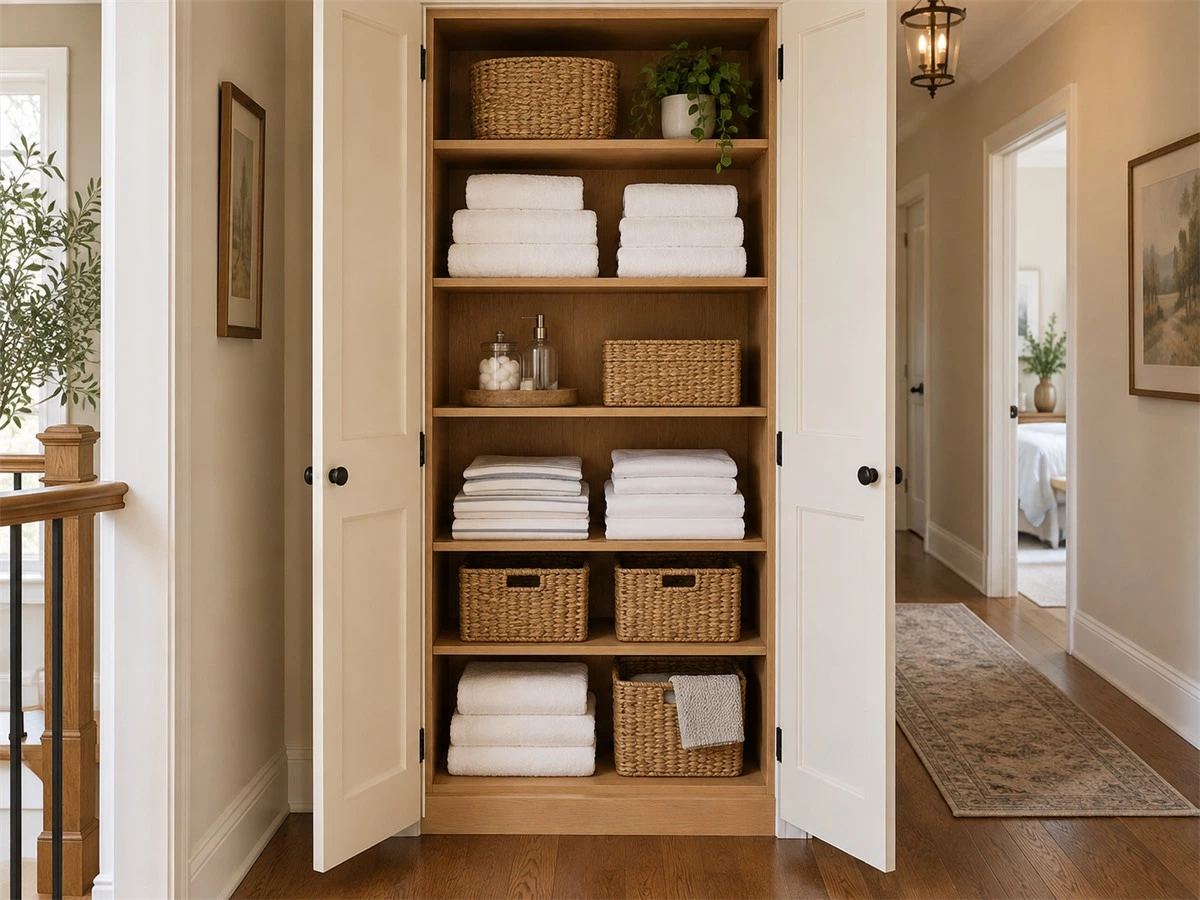

A linen closet stores clean household textiles such as towels, sheets, pillowcases, and spare bedding. It may be a shelving system inside a finished recess or a complete cabinet with side panels, back,k and doors. These two constructions can have different usable dimensions even when their outside measurements look similar.

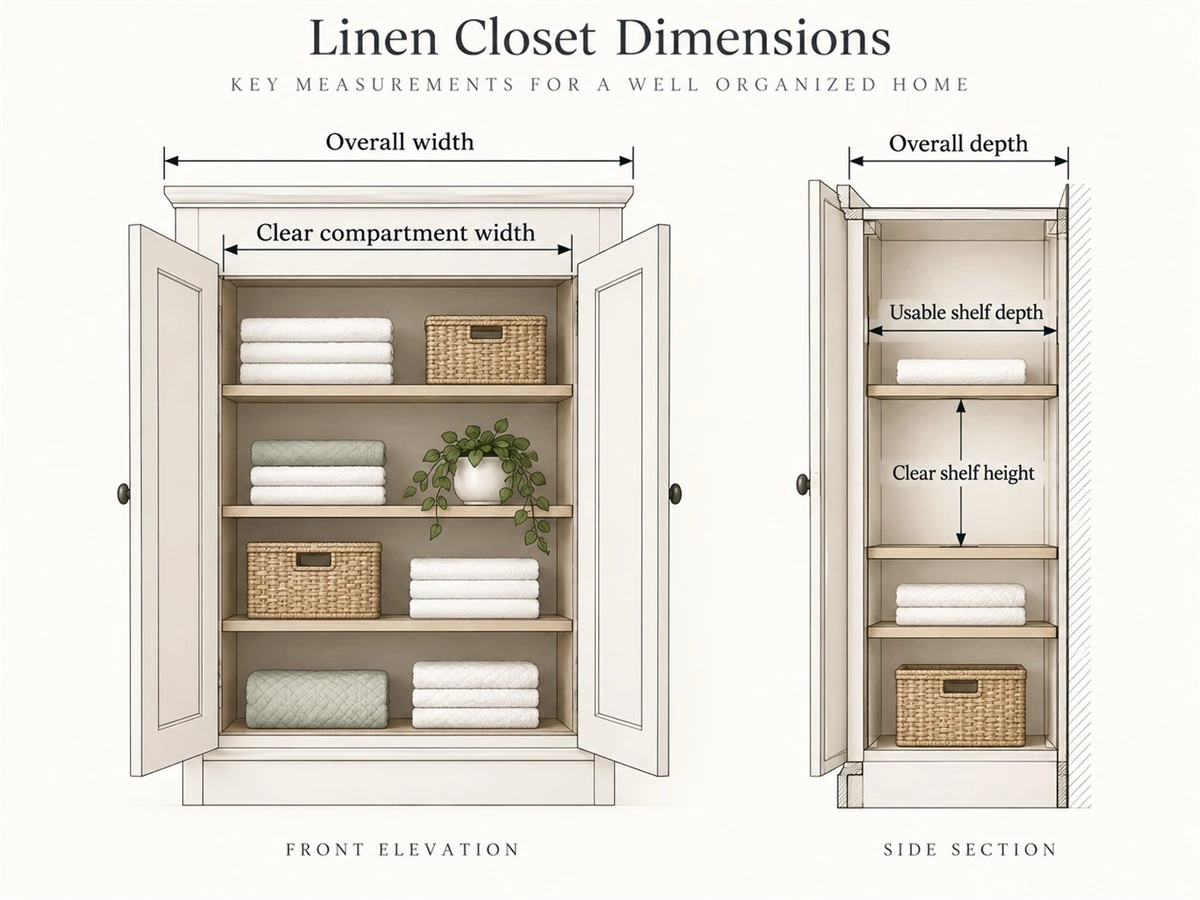

Start With Usable Storage Dimensions
Before comparing cabinet sizes, identify what each measurement describes. A wall opening tells you where the cabinet must fit. An internal shelf measurement tells you what can be stored. The door opening tells you whether that item can be removed.
| Measurement | What it means | Why it matters |
|---|---|---|
| Finished opening | The available space after the relevant wall, floor, and trim finishes | Determines installation fit and required allowances |
| Overall cabinet dimensions | The cabinet’s external width, height,t and depth, with the drawing stating whether doors are included | Coordinates the cabinet with the room and adjacent finishes |
| Clear compartment width | The unobstructed width between the compartment sides | Determines how many stacks or baskets fit side by side |
| Usable shelf depth | The depth available for storage without interfering with the back doors or hardware | Determines whether folded items fit fully inside |
| Clear shelf height | The vertical opening from the shelf surface to the underside of the shelf or obstruction above | Determines stack height and lifting room |
| Clear access opening | The open remains when the selected doors are open | Determines whether baskets and bedding can pass through |
Practical Starting Ranges for Shelf Planning
Use the following ranges to build an initial layout, then replace them with dimensions based on your inventory. A thick bath sheet folded into thirds may need a different shelf from a thinner towel folded into quarters.
| Stored items | Usable depth to test | Clear height to test | Main fit check |
|---|---|---|---|
| Hand towels and smaller folded items | 12–14 in. / approximately 305–355 mm | 8–12 in. / approximately 205–305 mm | Actual folded footprint and stack height |
| Bath towels and sheet sets | 14–16 in. / approximately 355–405 mm | 10–14 in. / approximately 255–355 mm | Stable stacking and space to lift out a set |
| Larger blankets and bulky bedding | 18–24 in. / approximately 455–610 mm | 16–24 in. / approximately 405–610 mm | Folded or bagged size and access to the rear |
| Storage baskets | Based on the maximum outside depth | Basket height plus tested removal allowance | Rims, handles, hinges, and door opening |
Why There Is No Single Correct Closet Width
Closet width should follow the number of stacks or containers you want to store beside one another. Two towel stacks may need less width than two large baskets, while a wide blanket can work better in a separate compartment. Add the thickness of side panels and dividers only after the required internal widths are clear.
Total height also depends on the finished opening, installation method, and storage plan. A taller cabinet can add capacity, but its upper compartments should still have a realistic access strategy.
Measure Your Linens Before Choosing Cabinet Sizes
Make a Storage Inventory
Count the items the cabinet must hold when clean laundry has been put away, not only what happens to be on the shelves today. Include spare towels, complete bedding sets,s and seasonal items that will return to storage at different times of the year.
Separate daily towels, regularly used sheet sets, guest bedding, seasonal blankets, and small accessories. Record the quantity, stored size,e and frequency of use for each category. This shows where you need several smaller openings and where one larger compartment will be more useful.
Measure Items in Their Normal Stored Form
Fold a representative towel stack and bedding set as the household normally stores them. Measure width, depth, and height without pressing them into an unrealistically tight bundle. For bedding bags, measure the filled bag rather than the empty packaging dimensions.
Measure baskets at their widest points. A tapered basket may be wider at the rim than at the base, and handles can extend above or beyond the published body dimensions. If several baskets must match, confirm the exact model before approving the cabinet interior.
Add Space for Removal
An item can fit on a shelf and still be difficult to remove. Your hand needs somewhere to grip a basket, and a towel stack needs enough room to move without catching the shelf above.
Required clear shelf height = stored item height + practical lifting allowance.
For example, a 250 mm-high basket in a proposed 300 mm clear opening leaves 50 mm above it. That is a trial arrangement, not a universal allowance: a tall handle or a lifting motion may require more space. Test the movement with the basket and intended user before finalizing the shelf position.

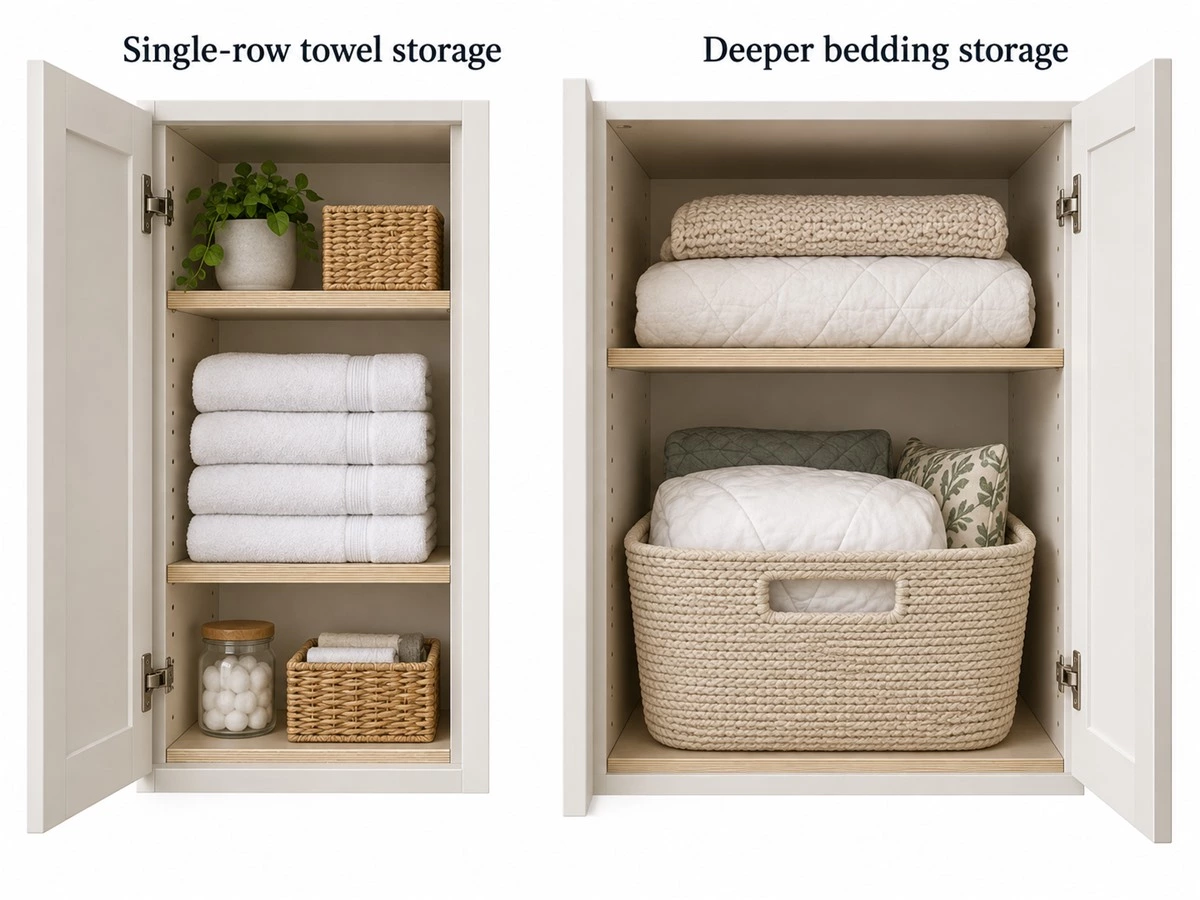

How Deep Should Linen Closet Shelves Be?
Use Shallower Shelves for Visible, Single-Row Storage
A usable depth of approximately 12–16 inches is a starting range worth testing for many folded towels and sheet sets. It can keep items in a single visible row and reduce the need to reach behind other stacks. Shallower storage can also help a built-in cabinet fit within a constrained recess.
The deciding test is simple: the folded item should sit securely on the shelf, fit behind the closed door, and remain easy to retrieve. Larger bath sheets and bedding bundles may not fit this range without a different folding method.
Use Deeper Shelves Where the Stored Items Need Them
Approximately 18–24 inches of usable depth may be worth testing for larger blankets, bedding bags or deep containers. Before selecting that depth throughout the cabinet, check whether smaller items will disappear behind the front row.
A mixed-depth arrangement may be more useful than equally deep shelves everywhere. Another option is to place removable containers on deeper lower shelves, provided their weight and removal path remain manageable.
Avoid Inaccessible Double-Row Storage
A second row adds capacity only when it can be used conveniently. Moving several towel stacks whenever you need a spare sheet set creates extra work and makes inventory harder to see.
For an existing deep closet, consider grouping less-used items in labeled removable containers. Pull-out trays are another option, but they need compatible hardware, enough internal width, and clearance through the door opening. Check the complete system before reducing shelf dimensions around it.
Separate Cabinet Depth From Shelf Depth
Overall cabinet depth may include components that do not provide storage space. Door position, back-panel construction, shelf setbacks,s and internal hardware can all affect the usable depth.
Ask for a section drawing that identifies these components. There is no reliable single deduction that converts every cabinet’s external depth into usable shelf depth. A shelf mounted directly inside a finished recess will also differ from a shelf inside a complete cabinet carcass.
How Much Space Should You Leave Between Shelves?
Measure Clear Height, Not Only Shelf Positions
Clear shelf height is the unobstructed opening above a shelf. Shelf pitch describes the distance between corresponding points on consecutive shelves, such as from one top surface to the next. Shelf thickness occupies part of that distance.

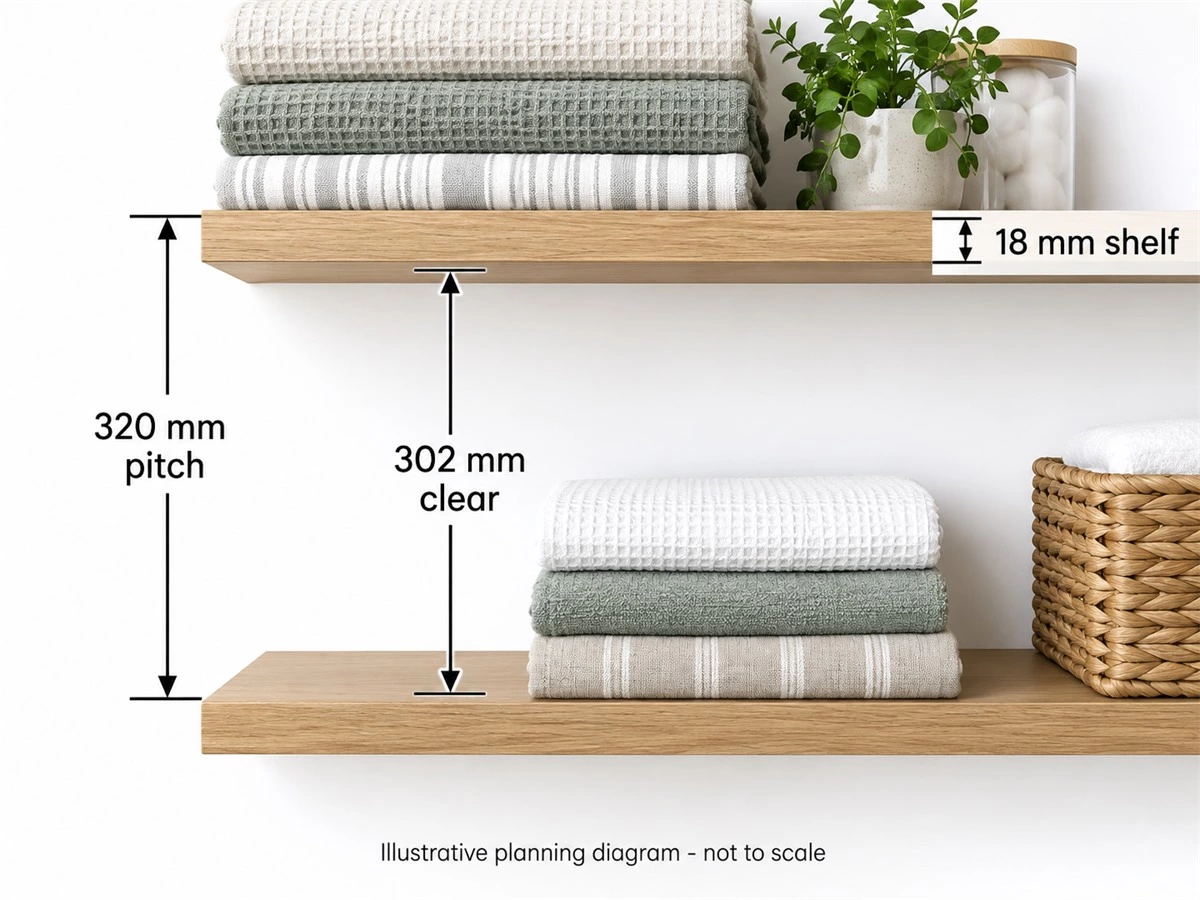

For example, with a 320 mm top-to-top pitch and an 18 mm-thick shelf above, the clear opening is 302 mm, assuming there is no additional obstruction. Writing “320 mm shelf spacing” without defining the measurement can therefore cause an avoidable mismatch.
Match Openings to the Contents
Smaller folded items can use shorter openings, while blankets and bedding bags may need taller compartments. A shelf with generous empty space above a short stack does not automatically provide useful extra capacity; increasing the stack height may make it unstable or difficult to manage.
Assign each proposed opening to a storage category. If an opening has no clear purpose, check whether its height would be more useful elsewhere in the cabinet.
Combine Fixed and Adjustable Shelves
Adjustable shelves allow you to change the layout when baskets, bedding, or household routines change. Fixed shelves may contribute to the cabinet’s construction or support a specific compartment. Their role should be identified before any shelf is moved or removed.
Review the adjustment range, shelf-support arrangement, and any limits around hinges or other hardware. An adjustable shelf is useful only if its available positions suit the items you intend to store.
Allow Baskets to Lift and Slide Out
Check the basket with the door installed and open. The container may need to pass a hinge, clear a handle,e or tilt slightly during removal. A basket that fits the internal compartment can still be too wide for the access opening.
Test a loaded basket where possible. This reveals whether the grip space and shelf height remain practical when the basket carries towels or bedding.
Plan Closet Width and Shelf Support Together
Calculate Each Compartment From Its Contents
Start with the clear width needed for the stored items, then account for the cabinet construction. For two baskets measuring 330 mm wide each, a proposed 20 mm space between them and 20 mm at each side produces this trial layout:

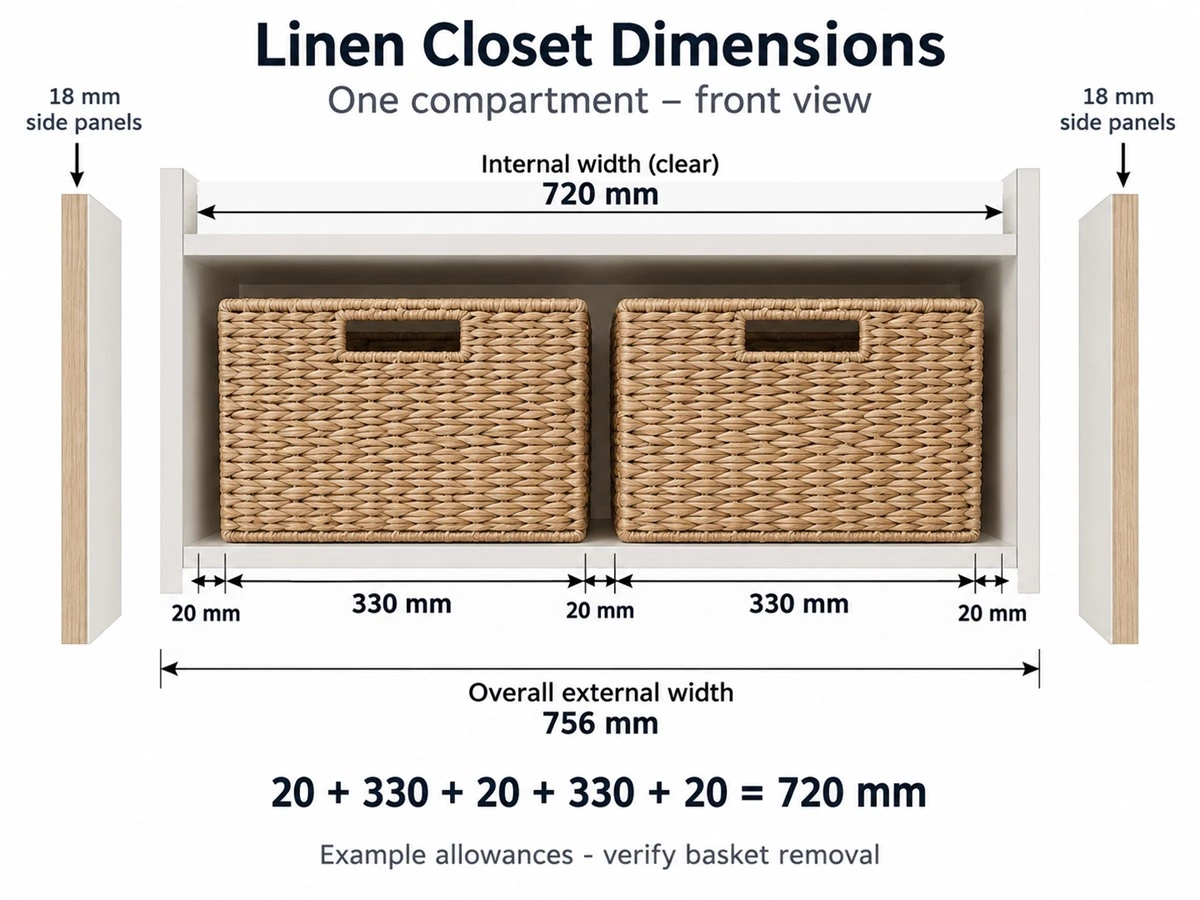

Example clear-width calculation
330 + 330 + 20 + 20 + 20 = 720 mm clear compartment width
With two 18 mm side panels and no internal divider, the nominal carcass width would be 756 mm. This excludes installation fillers, site allowances,s and any additional construction requirements.
The 20 mm gaps are example allowances to test. They do not guarantee hand clearance or removal through the doors. Confirm the basket handles, hinges,es and access opening before accepting the calculation.
Consider Multiple Bays Instead of One Wide Shelf
Dividing a wide cabinet into narrower bays can organize different linen categories and shorten shelf spans. However, every divider also takes away some internal width. A mixed arrangement can preserve a wider compartment for bulky bedding while giving smaller baskets their own sections.
Confirm Shelf Construction and Intended Load
Shelf performance depends on the material, thickness, unsupported span, support system, and stored load. Board thickness alone is not enough to establish a safe or acceptable load capacity.
The specification should identify the shelf material and thickness, support positions, fixing method,d and intended contents. Ask the supplier to confirm the selected shelf system for the proposed span and loading, including heavier-filled baskets where relevant.

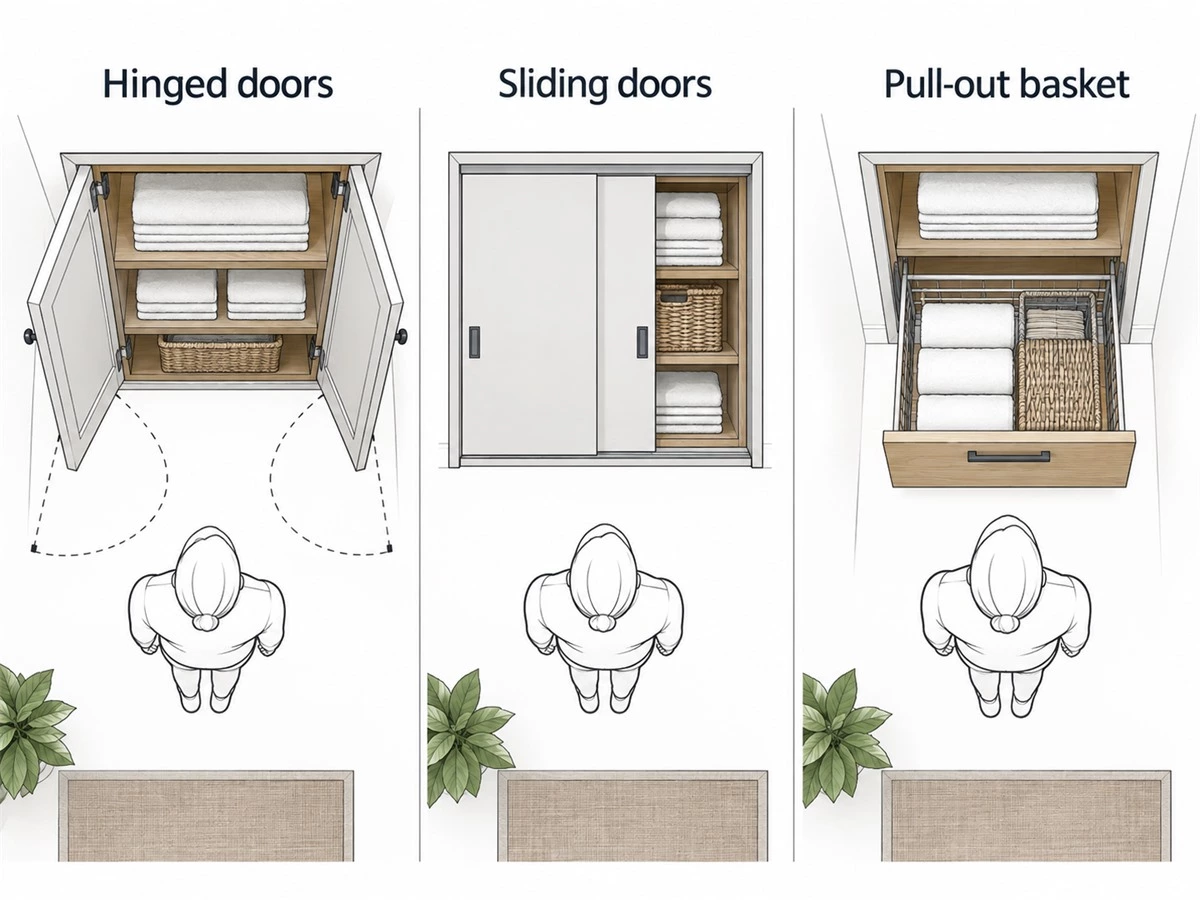

Check Doors, Drawers, and Standing Space
Hinged Doors
Hinged doors can provide good access when they open far enough for the intended contents. Check the selected hinge’s opening angle, nearby walls, trim, and the position of any internal pull-outs. A wall beside the cabinet may prevent the door from reaching the angle shown in a hardware diagram.
Sliding and Bifold Doors
Sliding doors reduce the need for a swinging leaf in front of the cabinet, but generally leave part of the interior covered. Bifold doors occupy some of the opening when folded. Position dividers and baskets so that frequently used storage aligns with the accessible portion of the opening.
Pull-Out Shelves and Baskets
Pull-outs can improve access to deep storage, but the runners, mounting details, and door configuration need to work together. Confirm the required internal width, installed depth, extension distance, and load rating for the exact hardware.
Draw the pull-out fully extended and include the person standing in front of it. The cabinet needs enough room for both the mechanism and the retrieval movement.
Protect the Access Route
Show nearby room doors and circulation routes on the plan. Review both the closed cabinet projection and the temporary space occupied by open doors, baskets, or drawers. Required passage dimensions depend on the project and applicable local requirements.
Where the linen cabinet sits in a corridor, review the hallway cabinet depth and walkway clearance alongside the internal storage layout.

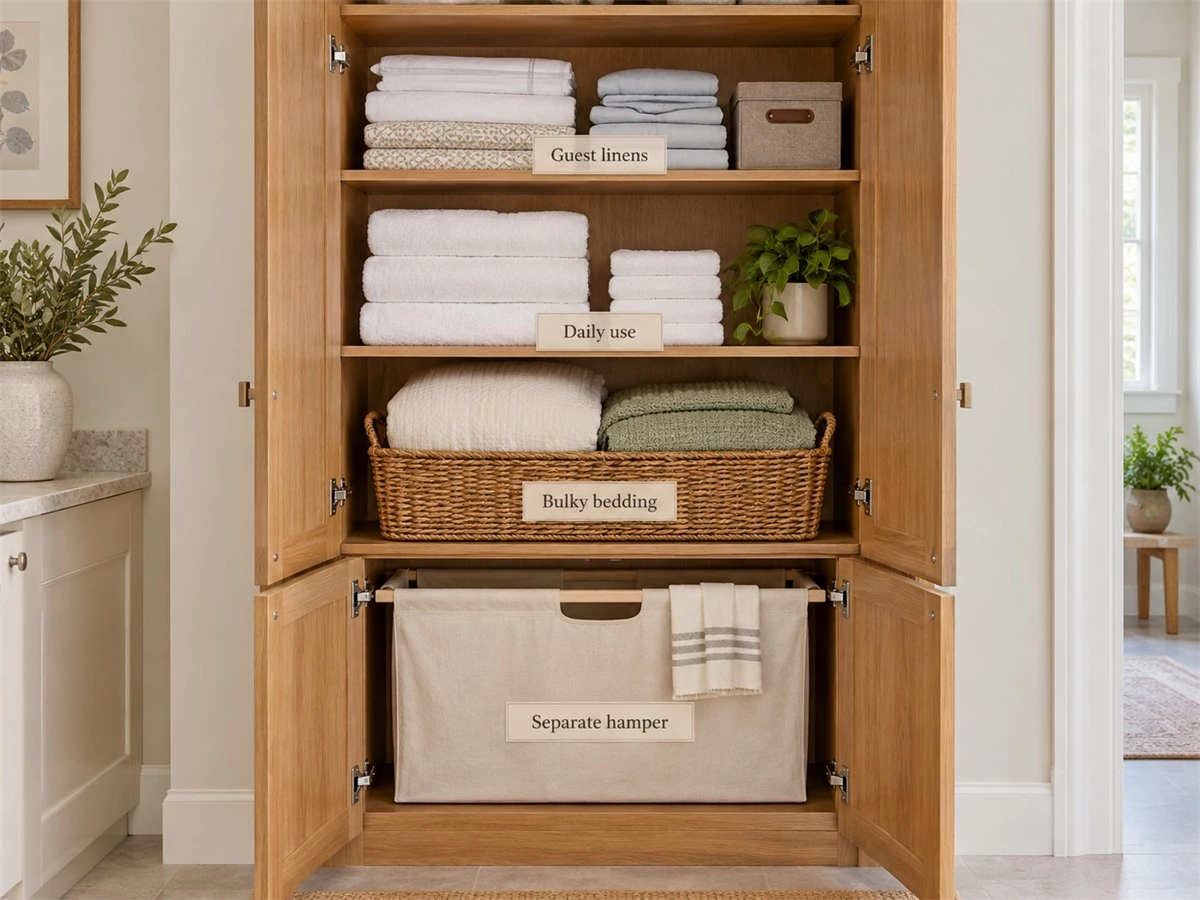

Arrange Storage Zones by Frequency of Use
Keep Daily Linens Within Comfortable Reach
Place everyday towels and regularly changed sheet sets in a zone the intended users can reach comfortably. Test the shelf positions with the household rather than assuming the same reach height works for every adult, child, or person with limited mobility.
Reserve Upper Compartments for Manageable Items
Lightweight guest linens and less-used textiles can occupy upper compartments. Avoid treating the highest shelf as the automatic location for the largest bundle: a bulky item may be difficult to control even when it is not especially heavy.
Use Lower Compartments for Larger Containers
Lower compartments can suit removable bedding baskets and larger bins. Check the weight when filled, the effort required to lift them, and the space available for cleaning around the cabinet base. For users who find bending difficult, a different arrangement may be more suitable.
Separate Clean Linen From Damp or Soiled Items
Put away textiles only after they are dry. If a hamper shares the cabinet, give it a separate, removable compartment that can be cleaned and emptied easily. A ventilated door does not make damp storage appropriate or resolve a persistent room-moisture problem.
When clean linen storage forms part of a laundry area, coordinate its location with laundry room cabinet planning so washing, drying and putting away remain convenient.

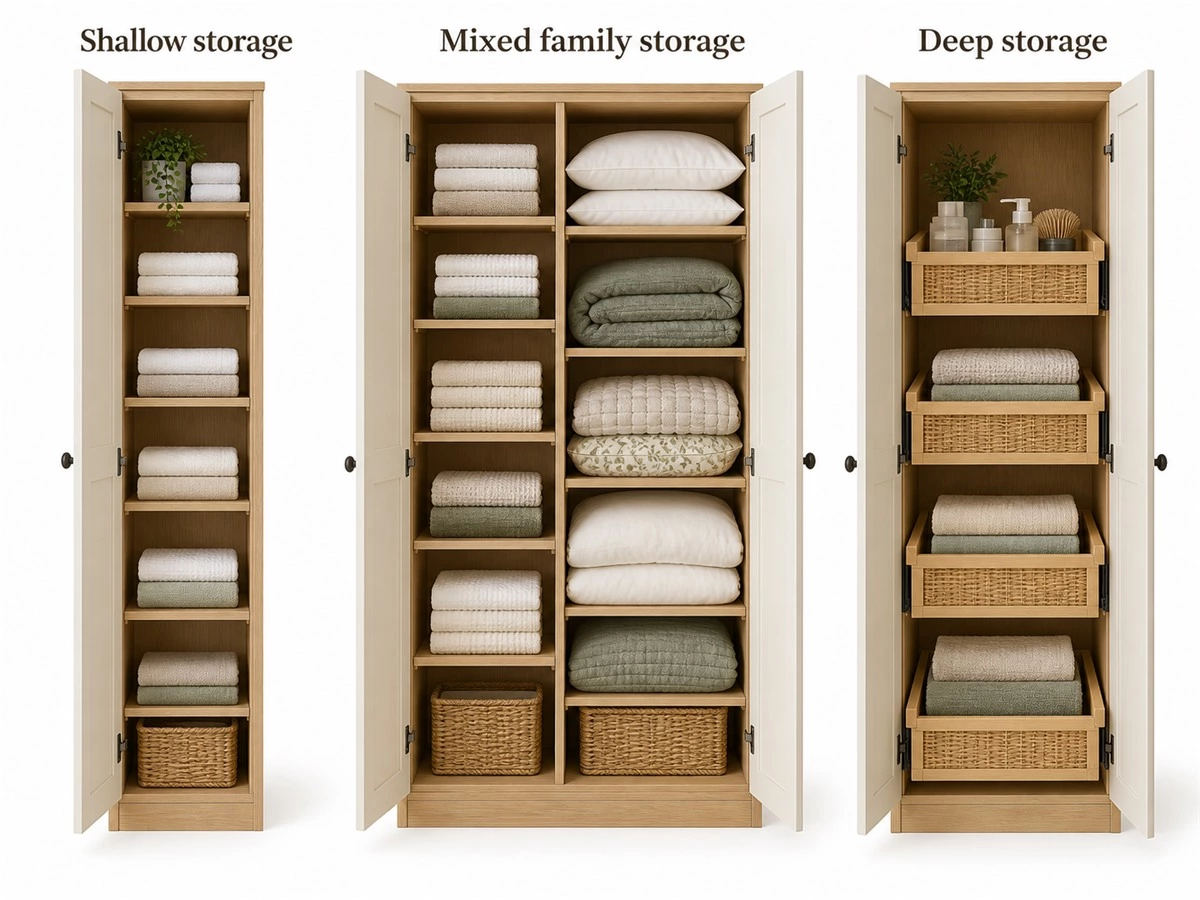

Compare Three Linen Closet Layout Examples
The following layouts are illustrative planning examples. They show how storage requirements change the cabinet interior; they are not records of completed projects.
A Shallow Hallway Linen Cabinet
A shallow cabinet can work well for folded towels and sheet sets stored in one row. Adjustable shelves help fine-tune the openings, while the door arrangement should respect the nearby walking route. Start by testing the largest regularly stored linen bundle. If it does not fit, revise the folding method, increase depth where the room permits,ts or move bulky bedding to another cabinet.
A Family Linen Cabinet With Mixed Compartments
A family cabinet can combine narrower towel and basket bays with a larger bedding compartment. Different shelf heights prevent small items from disappearing inside oversized openings. Labeling sheet sets by bed size or room can make the arrangement easier to maintain.
Size this layout from the full clean-laundry inventory. A cabinet that appears generous while most bedding is in use may be crowded when guest linens and seasonal sets return to storage.
A Deep Existing Closet With Removable Storage
An existing deep recess may suit bedding bags, removable baskets, or selected pull-out trays. Keep frequently used items visible and group rear storage so it can be removed without disturbing several unrelated stacks.
Before ordering pull-outs, check the finished opening and actual door positions. Hardware selected solely from the recess width may not clear the doors or trim.
These arrangements can be developed through custom storage cabinet options, with internal dimensions confirmed separately from the exterior style and finish.
What to Confirm Before Ordering a Custom Linen Closet
Check Finished Site Measurements
Measure the opening width at several heights and the available depth at several positions. Record ceiling height, floor level, skirting, trim, and nearby door swings. Do not assume a recess is square because its front edge looks straight.
Show any services or access panels that must remain reachable. Installation fillers and scribing allowances should respond to actual site conditions rather than being assigned automatically. For a tall cabinet, also confirm the delivery route and whether assembly or positioning inside the room affects the design.

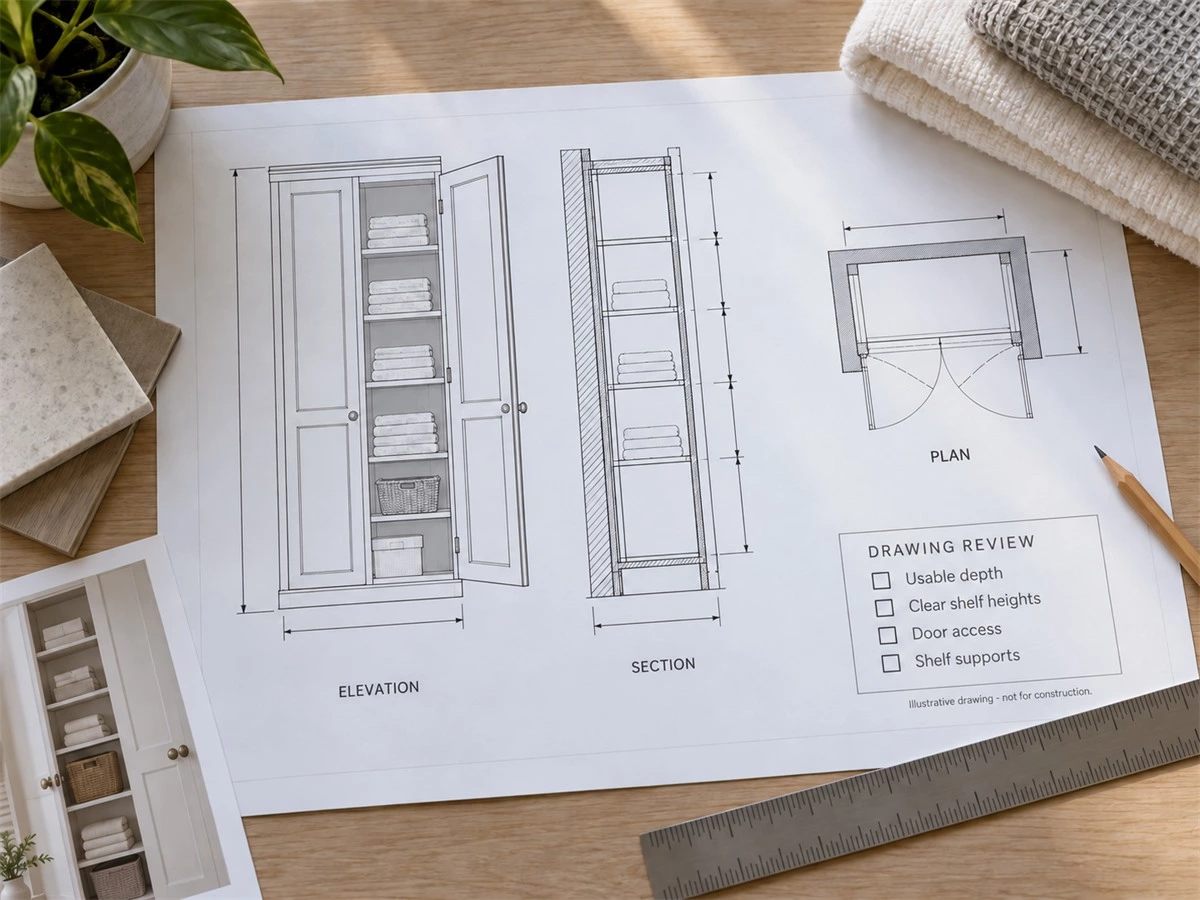

Approve the Internal Dimensions
Review the elevation, section, and plan together. The elevation should show clear shelf openings; the section should show usable depth; and the plan should show doors, hinges,s and retrieval space.
If the design is built around specific baskets, include their model and outside dimensions in the approval information. Changing the containers after production can undo an otherwise accurate layout.
Specify Materials, Supports and Finishes
Confirm the carcass and shelf material, thickness, exposed-edge treatment, support system, and finish. Smooth, cleanable surfaces and neatly finished edges help prevent textiles from catching during everyday use.
Match the material specification to the room conditions. A cabinet beside a bathroom still needs a suitable location and sensible moisture management; a moisture-resistant board designation does not make the assembled cabinet waterproof.
Review Installation and Functional Checks
Fixing details should suit the cabinet and supporting wall or substrate. After installation, check shelf stability, door operation, basket removal, and any pull-out mechanism using representative stored items.
| Check | Required information | Verification method |
|---|---|---|
| Usable shelf depth | Shelf depth and relevant setbacks | Compare with folded items and the closed-door position |
| Clear compartment width | Internal bay dimensions and obstructions | Test baskets, gaps, and hand access |
| Shelf spacing | Clear openings and adjustment positions | Compare with stack heights and lifting movements |
| Door access | Opening angle, hinge position,n and clear aperture | Check the full removal path |
| Shelf support | Material, thickness, span, supports,ts and intended load | Confirm suitability with the selected system supplier |
| Installation fit | Overall dimensions, allowances,ces and fixing details | Compare with finished-site measurements and installation method |
For projects that include several rooms, coordinate the linen cabinet’s external finish and proportions with whole-house cabinetry while keeping its interior specific to linen storage.
If using a proprietary shelving system, follow the instructions for its exact components. The ClosetMaid installation and planning guides provide an example of manufacturer guidance for measuring space and selecting compatible shelving and hardware. They should not be used as installation instructions for a different cabinet system.
Common Linen Closet Dimension Mistakes
| Mistake | Likely problem | Better approach |
|---|---|---|
| Using exterior depth as storage depth | Items may interfere with doors or hardware | Specify usable shelf depth in the section |
| Copying a layout without measuring linens | Actual bundles do not match the proposed openings | Measure representative folded items first |
| Making every opening the same height | Some compartments are cramped, while others waste space | Use mixed heights based on storage categories |
| Making every fixed shelf very deep | Rear items become difficult to see and retrieve | Test shallower shelves or removable storage |
| Ignoring handles and hinge intrusion | A basket fits inside but cannot pass through the opening | Check the complete removal path |
| Leaving shelf support unspecified | Performance under the intended load remains uncertain | Confirm material, span, supports,s and loading together |
| Overfilling high compartments | Retrieval becomes awkward | Keep upper items lightweight and manageable |
| Ordering from unfinished opening dimensions | Finishes or uneven surfaces affect the fit | Verify finished conditions and installation allowances |
Frequently Asked Questions
What Are Standard Linen Closet Dimensions?
There is no single set of dimensions suitable for every linen closet. Width and height depend on the available space and storage inventory. For early planning, test 12–16 inches of usable shelf depth for many towels and sheet sets, then adjust the design to the actual contents and cabinet construction.
How Deep Should Linen Closet Shelves Be?
Shelves should be deep enough to hold the folded item securely without creating unnecessary hidden storage behind it. Many towel and sheet arrangements can be tested within 12–16 inches of usable depth. Larger bedding may need more depth, removable containers, or a separate compartment.
How Far Apart Should Linen Closet Shelves Be?
Use the height of the intended stack or basket plus room to grip and remove it. Measure the clear opening between shelves, not just the distance between shelf positions. Mixed openings usually suit a varied linen inventory better than repeated spacing.
Is a 24-Inch-Deep Linen Closet Too Deep?
It can be useful for bulky bedding or larger containers. For smaller towels and sheets, however, a deep fixed shelf may create a rear row that is difficult to reach. Also check whether the 24-inch dimension describes the exterior cabinet or the actual usable shelf.
How Wide Should a Linen Closet Be?
Calculate the clear width from the stacks or baskets stored side by side, including practical gaps. Then add the specified panels, dividers, and installation allowances. Check that the door opening provides access to the planned compartment width.
Are Adjustable Shelves Better for Linen Storage?
Adjustable shelves make it easier to accommodate different baskets, bedding sizes, and storage habits. Some fixed shelves may still be needed as part of the cabinet construction. Confirm which shelves can move and the available adjustment range.
Final Planning Check
Useful linen closet dimensions begin with an inventory and end with a retrieval test. Measure the folded items, define usable shelf space separately from exterior cabinet size, and check the supports and door opening before approving the drawings.
The next step is to place those measurements on a cabinet elevation and section. Give each compartment a purpose, confirm the intended containers,s and test how they come out. That turns a general storage idea into a layout that can be specified, built, and used with confidence.
