When a cabinet door, drawer front, hinge, handle, glass insert, light, or trim needs attention after installation, the fastest path is not simply asking for a replacement by colour or by a room photograph. Accurate cabinet replacement parts depend on clear project records: cabinet codes, room references, final drawings, finish details, hardware information, dimensions, and useful photographs.
Many cabinet components can look similar while using different drilling positions, dimensions, finishes, edge details, opening directions, or mounting interfaces. A record kept during approval, installation, and handover makes a later service request easier to assess and reduces avoidable uncertainty.
This guide explains what to record for future cabinet replacement parts, how to identify common components, and how to prepare a clear replacement-part request. It does not guarantee that an exact historical component remains available; material batches, product ranges, finish ageing, and hardware availability can change over time.
Which Cabinet Parts Most Often Need Replacement?

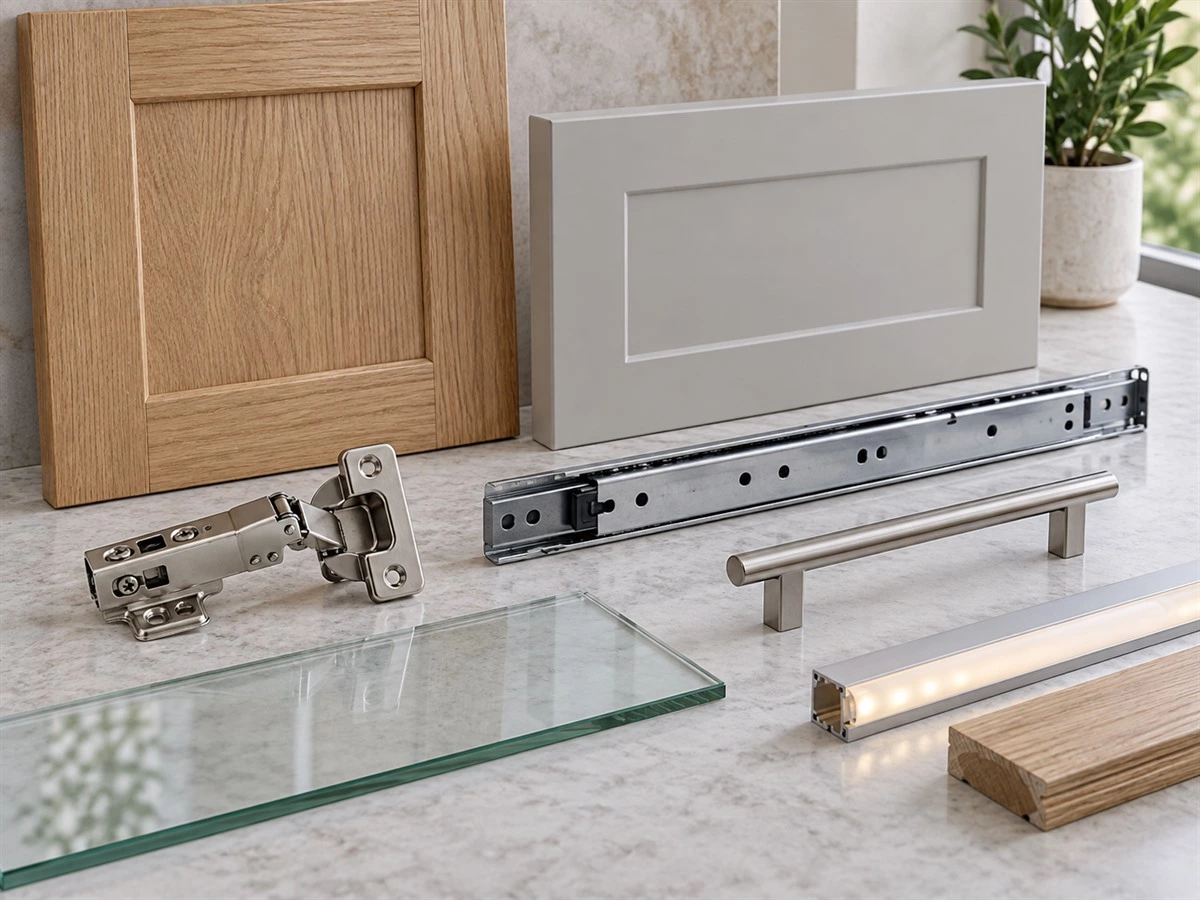

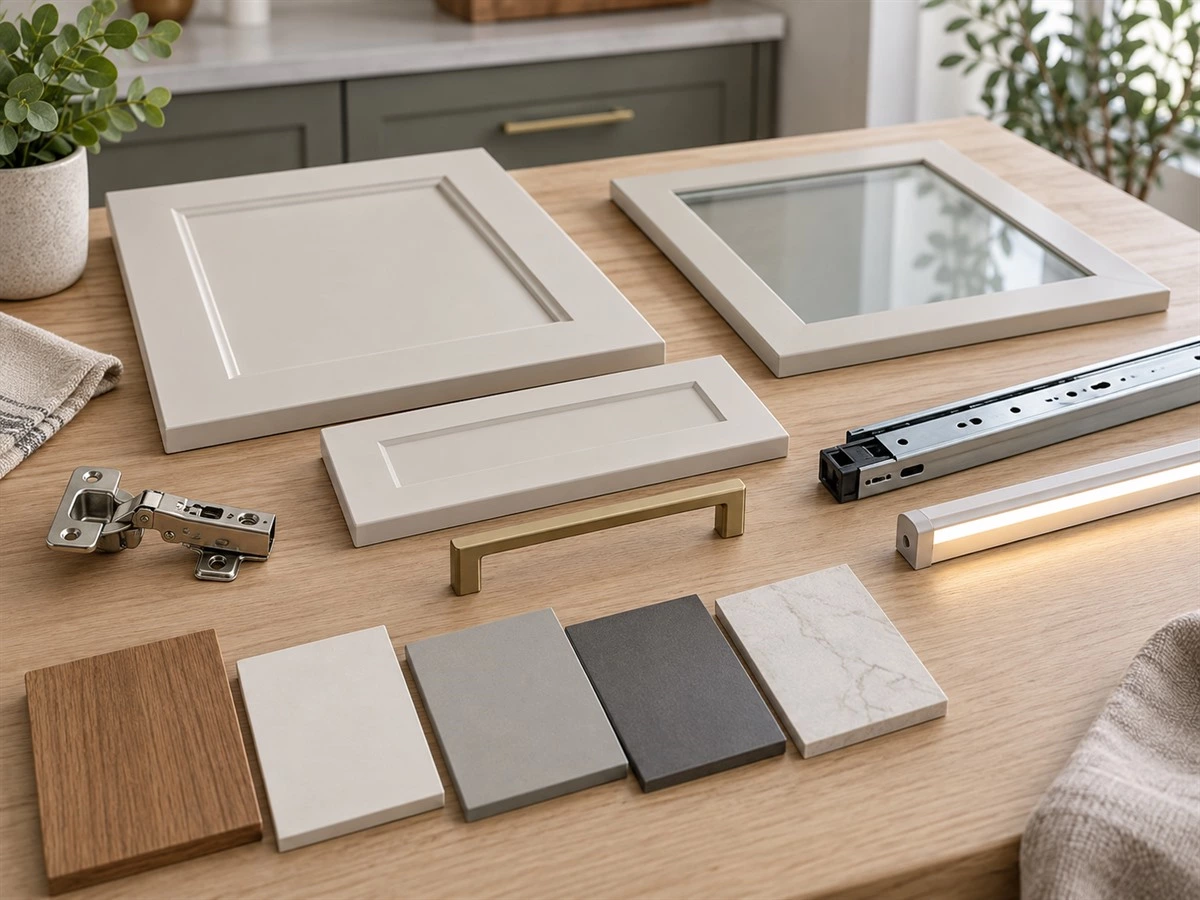

Replacement needs are not limited to one room or one cabinet type. A whole-home project may include kitchens, wardrobes, bathroom cabinets, laundry storage, display cabinets, wall panels, and interior doors. Identifying the specific component and its original application is the first step toward a useful service request.
Door panels and drawer fronts
Door panels and drawer fronts are among the most visible components in a cabinet project. They may need attention after impact damage, surface scratches, moisture exposure, incorrect drilling, or a later change to handles or accessories.
To identify a replacement door panel or drawer front, retain the cabinet code, room name, panel width, height, thickness, opening direction, handle position, drilling detail, finish reference, edge treatment, and grain direction where applicable. A panel that appears visually similar may still be unsuitable if the holes, dimensions, or construction do not match.
Hinges, drawer slides and opening hardware
Hinges, hinge plates, drawer slides, lift-up mechanisms, push-to-open systems, handles, pulls, and knobs all need specific references. A concealed hinge may look ordinary from the front, but its opening angle, mounting plate, drilling location, and cabinet interface can vary.
For drawer slides, record the drawer location, slide type, length, mounting method, and any relevant load or extension requirement. For handles and pulls, record the finish, overall length, centre-to-centre hole spacing, fixing method, and existing drilling positions on the panel.
Glass, lighting and display accessories
Glass inserts, framed glass doors, shelf lighting, LED profiles, drivers, switches, and display hardware need both visual and technical information. Glass should be recorded by size, thickness, frame detail, finish, and mounting condition. Lighting records should include the visible profile, light colour, switch location, driver location, and accessible cable route where available.
Trims, fillers and decorative parts
Fillers, end panels, crown mouldings, skirting, toe kicks, wall panels, and decorative trims often require careful records because they may be cut or adjusted on site. The final installed size can differ from an early drawing measurement.
For these components, retain photographs of the installed junction, the adjacent cabinet reference, finish information, and any final site dimensions that were confirmed during installation.
Keep Cabinet Codes, Room Codes and Drawing References
A replacement request becomes much easier when the project can be identified at cabinet level. A broad description such as “the white kitchen door” may not distinguish between several similar doors within one room, much less across a whole-home project.
Why cabinet codes matter
A cabinet code identifies a specific cabinet or component within the approved project. It can connect a visible installed piece to its dimensions, material, hardware, and drawing details. A cabinet code is more useful than a general room name because it narrows the search to the relevant unit.
Keep the final cabinet schedule and approved drawings with your project records. If a component later needs service, provide the cabinet code before describing the issue.
Why room codes matter
Room references provide important context. Similar cabinet finishes may appear in a kitchen, wardrobe, bathroom, laundry room, or living area, but the parts may have different dimensions, opening systems, or hardware.
A clear request should identify the room, cabinet code, component type, and location. For example: “Primary Bedroom, W-05, left-hand drawer front” provides much more useful information than “wardrobe drawer panel.”
Why drawing revision matters
Early concept drawings may differ from approved production drawings. A project can go through layout changes, finish adjustments, revised hardware, or later site coordination. Keep the final drawing revision number and approval date, rather than relying only on an early PDF or 3D render.
For more guidance on what to confirm before production, see the cabinet shop drawings checklist.
Record Finishes Beyond a Colour Name
A colour name alone is rarely enough to identify a cabinet finish. “White,” “oak,” “gray,” “black,” or “walnut” can describe many different materials, surface textures, gloss levels, grain directions, and edge details.
Finish code and sample reference

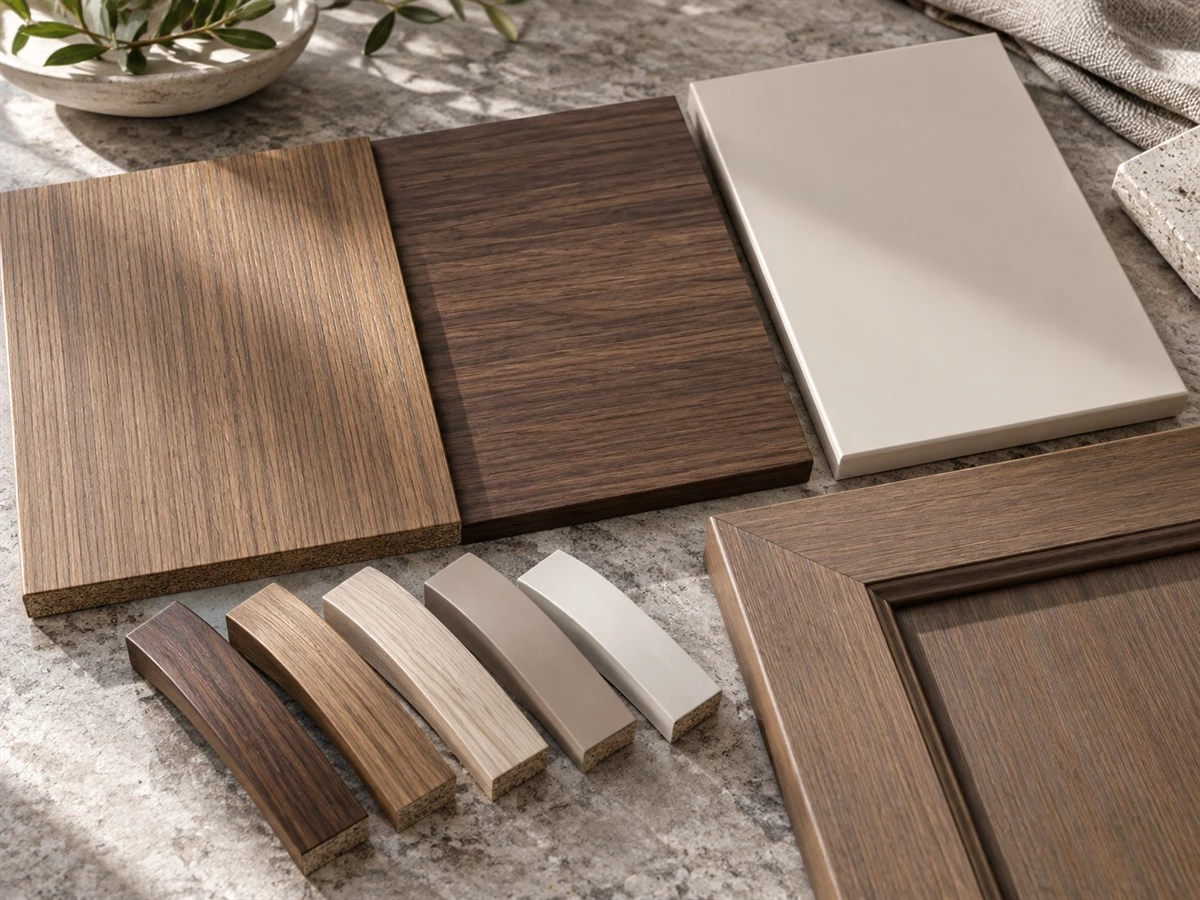

Where possible, retain the approved finish code, sample reference, material name, surface texture, sheen, edge detail, and panel type. A small retained sample can be more useful than a photograph because photographs are affected by lighting, camera settings, screen displays, and surrounding colours.
For future requests, include both the written finish reference and photographs of the installed component in context.
Wood grain and direction
Wood-look, veneer, and textured finishes may vary in grain direction and visual movement. A vertical-grain door can look noticeably different from a horizontal-grain door even when the material reference is similar.
When recording a panel, note whether the grain runs vertically or horizontally. Photograph the panel together with adjacent doors, drawer fronts, or end panels so the visual relationship can be reviewed.
Batch and ageing differences
Installed finishes can change visually through light exposure, daily use, cleaning methods, and natural material variation. A later replacement part may not appear identical to an older installed part, even when the original specification can be identified.
Good records support a more informed compatibility review, but they should not be treated as a promise of an exact visual match after time has passed.
Build a Cabinet Replacement-Part Record
A simple record can prevent a future service request from becoming a long search through old messages and photos. Keep project information, component details, visual evidence, and supporting documents in one accessible folder.
Core project information
- Project name or reference
- Installation address or project location
- Room name
- Cabinet code
- Installation or completion date
- Final drawing revision number
Component information
For every part that may need later identification, record the component type, quantity, dimensions, material, finish reference, edge treatment, opening direction, handle or hardware model, drilling condition, and cabinet interface. These details help distinguish a part that looks similar from one that can actually fit the installed cabinet.
Visual records
Take wide photographs of the room and close photographs of the component. Include the surrounding doors, drawers, trims, hardware, and adjacent panels. For a damaged item, photograph both the full cabinet and the affected area.

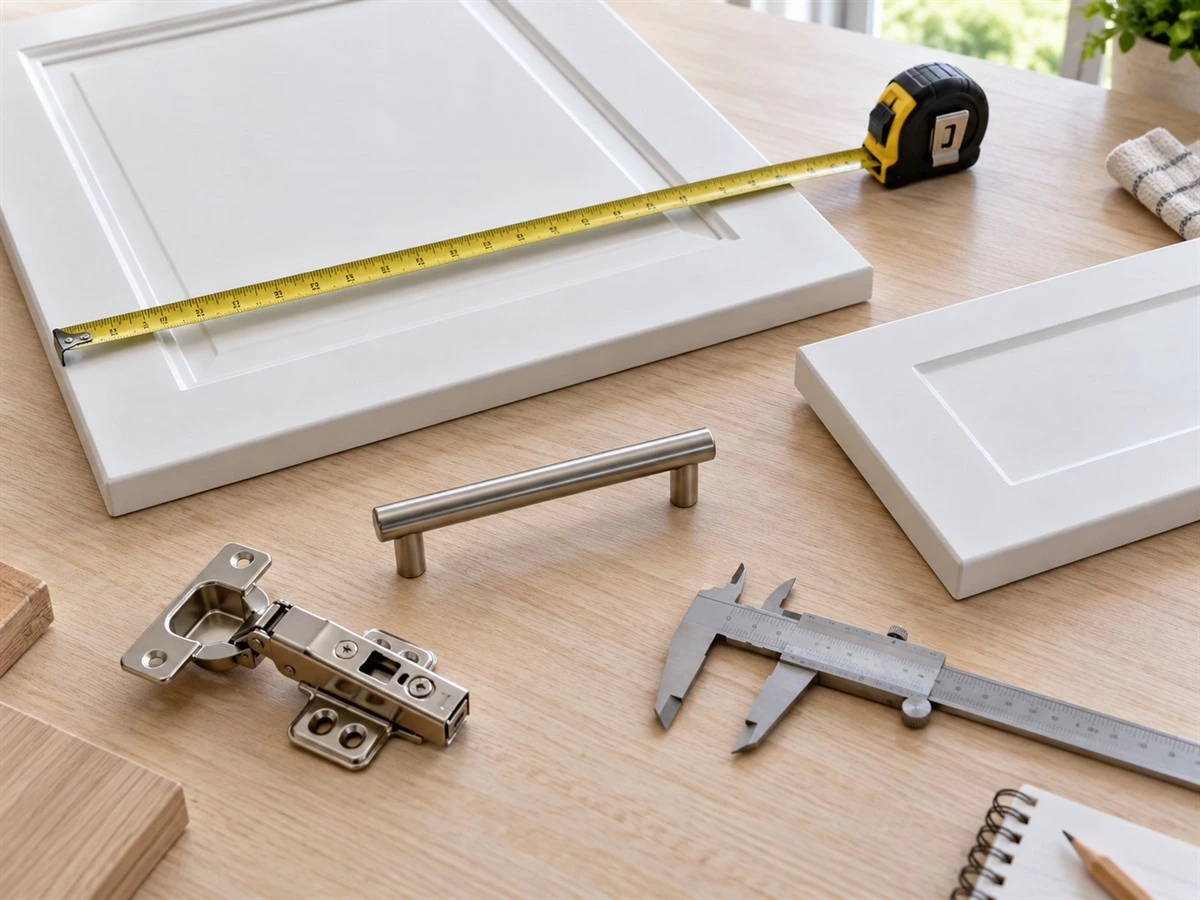

Where a measurement needs confirmation, include a clear image showing a measuring tool in position. Do not rely on a single close-up that removes the part from its cabinet context.
Supporting documents
Save final shop drawings, cabinet schedules, finish schedules, approved samples, installation photographs, delivery records, and service correspondence together. Your cabinet sample approval records can also help confirm original material and finish choices.
Why Similar Names Do Not Always Mean Compatible Parts
Same colour name, different finish
Two finishes may share a colour description while differing in material type, texture, gloss level, edge treatment, grain direction, or production variation. This is why a finish name should be supported by the approved reference, photographs, and any retained sample.
Same handle style, different drilling

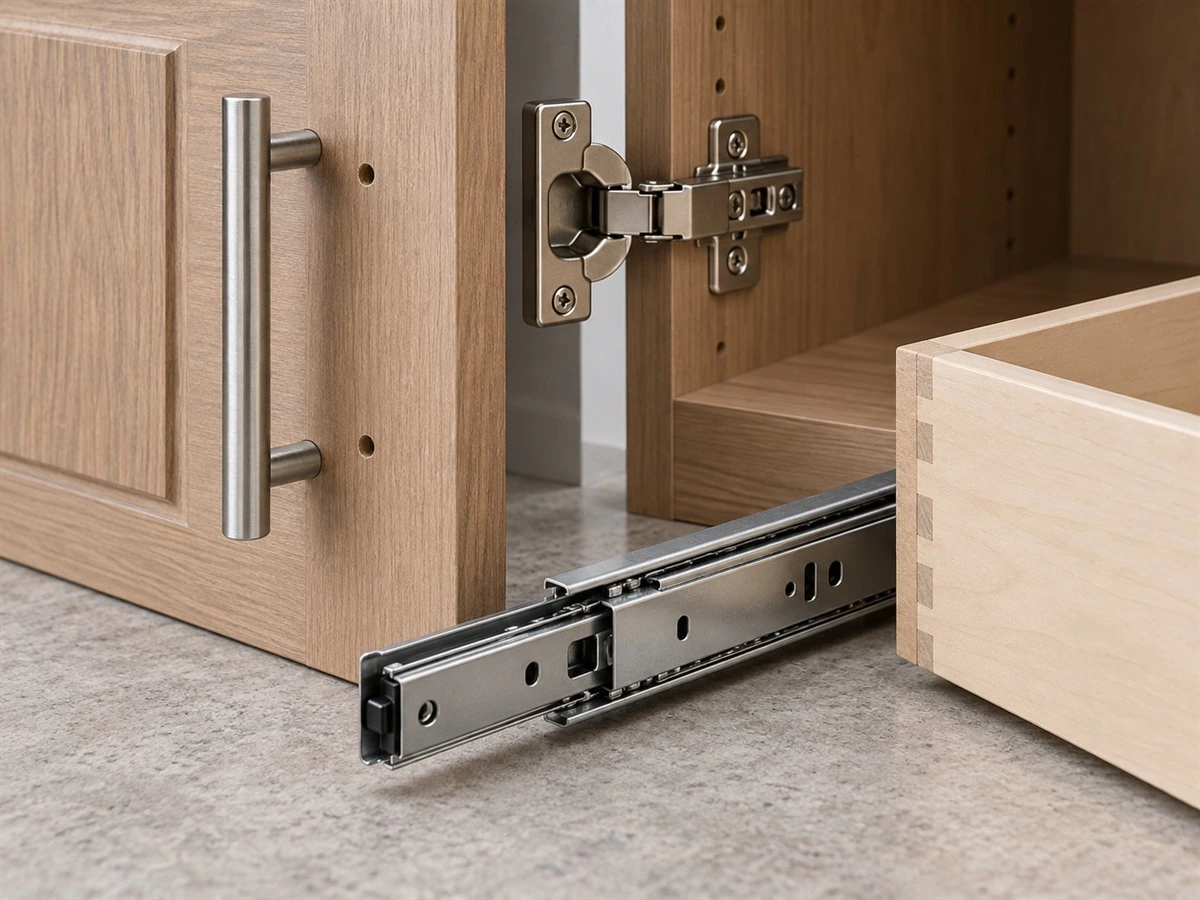

Two handles can look nearly identical but use different centre-to-centre hole spacing, overall length, fixing method, or panel thickness. Before replacing a handle, confirm existing hole spacing and check whether a replacement will cover or align with the original drilling.
Same hinge category, different mounting interface
Concealed hinges vary by opening angle, cup placement, mounting plate, cabinet construction, and door-overlay condition. A hinge should be identified from its actual installation details, not only from a general description such as “soft-close hinge.”
Confirm Measurements and Interfaces Before Ordering
Measurements are essential for replacement parts because nominal cabinet dimensions do not always match the visible or installed component. Confirm the part itself and the way it connects to the cabinet.
Door and drawer-front measurements
Record width, height, thickness, edge detail, opening direction, handle location, and drilling position. Also photograph the panel gaps and adjacent doors, because the replacement part must work within the finished cabinet layout.
Hardware measurements
For handles, record hole spacing and fixing details. For hinges, photograph the cup and mounting plate. For slides, record slide length, mounting condition, drawer-side construction, and relevant cabinet clearance.
Glass and lighting measurements
For glass, record the visible opening size, glass thickness, frame profile, and mounting detail. For lighting, record profile location, light colour, driver position, cable route, switch location, and accessible service point.
Use Installation and Service Records Properly
Installation photographs
Installation photographs can document final panel alignment, cabinet gaps, trim conditions, service access, appliance interfaces, and adjacent finishes. They are most useful when taken before appliances, furniture, and personal belongings block access to cabinet details.
Service history
Keep dates, issue descriptions, repair photographs, replaced components, and correspondence related to later service. This makes it easier to understand whether a request concerns a new problem, a previous adjustment, or a component that has already been changed.
Changes after installation
Later changes such as new handles, replacement appliances, added lighting, altered wall panels, or modified service routes can affect compatibility. Record those changes so future replacement-part checks start from the current installed condition.
For arrival-condition and missing-item evidence, retain the relevant notes from your cabinet delivery inspection checklist.
How to Report Damage or a Missing Part
A clear request helps the service team understand what needs to be reviewed. Start with the room name and cabinet code, then identify the part, describe the issue, and attach supporting evidence.
Describe the issue clearly
State whether the part is broken, scratched, missing, loose, incorrectly drilled, no longer operating, damaged in transit, or visually mismatched. Avoid a general statement such as “cabinet problem” when a specific component can be identified.
Submit useful photographs
- One full view of the cabinet in the room
- One close view of the affected component
- One view showing adjacent panels or nearby hardware
- One measurement image when size needs confirmation
- One image of a hardware label or reference, if available
Include the relevant documents
Attach the final drawing revision, cabinet schedule, finish record, hardware reference, and prior service correspondence where available. Complete evidence improves the accuracy of the assessment and helps distinguish a component from similar-looking parts elsewhere in the project.
Two Practical Tables for Future Service
Component type, required record and common risk
| Component Type | Information to Retain | Common Replacement Risk |
|---|---|---|
| Door panel | Cabinet code, size, finish, grain direction, drilling and opening direction | Finish, size or drilling mismatch |
| Drawer front | Drawer code, size, finish, handle location and edge detail | Incorrect gap, handle position or face size |
| Handle or pull | Finish, length, hole spacing and fixing method | Existing holes do not align |
| Hinge | Hinge model, plate detail, opening angle and cup position | Incorrect mounting interface |
| Drawer slide | Slide type, length, mounting detail and drawer construction | Insufficient clearance or incompatible fixing |
| Glass insert | Size, thickness, frame detail and mounting condition | Incorrect visible opening or frame fit |
| Lighting component | Profile, driver, light colour, switch and cable route | Service access or connection mismatch |
Replacement-part request form
| Request Section | Information to Include |
|---|---|
| Project information | Project reference, installation address, installation date and drawing revision |
| Cabinet information | Room name, cabinet code and component location |
| Component information | Part type, quantity, dimensions, finish, hardware and opening direction |
| Issue description | Damage, missing item, operating issue, visual concern or measurement request |
| Supporting evidence | Photos, approved drawings, finish reference, hardware reference and prior service records |
Final Thoughts
The best time to prepare for future cabinet replacement parts is while project information is still easy to collect. Keep the final drawings, room and cabinet codes, finish records, hardware details, dimensions, and installation photographs together.
Complete records improve identification and compatibility review when a service need arises. They also help distinguish between a visible finish preference, a hardware fitting issue, a damaged component, and a part that needs to be measured or reviewed in its installed context.
Frequently Asked Questions
What information is needed to request cabinet replacement parts?
Provide the project reference, room name, cabinet code, component type, dimensions, finish reference, hardware information, issue description, and clear photographs. Final drawings and approved records are also helpful.
Can a replacement cabinet door match the existing finish?
Finish records, samples, and photographs help identify the original specification, but a later replacement may differ visually because of material variation, batch differences, light exposure, and ageing of the installed finish.
How do I identify the correct cabinet hinge or drawer slide?
Record or photograph the hardware model, mounting interface, drilling position, opening angle, slide length, and cabinet or drawer construction. Similar-looking hardware is not always compatible.
Why is a cabinet code important for replacement parts?
A cabinet code connects a visible component to its approved dimensions, material, hardware, and drawing information. It is more precise than a general room description.
What photos should I provide for a damaged cabinet part?
Include a full cabinet view, close-up of the affected part, adjacent-panel or hardware view, and a measurement image where relevant. Context makes the part easier to identify.
Can a handle be replaced without changing the door panel?
It depends on the existing drilling pattern, handle spacing, panel condition, and replacement-handle fixing method. Confirm these details before selecting a replacement.
