A cabinet delivery inspection should happen before installation begins, not after damaged, missing or incorrect components have been moved through the site. When custom cabinetry arrives, the receiving team should first compare packages with the packing list, inspect outer packaging, prioritise fragile components, match cabinet codes to the approved drawings and record any visible problem with useful photographs. This cabinet delivery inspection checklist is for builders, designers, distributors, installers and homeowners who need to protect evidence, organise cabinets by room and confirm that the relevant site area is ready before components are installed.
Why Cabinet Delivery Inspection Matters Before Installation
Receiving custom cabinetry is a separate project stage. Production quality review, packing, shipping and on-site receiving all serve different purposes. A shipment may have left the factory in good order, but site teams can still face crushed cartons, handling marks, water exposure, missing packages, mixed hardware boxes or components placed in the wrong room.
A clear receiving process creates a practical handover point between delivery and installation. It helps the project team understand what arrived, what requires attention and what can be safely released for installation. It also avoids a common problem: a cabinet door or glass panel is damaged, but nobody can confirm whether the issue was visible at arrival or occurred later during site handling.
| Inspection Stage | Main Question | Useful Evidence |
|---|---|---|
| Before unloading | Does the package count match the delivery documents? | Delivery note, wide photographs of pallets and crates. |
| During unloading | Are cartons, straps, pallets and protective materials visibly intact? | Photos of damaged corners, punctures or wet packaging. |
| During unpacking | Are visible doors, panels, glass and hardware free from obvious damage? | Close-up photos, cabinet code notes and inspection records. |
| Before installation | Are the right components in the right room, with the site ready for work? | Room checklist, approved drawings and cabinet schedule. |
Important: This checklist supports project coordination and evidence collection. Delivery terms, carrier procedures, contractual inspection periods and local site-safety requirements should be confirmed for the specific project.

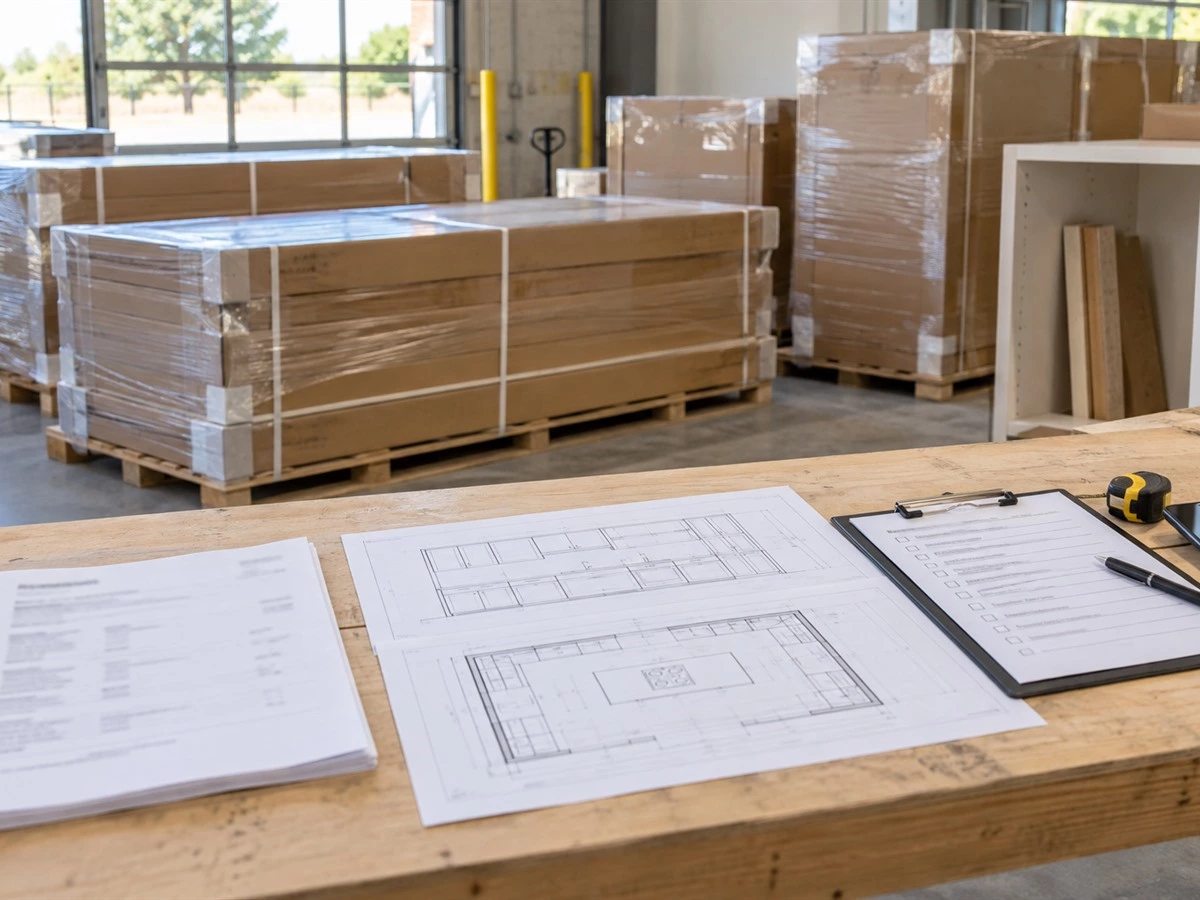

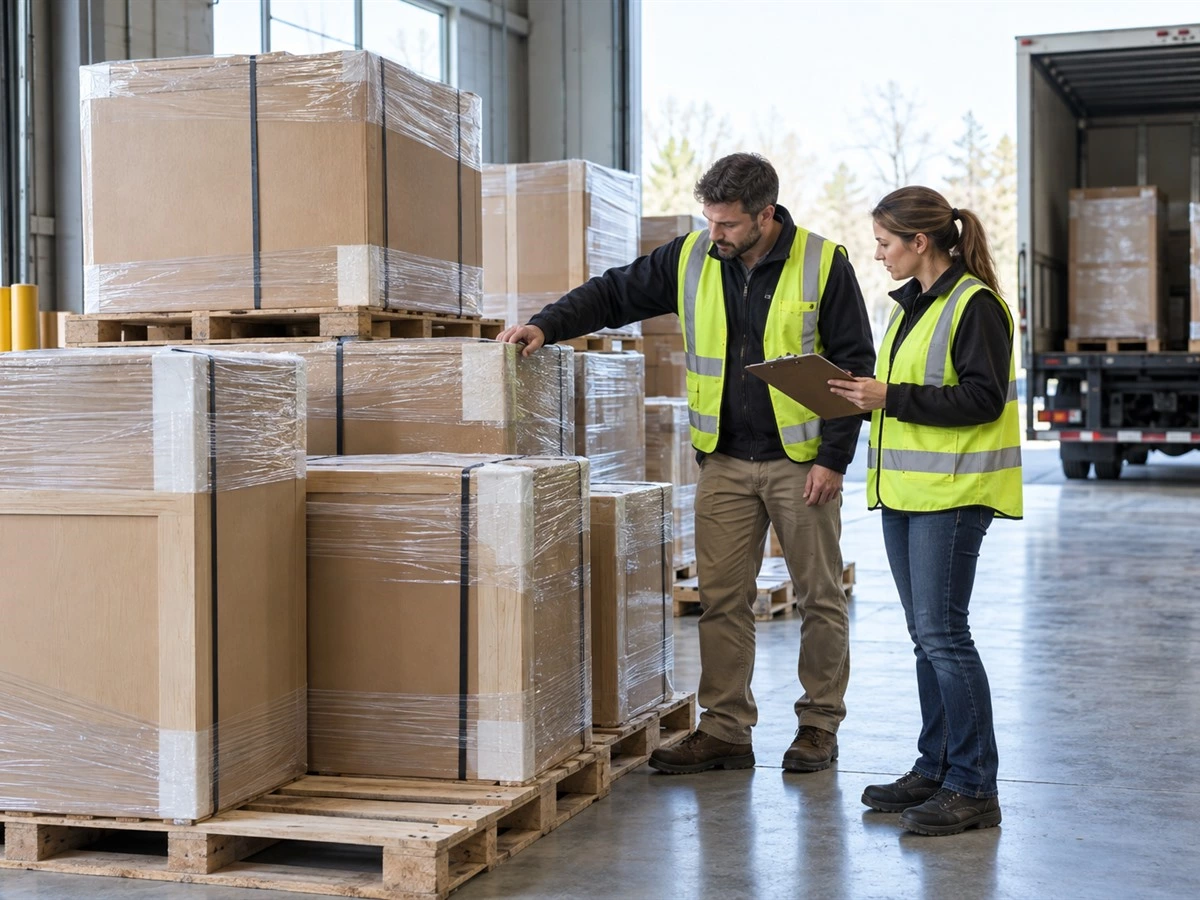

Check 1: Match the Delivery to the Packing List and Cabinet Schedule
Begin with the overall shipment, not the first cabinet door that happens to be easy to open. Count pallets, cartons, crates and separately protected components against the delivery documents. If a package number, cabinet code or room reference appears on the packaging, capture it before the package is moved into another room or removed from a pallet.
Confirm What Is Included and What Is Packed Separately
Custom cabinetry may arrive as cabinet carcasses, doors, drawer fronts, fillers, toe kicks, end panels, wall panels, open shelves and internal accessories. Small but essential components—including handles, hinges, drawer fittings, lighting parts and installation brackets—may arrive in separate cartons. Glass doors, mirrors and long finished panels may also require separate protective packaging.
Do not assume that every visible element in the design is included in the cabinet shipment. Appliances, countertops, stone splashbacks, final electrical connections and some site-installed materials may belong to other scopes. The receiving team should compare the actual delivery with the agreed packing list and cabinet schedule rather than relying only on a rendered image.
Record Missing or Unidentified Packages
- Mark a missing package as pending instead of assuming it is inside another carton.
- Keep unidentified cartons separate until their contents are confirmed.
- Record package references, quantities and room allocations where available.
- Retain the packing list with the receiving record until the project team confirms the delivery is complete.

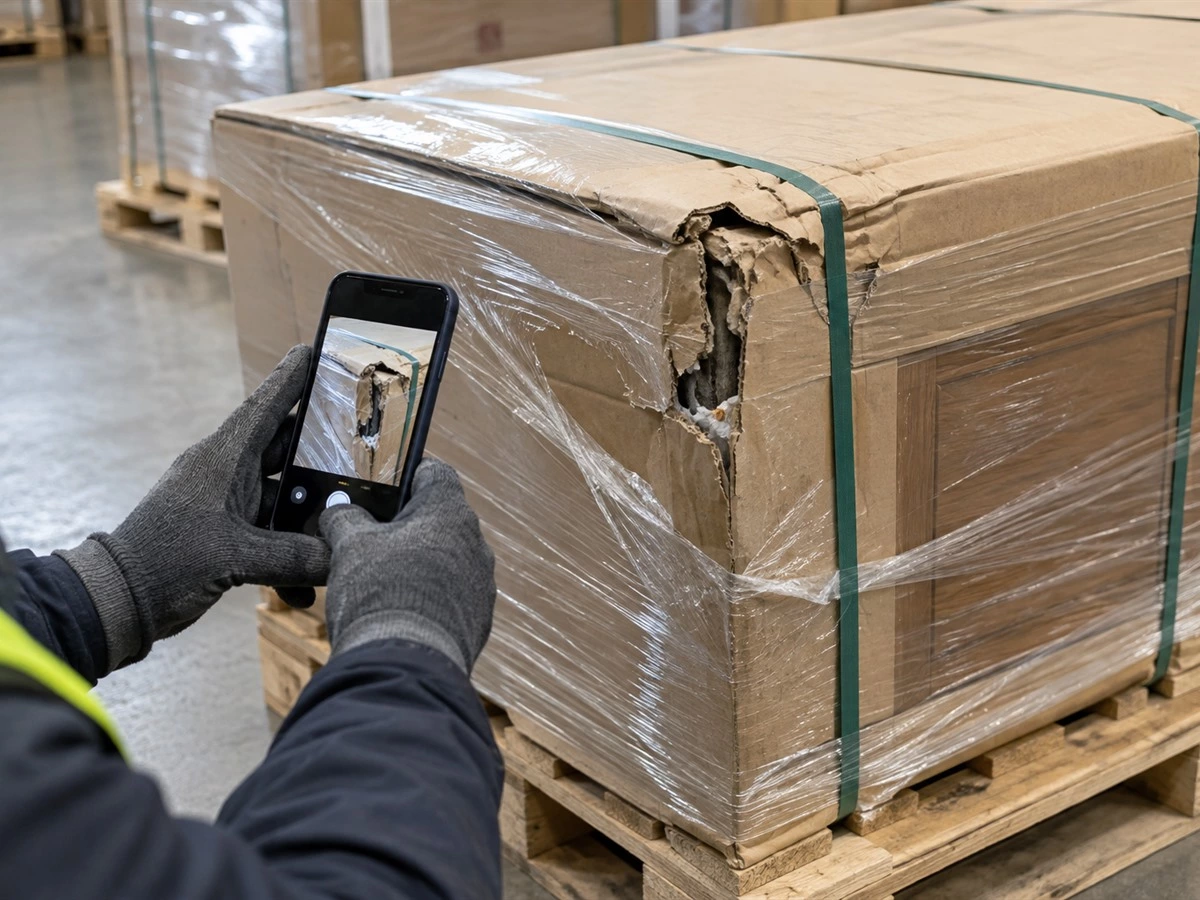

Check 2: Inspect Outer Packaging Before Opening
Outer packaging can provide important evidence about the shipment condition before internal components are moved, unpacked or mixed with other site materials. Inspect pallets, crates, cartons, straps, corner protection and wrapping for visible signs of handling problems.
Look for Visible Handling or Moisture Damage
- Crushed carton corners or broken pallet boards.
- Torn wrapping, loose straps or punctures.
- Forklift marks, pressure damage or impact marks.
- Water staining, damp cardboard or exposure to site moisture.
- Packaging that appears displaced, opened or rewrapped.
Photograph Before Repositioning or Unwrapping
Take one wide photograph showing the full pallet, crate or package group, then take closer photographs of the affected area. Where possible, include the package code or other identifying reference in the same record. This creates stronger evidence than a close-up of a damaged corner with no connection to a specific shipment item.
Do not dispose of visibly damaged packaging before the relevant project party has reviewed the record. Once packaging has been removed, rewrapped or discarded, it can become harder to establish the condition in which the shipment arrived.
Check 3: Open Fragile and High-Risk Components First
Not every package needs to be unpacked at once, but fragile or difficult-to-replace components should be prioritised. Glass doors, mirrors, long finished panels, high-gloss surfaces, large door fronts and special accessories are more vulnerable to handling damage and may be harder to inspect once the site becomes busy.
Prepare a Controlled Inspection Area
Choose a clean, dry and level area before opening delicate components. Keep protective packaging, pads or clean boards beneath finished surfaces. Avoid leaning large panels against rough walls, unfinished floors or unstable stacks of cartons. Do not place heavy materials on top of glass, door fronts or long decorative panels.
Inspect Visible Faces, Edges and Corners
Check for scratches, dents, chips, cracks, pressure marks, broken edges and damaged protective films. It is not always necessary to remove every protective layer immediately, but the visible condition of key components should be checked carefully enough to identify concerns before installation begins.
If a visible issue is found, record the cabinet code or package reference, take photographs and keep the component protected until the project team agrees on the next step.
Check 4: Verify Cabinet Codes, Room Assignment and Orientation
Cabinet delivery inspection is not only about visible damage. A correct component installed in the wrong room can still create delay, confusion and unnecessary handling. Match packages and major cabinet components to the approved cabinet schedule, room plan and relevant elevations before the installation team starts opening multiple areas.
Match Each Cabinet to the Approved Drawing Information
Use cabinet codes to connect the delivered item with its intended room and location. This is particularly useful when several rooms use similar colours or door styles. Kitchens, wardrobes, bathroom vanities, laundries and living-room cabinetry can all include cabinets that look alike but have different dimensions, hardware, left-right orientation or service requirements.
Check Left-Hand and Right-Hand Components
Mirrored cabinet units, appliance surrounds, door-opening directions, wardrobe panels and corner components should be checked before drilling hardware or removing protection. If a package is marked only for a room but not for orientation, compare it with the approved elevation or plan before it is released for installation.
Keep Room Groups Organised
- Group cabinets by room or installation zone where site space allows.
- Keep associated hardware cartons with the correct cabinet group.
- Separate kitchen, laundry, wardrobe and bathroom components.
- Use the drawing set to confirm special items before installers need them.
For a production-stage reference on cabinet codes, dimensions, revisions and drawing coordination, link readers to the Cabinet Shop Drawings guide.

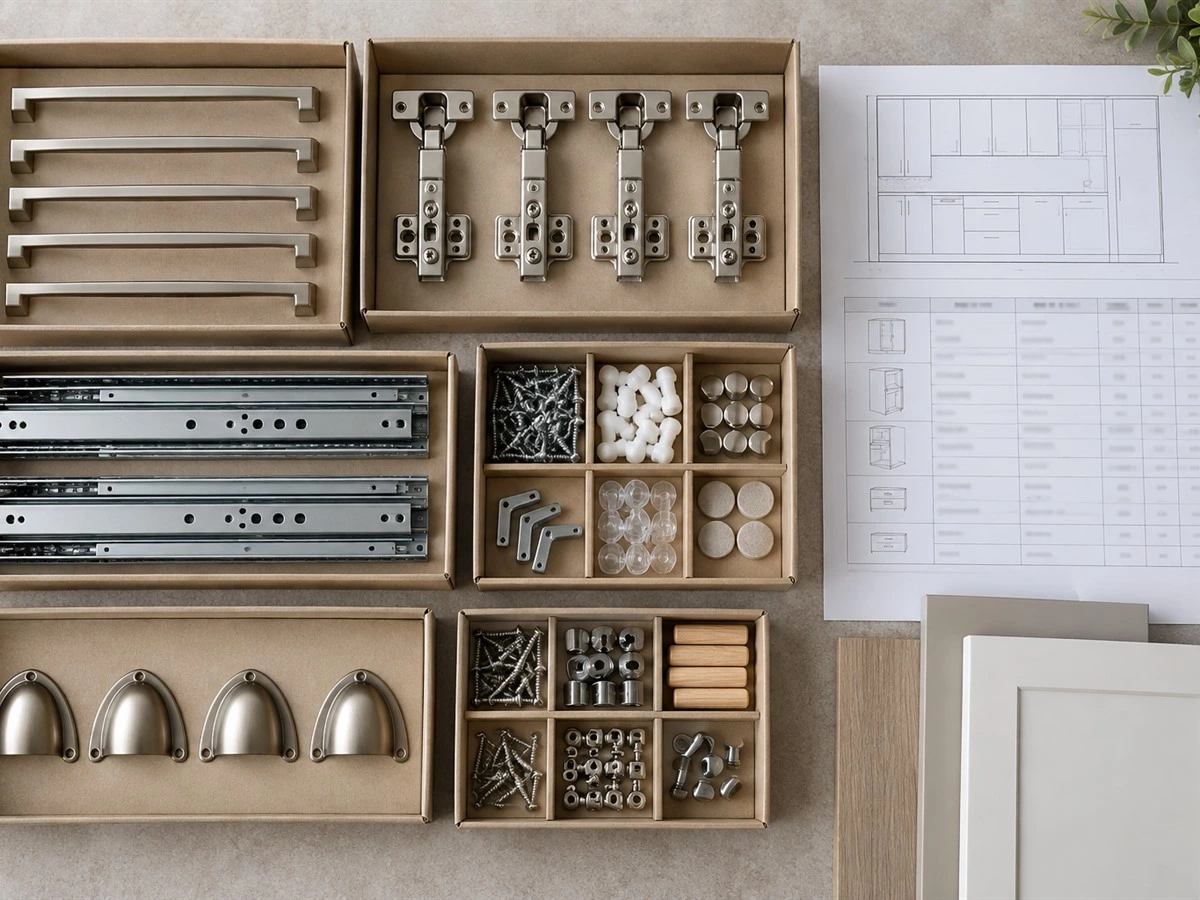

Check 5: Inspect Hardware, Accessories and Small Components
Small components are easy to overlook during delivery, but they can stop installation when they are missing, mixed between rooms or stored without protection. A cabinet may appear complete while the required handles, mounting plates, drawer fittings, shelf supports, adjustable legs, lighting connectors or special brackets are still unaccounted for.
Check Small Parts Before They Disappear Into Site Storage
Review hardware cartons against the packing list and relevant cabinet schedule. Where a project includes special storage accessories, glass hardware, lighting parts or non-standard handles, keep them clearly associated with the cabinets they serve.
Confirm Quantity and Compatibility
- Check handles and pulls for the correct finish and quantity.
- Confirm hinges, drawer runners and mounting parts are present where packed separately.
- Identify internal organisers, shelf fittings and adjustable components.
- Check lighting fixtures, drivers, connectors and sensors if they are part of the cabinet scope.
- Record missing, incorrect or unidentified small-component cartons before installation.
Hardware should not be treated as a generic extra. A missing bracket, handle or drawer component can delay a nearly complete room, especially once installers have already opened and positioned the cabinetry.

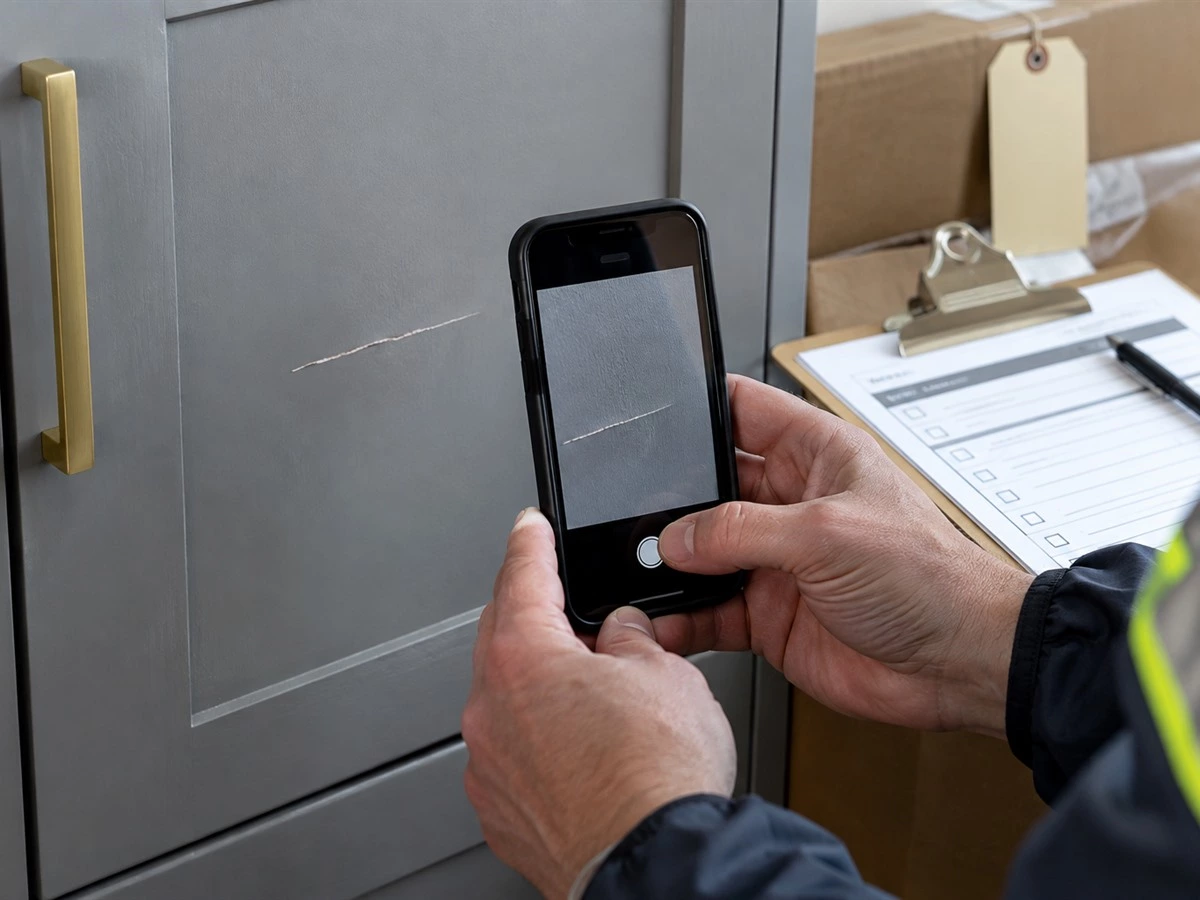

Check 6: Photograph, Label and Record Any Damage or Shortage
A useful receiving record does not need to be complex. It needs to make the issue traceable. The best records connect the affected cabinet or package with a clear description, photographs and the action required. This helps the project team avoid vague messages such as “one panel is damaged” when several similar panels are on site.
| Item | Cabinet Code or Package Reference | Condition | Action Required |
|---|---|---|---|
| Tall finished panel | Relevant package reference | Visible corner damage | Hold for project review and retain photographs. |
| Glass cabinet door | Relevant cabinet code | No visible damage | Keep protected until installation sequence begins. |
| Hardware carton | Relevant room reference | Quantity not yet confirmed | Verify against packing list and cabinet schedule. |
| Drawer front | Relevant cabinet code | Surface scratch visible | Photograph, protect and report before installation. |
Make Every Photo Useful
Take a wide photograph for context, then a close-up of the affected area. Where possible, include the package code, cabinet reference or carton label in the record. Record visible facts rather than assumptions—for example, “carton corner crushed,” “glass panel cracked” or “package not found.” The project team can then review responsibility based on the relevant evidence and delivery terms.

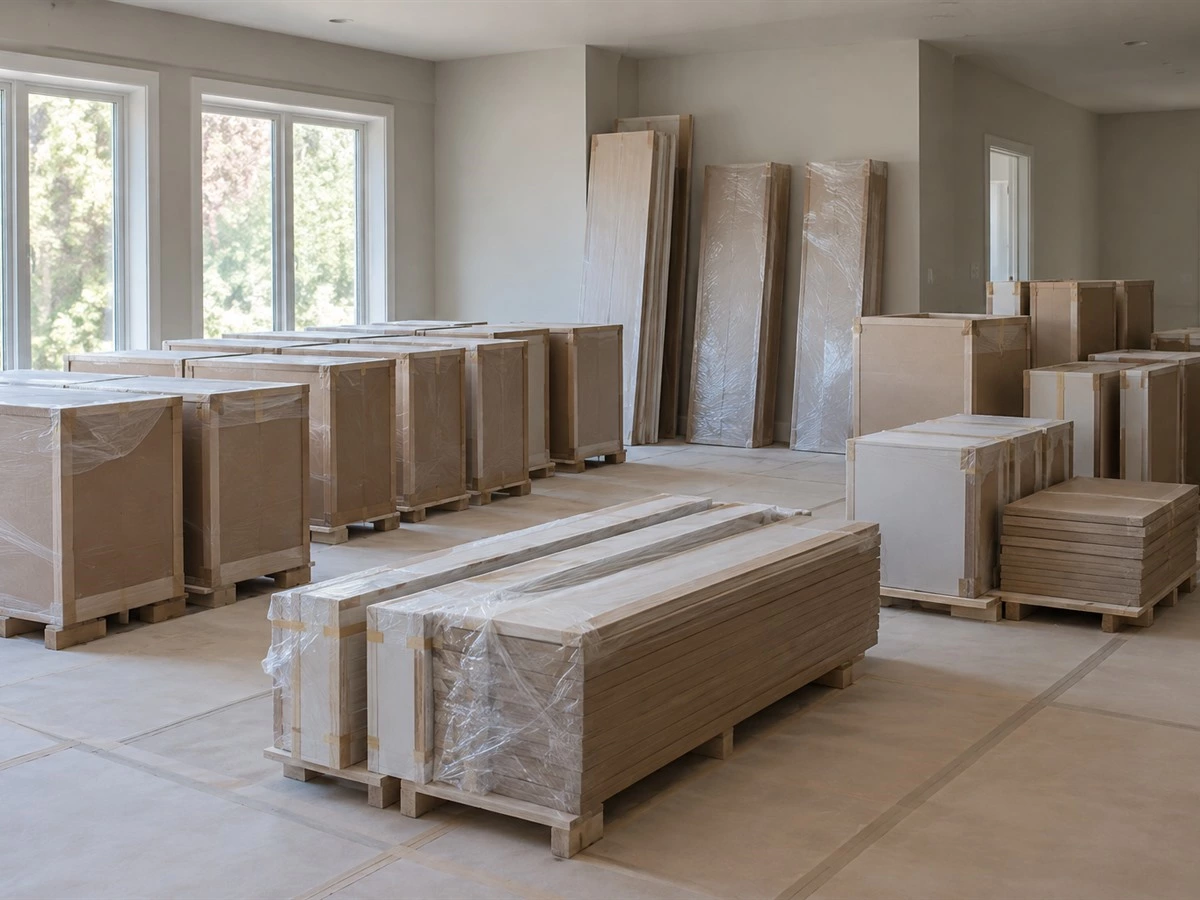

Check 7: Store Cabinets in a Safe Temporary Environment
After inspection, cabinets still need protection until installation. A delivery can be complete and undamaged at arrival but become compromised by water, repeated handling, unstable stacking or storage in an unfinished work area. The receiving plan should therefore include a safe temporary location.
Keep Cabinets Dry, Level and Protected
Store cabinetry in a clean, dry and protected area. Keep cartons away from standing water, leaks, wet trades and direct exposure to weather. Avoid placing finished components directly on rough concrete, uneven ground or locations where other trades may strike, drag or stack materials against them.
Protect Long Panels, Doors and Glass
Follow the handling guidance provided for the package and component type. Long panels, glass doors and finished fronts should be protected from bending, impact and concentrated pressure. Keep heavy materials off door fronts, finished panels and hardware cartons.
Keep Installation Components Accessible
Organise components by room so that installers do not need to repeatedly move multiple cabinet groups to locate one item. Protect clear access routes and keep cabinet codes visible where practical. Good storage reduces both accidental damage and lost time during installation.

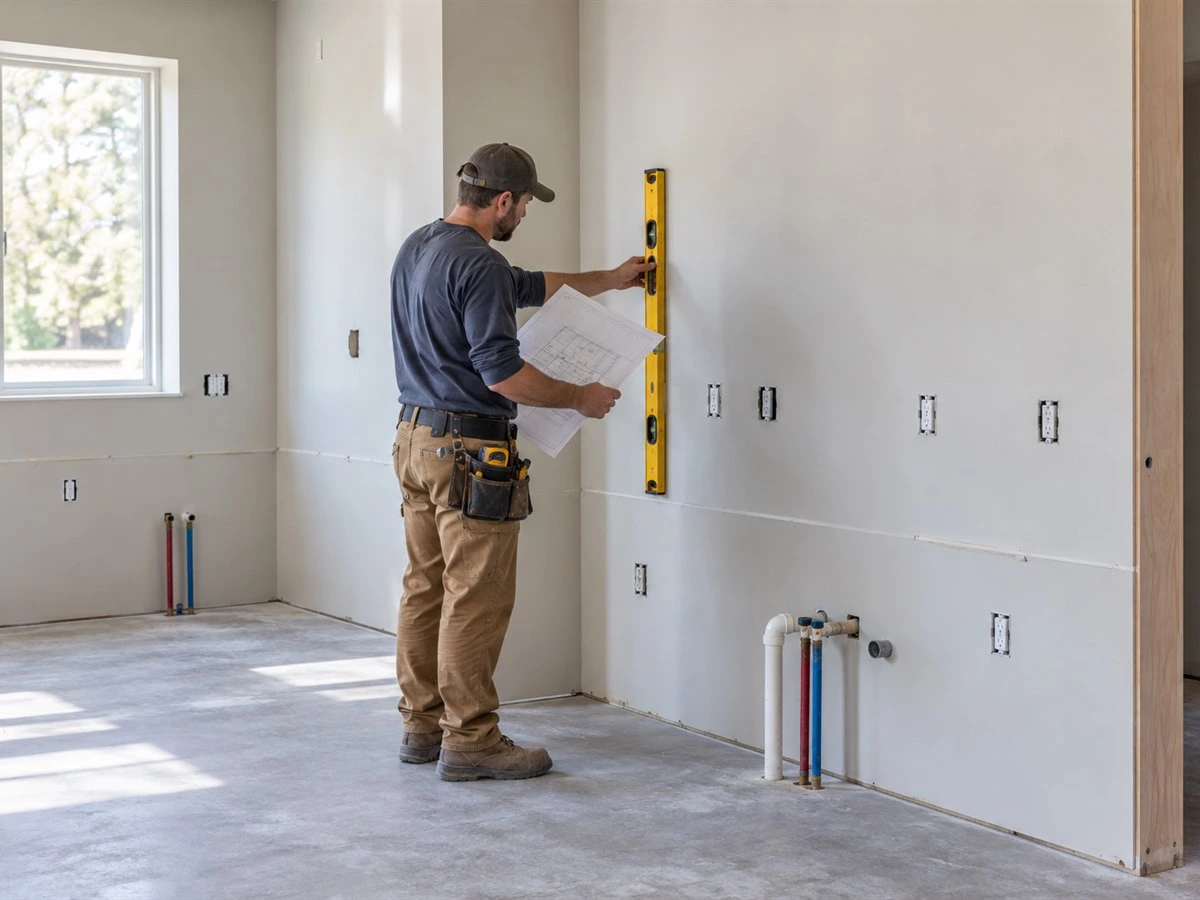

Check 8: Confirm Site Readiness Before Releasing Cabinets for Installation
Receiving a cabinet delivery does not automatically mean the site is ready for installation. Before opening every package or placing cabinets against finished walls, confirm that the relevant room is prepared and that remaining work by other trades will not expose cabinetry to avoidable damage.
Recheck the Room Against the Approved Information
Confirm that finished walls, floors, ceilings and openings remain consistent with the approved cabinet drawings. Check whether painting, tiling, stone work, ceiling work, plumbing or electrical work could still affect the cabinet installation sequence. Where appliances, countertops, wall panels or integrated lighting are involved, verify that the required interfaces are ready or clearly scheduled.
Release Cabinets in the Correct Order
- Start with rooms that are dry, accessible and ready for cabinetry.
- Keep unresolved delivery issues separate from approved installation components.
- Confirm appliance positions and key service interfaces before installing related cabinets.
- Do not remove protective packaging from every room if the installation sequence is not ready.
For material, finish, hardware and visible-detail confirmation before production, readers can also review the Cabinet Sample Approval guide. The sample approval stage confirms the intended reference; the delivery inspection stage confirms that the received components can be matched, protected and installed accordingly.
Cabinet Delivery Inspection Checklist Before Installation
- Check the delivery note, packing list and total package count.
- Photograph pallets, cartons, crates and visible packaging condition before unpacking.
- Record crushed corners, punctures, water exposure and visible transport damage.
- Prioritise glass, long panels, visible doors and special components for careful inspection.
- Match cabinet codes, room assignment and left-right orientation to the approved drawings.
- Check handles, hinges, drawer fittings, accessories and lighting components.
- Photograph and log any damage, shortage or unidentified package.
- Store cabinets dry, level, protected and organised by installation zone.
- Reconfirm site dimensions, appliances and service interfaces before installation begins.
Common Cabinet Receiving Mistakes to Avoid
Moving or Signing for Everything Before Taking Photos
Once cartons are moved, unpacked or mixed with other materials, it becomes harder to show the condition in which they arrived. Record visible packaging condition at the receiving stage.
Opening Only the Most Convenient Cartons
Prioritise glass, mirrors, long finished panels, large doors and visibly affected packages. These components may need a clearer inspection process than standard cabinet cartons.
Mixing Components From Different Rooms
Mixed room groups create avoidable confusion around cabinet codes, hardware boxes and installation sequence. Keep associated components together from receiving through installation.
Treating Visible Damage as an Installer Problem
Visible damage should be recorded before installation. The role of the receiving team is to identify, photograph and communicate the issue—not to conceal it by installing the affected component.
Using an Uncontrolled Storage Area
Cabinet packaging is protective, but it does not make components suitable for standing water, unstable stacking, rough handling or exposure to unfinished wet trades. Store cabinetry in conditions appropriate for the project stage.
Frequently Asked Questions
What should I check when a cabinet delivery arrives?
Check delivery quantities, outer packaging, cabinet codes, visible damage, fragile components, hardware cartons, accessories and the temporary storage environment before installation begins.
Should cabinets be unpacked immediately after delivery?
Priority components should be inspected promptly, especially glass, mirrors, long finished panels and visibly damaged packages. Other components can remain protected until the relevant room and installation sequence are ready.
What should I do if cabinet delivery packaging is damaged?
Photograph the package before opening, record its reference, inspect the related component carefully and share the evidence with the relevant project party according to the project’s receiving process.
How should cabinets be stored before installation?
Store cabinets in a dry, level and protected area away from standing water, unfinished wet work, impact risks and unnecessary handling. Keep room groups and cabinet codes organised.
Can cabinet installation start before every package is inspected?
Do not proceed on the assumption that every package is correct. At minimum, verify the relevant room group, cabinet codes, visible condition, required hardware and site readiness before releasing that installation area.
Inspect, Record and Protect Before Installation
A reliable cabinet delivery inspection checklist helps the project team manage the transition from shipment arrival to installation. Count packages, inspect visible condition, verify cabinet codes, document damage, protect the delivery in temporary storage and confirm that each room is ready before cabinetry is installed. This approach gives builders, buyers, designers and installers a clearer basis for resolving issues before they become finished-site problems.
